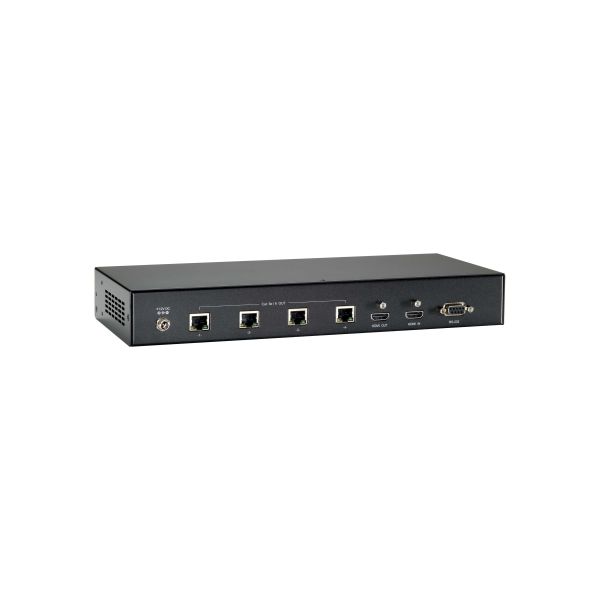

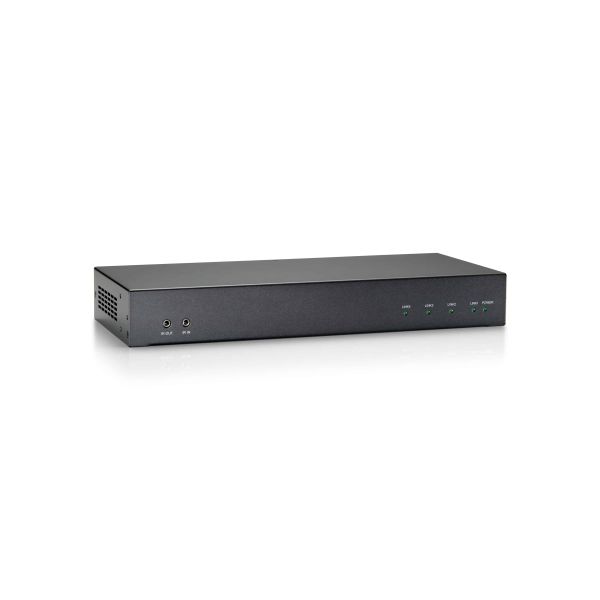

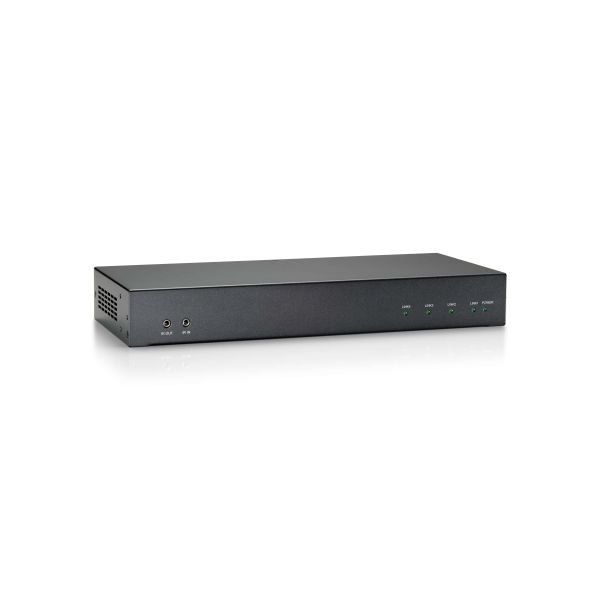

LevelOne HVE-9214T audio/video extender AV-zender Zwart

LevelOne HVE-9214T, 3840 x 2160 Pixels, AV-zender, 100 m, 3D, Zwart, HDCP

Nog 11 beschikbaar

Fabrikant LevelOne
MPN HVE-9214T
EAN 4015867193020
€ 513,00 excl. BTW

LevelOne HVE-9214T audio/video extender AV-zender Zwart

The HVE-92 series is a HDMI extension solution supports HDBaseT technology which transmits HDMI signal and multi-channel audio at resolution Ultra HD 4K x 2K (3840 x 2160 @ 30Hz) and 1080p Full HD up to 100m via Cat5e or Cat6 cable.

The series of products are embedded with EDID priority management of HDMI outputs supports EDID Hotplug refreshing function. These products also provide Bi-Directional RS-232 and IR to control the connected devices from either source or display location.

All the features are made to simplify installation and reduce costs, but at the same time providing exceptional video and audio quality. The HVE-92 series is the perfect solution for Digital Signage, trade shows, home theater installations, medical facilities, and other public exhibitions.

Key Features
- Simple Plug and Play installation
- Built-in EDID Hot Plug Detection (HPD)
- HDMI outputs with EDID management
- Transmission distance of up to 100m for HDMI(4k2k), IR and RS-232
- Bi-Directional RS-232 pass through & IR Control
- Supports video resolutions up to 3840 x 2160 (4K x 2K) @ 30Hz
- HDMI and HDCP complaint
- Supports Dolby TrueHD, DTS-HD Master Audio, Dolby Digital Plus, LPCM 7.1 audio
- Supports 3D, CEC & Lip Sync pass-through
- Screw-in power socket for added safety

Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.

Specificaties

Kenmerken

Soort*
AV-zender
Maximum resolutie*
3840 x 2160 Pixels
Ondersteundende kabel types
Cat5e, Cat6
Maximaal bereik
100 m
Audiosysteem
Multikanaal
Audio-uitgangskanalen
7.1 kanalen
Ondersteunde video-modi
720p, 1080p
Bandbreedte
10,2 Gbit/s
HDCP
Ja
Materiaal
Metaal
Kleurdiepte
36 Bit
3D
Ja
HDCP- & EDID-omzeiling
Ja
Consumer Electronics Control (CEC)-ondersteuning
Ja
Draagfrequentie
38 kHz
Baud snelheid
115,2 Kbit/s
Plug and play
Ja
Kleur van het product
Zwart

Poorten & interfaces

RJ-45 uitgang ports
4
HDMI in
1
Aantal HDMI-uitgangen
1
RS-232 ingangspoorten
1
3,5 mm in
Ja
3,5 mm-uitgang
Ja

Poorten & interfaces

Aansluiting voor netstroomadapter
Ja

Energie

Operating voltage
12 V
Stroomverbruik (zender) (max)
5000 mA
Stroom
6,6 A

Gewicht en omvang

Breedte
300 mm
Diepte
160 mm
Hoogte
44 mm
Gewicht
1,27 kg
Transmitter afmetingen (WxDxH)
300 x 160 x 44 mm
Transmitter gewicht
1,22 kg

Verpakking

Afmetingen verpakking (BxDxH)
280 x 160 x 120 mm
Breedte verpakking
280 mm
Diepte verpakking
160 mm
Hoogte verpakking
120 mm
Gewicht verpakking
2,2 kg
Type verpakking
Doos

Inhoud van de verpakking

Inclusief AC-adapter
Ja
Meegeleverde kabels
AC
Gebruikershandleiding
Ja
Afstandsbediening inbegrepen
Ja
