LevelOne IES-0600 netwerk-switch Gigabit Ethernet (10/100/1000) Zwart

LevelOne IES-0600, Gigabit Ethernet (10/100/1000), Full duplex, Ophangsysteem voor aan de muur

Ruim op voorraad

Fabrikant LevelOne
MPN IES-0600
EAN 4015867188491
€ 168,00 excl. BTW

LevelOne IES-0600 netwerk-switch Gigabit Ethernet (10/100/1000) Zwart

LevelOne IES-0600 Industry Ethernet Switch provides 4 ports 10/100/1000Base plus 2 port Gigabit SFP to enable high speed network at mission-critical environment. With the industrial standard DIN-rain mount; this switch can be easily installed in the cabinet, plus the clearly visible status LEDs provide simple monitoring of port link activity. Moreover, the SFP slots support pluggable modules that enabling you to choose from a variety of transceivers.

- 4 10/100/1000Base-T ports
- 1 Gigabit Combo + 1 Gigabit SFP(100/1G) slot
- 1000 Mbps-Full-duplex, 10/100Mbps-Full/Half-duplex,
- Auto-Negotiation, Auto-MDI/MDIX
- 40°C to 75°C (-40°F to 167°F) operating temperature range
- DIN-Rail mount installation
- Metal case design and compliant with IP30 standard

Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.

Specificaties

Poorten & interfaces

Aantal basis-switching RJ-45 Ethernet-poorten*
4
Type basis-switching RJ-45 Ethernet-poorten*
Gigabit Ethernet (10/100/1000)
Aantal moduleslots SPF
1

Netwerk

Netwerkstandaard*
IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
10G support*
Nee
Full duplex
Ja
Datastroombeheer
Ja
Auto MDI/MDI-X
Ja
Auto-negotiation
Ja

Data-uitwisseling

Switchingcapaciteit*
12 Gbit/s
MAC-adrestabel*
1024 entries
Store-and-forward
Ja
Jumbo frames
10000
Packet forwarding rate (1 Gbps)
1488000 pps
Packet forwarding rate (100 Mbps)
148000 pps
Packet forwarding rate (10 Mbps)
14880 pps
Packet buffergeheugen
1 MB

Design

Kleur van het product
Zwart
Materiaal behuizing
Metaal
LED-indicatoren
Activiteit, Link, Stroom
Internationale veiligheidscode (IP)
IP30
Ophangsysteem voor aan de muur
Ja
DIN rail bevestiging
Ja
Land van herkomst
Taiwan
Certificering
FCC Part 15 Subpart B Class A CE EN 55022 Class A EN61000-4-2 (ESD) Level 3 EN61000-4-3 (RS) Level 3 EN61000-4-4 (EFT) Level 3 EN61000-4-5 (Surge) Level 3 EN61000-4-6 (CS) Level 3 EN61000-4-8 (Magnetic Field) Level 3 UL508 (Pending) EN 50121-4 (Pending) IEC 60068-2-27 IEC 60068-2-32 IEC 60068-2-6 UL 508

Energie

Ingangsspanning
5 - 56 V
Stroomspanning bescherming
Overbelasting, Omgekeerde polariteit

Power over Ethernet (PoE)

Power over Ethernet (PoE)*
Nee

Eisen aan de omgeving

Bedrijfstemperatuur (T-T)
-40 - 75 °C
Temperatuur bij opslag
-40 - 85 °C
Relatieve vochtigheid in bedrijf (V-V)
5 - 95 procent
Luchtvochtigheid bij opslag
5 - 95 procent

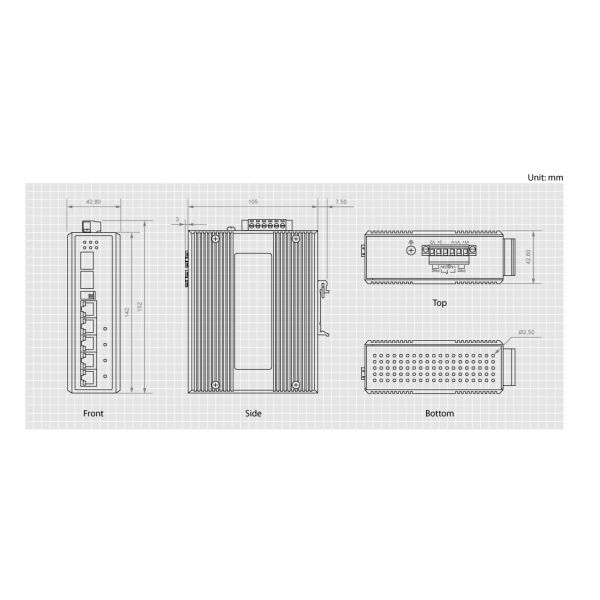

Gewicht en omvang

Breedte
40 mm
Diepte
105 mm
Hoogte
38 mm
Gewicht
720 g

Verpakking

Snelstartgids
Ja
Type verpakking
Doos
Breedte verpakking
215 mm
Diepte verpakking
165 mm
Hoogte verpakking
65 mm
Gewicht verpakking
120 g

Logistieke gegevens

Code geharmoniseerd systeem (HS)
85176990

Overige specificaties
