LevelOne IFS-0501 netwerk-switch Unmanaged Fast Ethernet (10/100) Zwart

LevelOne IFS-0501, Unmanaged, Fast Ethernet (10/100), Full duplex, Ophangsysteem voor aan de muur

Ruim op voorraad

Fabrikant LevelOne
MPN IFS-0501
EAN 4015867192283
€ 42,00 excl. BTW

LevelOne IFS-0501 netwerk-switch Unmanaged Fast Ethernet (10/100) Zwart

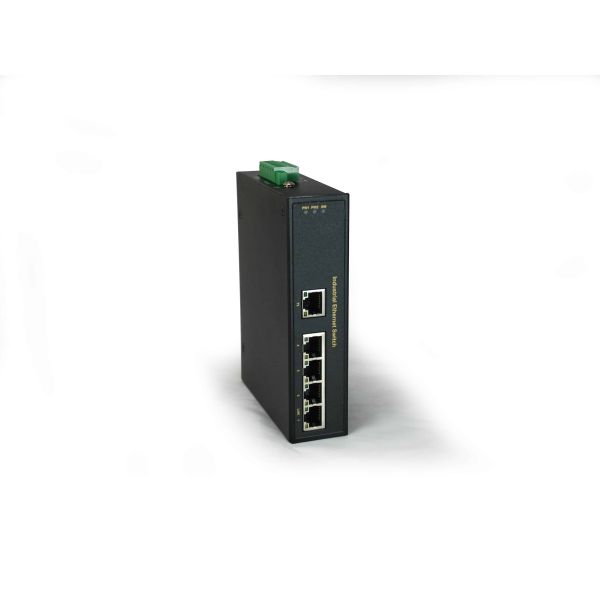

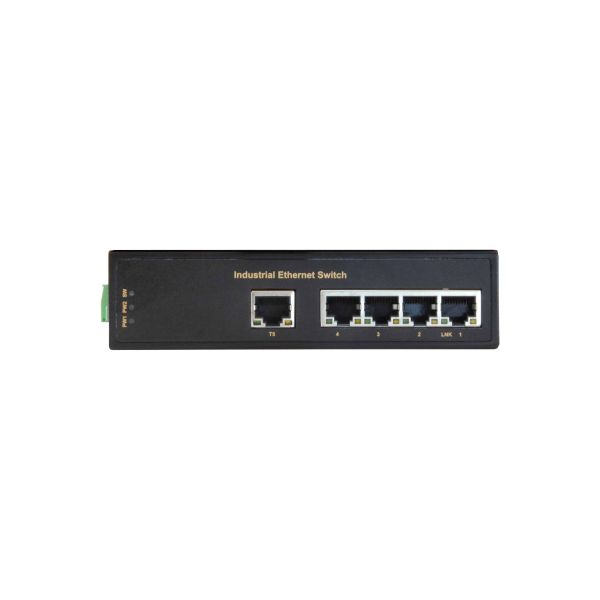

The LevelOne IFS-0501 Industrial Fast Ethernet Switch provides 5 ports at 10/100M TX to enable high speed network in mission-critical environments. With an industrial standard DIN-rail mount, this switch can be installed in a cabinet, and clearly visible status LEDs provide simple monitoring of port link activity. The switch is housed in a solid metal case rated at IP30, keeping it safe from dust, vibration, heat and humidity, while an operational temperature range of -40°C to +75°C makes it suitable for deployment in almost any environment.

Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.

Specificaties

Beheerfuncties

Switch type*
Unmanaged

Poorten & interfaces

Aantal basis-switching RJ-45 Ethernet-poorten*
5
Type basis-switching RJ-45 Ethernet-poorten*
Fast Ethernet (10/100)

Netwerk

Netwerkstandaard*
IEEE 802.3, IEEE 802.3u, IEEE 802.3x
10G support*
Nee
Koperen ethernetbekabelingstechnologie
10BASE-T, 100BASE-TX
Full duplex
Ja
Datastroombeheer
Ja
Auto MDI/MDI-X
Ja
Auto-negotiation
Ja

Data-uitwisseling

Switchingcapaciteit*
1 Gbit/s
MAC-adrestabel*
1024 entries
Store-and-forward
Ja
Packet forwarding rate (100 Mbps)
148000 pps
Packet forwarding rate (10 Mbps)
14880 pps
Packet buffergeheugen
1 MB

Design

Rack-montage*
Nee
Kleur van het product
Zwart
Materiaal behuizing
Metaal
LED-indicatoren
Link, Stroom
Internationale veiligheidscode (IP)
IP30
Ophangsysteem voor aan de muur
Ja
Land van herkomst
Taiwan
Veiligheid
EN60950-1
Certificering
FCC, CE, RoHS, VCCI EN55022/24 EN55011 EN50121-3-2 EN50121-4 (pending) EN50155 (pending) EN60068-2-6 EN60068-2-27 EN60068-2-32

Prestatie

Intern geheugen
1 MB
Maximale overdrachtssnelheid van gegevens
100 Mbit/s

Energie

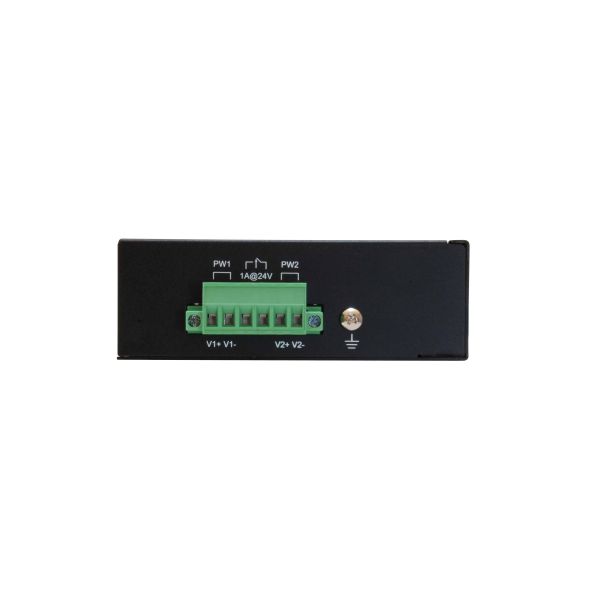

Spanning
24 V
Output current
1 A
Stroomverbruik (typisch)
3,76 W

Power over Ethernet (PoE)

Power over Ethernet (PoE)*
Nee

Eisen aan de omgeving

Bedrijfstemperatuur (T-T)
-40 - 75 °C
Temperatuur bij opslag
-40 - 85 °C
Relatieve vochtigheid in bedrijf (V-V)
5 - 95 procent
Luchtvochtigheid bij opslag
5 - 95 procent

Gewicht en omvang

Breedte
36 mm
Diepte
105 mm
Hoogte
142 mm
Gewicht
470 g

Verpakking

Snelstartgids
Ja
Wand montagekit
Ja
Klemmenblok inclusief
Ja
Type verpakking
Doos
Breedte verpakking
65 mm
Diepte verpakking
165 mm
Hoogte verpakking
215 mm
Gewicht verpakking
180 g

Logistieke gegevens

Code geharmoniseerd systeem (HS)
85176990
