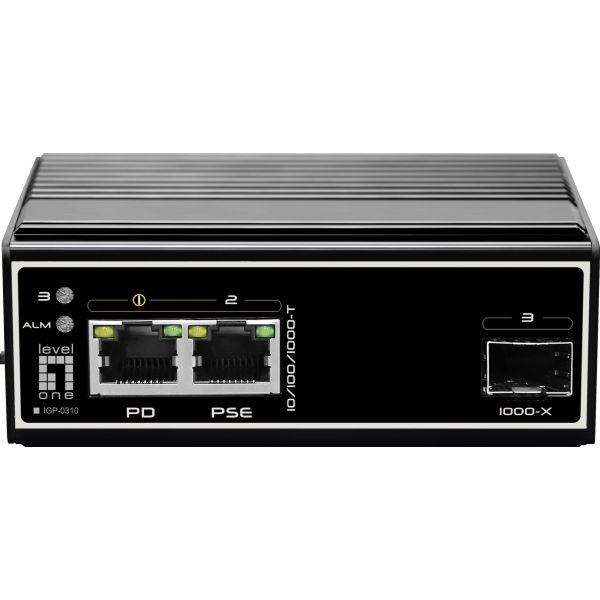

LevelOne IGP-0310 netwerk-switch Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Zwart

LevelOne IGP-0310, Gigabit Ethernet (10/100/1000), Full duplex, Power over Ethernet (PoE), Ophangsysteem voor aan de muur

Nog slechts 6 beschikbaar

Fabrikant LevelOne
MPN IGP-0310
EAN 4015867226940
€ 103,00 excl. BTW

LevelOne IGP-0310 netwerk-switch Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Zwart

LevelOne IGP-0310 Industry Ethernet Switch provides 2 PoE ports 10/100/1000Base plus 1 port SFP to enable high speed network at mission-critical environment. With the industrial standard DIN-rail mount; this switch can be easily installed in the cabinet, plus the clearly visible status LEDs provide simple monitoring of port link activity. Moreover, the SFP slots support pluggable modules that enabling you to choose from a variety of transceivers. This switch is Power Sourcing Equipment (PSE), and it is fully complied with IEEE802.3af/at PoE standard at maximum 30. It helps to save infrastructure wiring costs dramatically by eliminating electric wiring and less UPS needed. Also, it is compatible with IEEE802.3 af/at standard PD devices.
  • 1000Mbps full-duplex, 10/100Mbps full/half-duplex, auto-negotiation, auto-MDI/MDIX
  • Provides DIN-rail, wall or desktop mounting
  • IP30 metal case
  • 6KV surge protection level on each port
  • ESD and surge protection

Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.

Specificaties

Poorten & interfaces

Aantal basis-switching RJ-45 Ethernet-poorten*
2
Type basis-switching RJ-45 Ethernet-poorten*
Gigabit Ethernet (10/100/1000)
Aantal moduleslots SPF
1

Netwerk

Netwerkstandaard*
IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
10G support*
Nee
Full duplex
Ja
Half-duplex
Ja
Auto MDI/MDI-X
Ja
Ethernet LAN, data-overdrachtsnelheden
1000 Mbit/s
Auto-negotiation
Ja

Data-uitwisseling

Packet buffergeheugen
1 MB

Design

Rack-montage*
Nee
Stapelbaar*
Nee
Kleur van het product
Zwart
Materiaal behuizing
Metaal
LED-indicatoren
Link
Internationale veiligheidscode (IP)
IP30
Ophangsysteem voor aan de muur
Ja
Land van herkomst
China
Certificering
CE/FCC

Energie

Vermogenstoevoer inclusief*
Nee

Energie

DC voltage input
12 - 56 V
Stroomverbruik (typisch)
5 W
Spanningsbeveiliging
Ja
Overspanningsbeveiliging in voltage
6 kV

Power over Ethernet (PoE)

Power over Ethernet (PoE)*
Ja

Eisen aan de omgeving

Bedrijfstemperatuur (T-T)
-40 - 75 °C
Temperatuur bij opslag
-40 - 85 °C
Relatieve vochtigheid in bedrijf (V-V)
0 - 95 procent
Luchtvochtigheid bij opslag
0 - 95 procent

Gewicht en omvang

Breedte
65 mm
Diepte
35 mm
Hoogte
101 mm
Gewicht
300 g

Verpakking

Snelstartgids
Ja
Breedte verpakking
110 mm
Diepte verpakking
62 mm
Hoogte verpakking
130 mm
Gewicht verpakking
350 g

Logistieke gegevens

Code geharmoniseerd systeem (HS)
85176990
