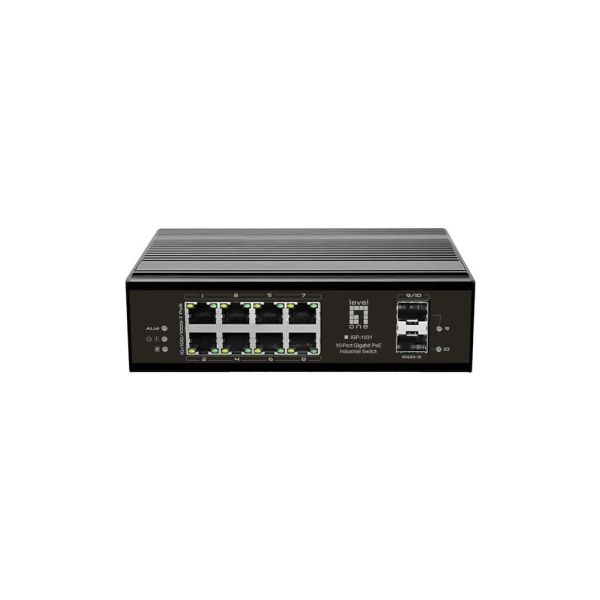

LevelOne IGP-1031 netwerk-switch Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Zwart

LevelOne IGP-1031, Gigabit Ethernet (10/100/1000), Power over Ethernet (PoE)

Nog slechts 9 beschikbaar

Fabrikant LevelOne
MPN IGP-1031
EAN 4015867223963
€ 303,00 excl. BTW

LevelOne IGP-1031 netwerk-switch Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Zwart

LevelOne IGP-1031 Industry Ethernet Switch provides 8 PoE ports 10/100/1000Base plus 2 port Gigabit SFP to enable high speed network at mission-critical environment. With the industrial standard DIN-rail mount; this switch can be easily installed in the cabinet, plus the clearly visible status LEDs provide simple monitoring of port link activity. Moreover, the SFP slots support pluggable modules that enabling you to choose from a variety of transceivers. This switch is Power Sourcing Equipment (PSE), and it is fully complied with IEEE802.3af/at PoE standard at maximum 30W each port power budget. It helps to save infrastructure wiring costs dramatically by eliminating electric wiring and less UPS needed. Also, it is compatible with IEEE802.3af standard PD devices.
  • 10/100/1000Mbps wire speed transmission and reception
  • Built-in 8 PoE ports for PoE devices
  • 8 Gigabit Ethernet ports and 2 Gigabit SFP slots
  • Connection distance of up to 250m at 10Mbps data rate
  • Supports policy-based VLAN
  • 6KV surge protection level on each port
  • ESD and surge protection

Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.

Specificaties

Poorten & interfaces

Aantal basis-switching RJ-45 Ethernet-poorten*
8
Type basis-switching RJ-45 Ethernet-poorten*
Gigabit Ethernet (10/100/1000)
Aantal Gigabit Ethernet (koper)-poorten
8
Aantal moduleslots SPF
2

Netwerk

Netwerkstandaard*
IEEE 802.1ab, IEEE 802.1af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z

Data-uitwisseling

MAC-adrestabel*
8000 entries

Design

Rack-montage*
Nee
Stapelbaar*
Nee
Kleur van het product
Zwart
LED-indicatoren
Ja
DIN rail bevestiging
Ja
Land van herkomst
China

Technische details

Pallet nettohoogte
150 cm
Pallet nettodiepte
80 cm
Pallet nettobreedte
120 cm

Energie

Vermogenstoevoer inclusief*
Nee
DC voltage input
48 - 57 V
Spanningsbeveiliging
Ja
Overspanningsbeveiliging in voltage
6 kV

Power over Ethernet (PoE)

Power over Ethernet (PoE)*
Ja
Hoeveelheid Power over Ethernet (PoE) ports
8

Eisen aan de omgeving

Bedrijfstemperatuur (T-T)
-40 - 75 °C
Temperatuur bij opslag
-40 - 85 °C
Relatieve vochtigheid in bedrijf (V-V)
0 - 95 procent
Luchtvochtigheid bij opslag
0 - 95 procent

Gewicht en omvang

Breedte
114 mm
Diepte
50 mm
Hoogte
165 mm
Gewicht
1 kg

Verpakking

Snelstartgids
Ja
Type verpakking
Doos
Breedte verpakking
181 mm
Diepte verpakking
74 mm
Hoogte verpakking
270 mm
Gewicht verpakking
1,05 kg

Logistieke gegevens

Code geharmoniseerd systeem (HS)
85176990
