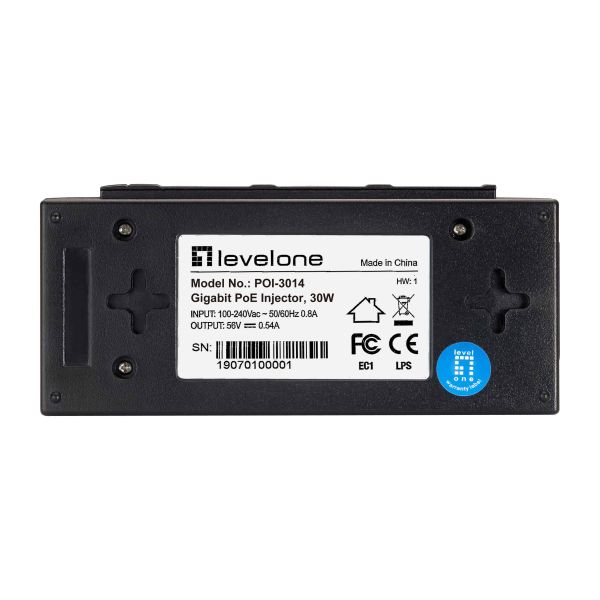

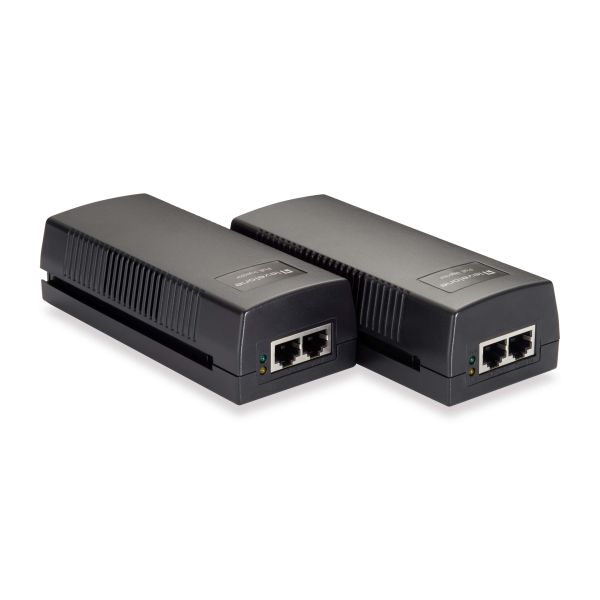

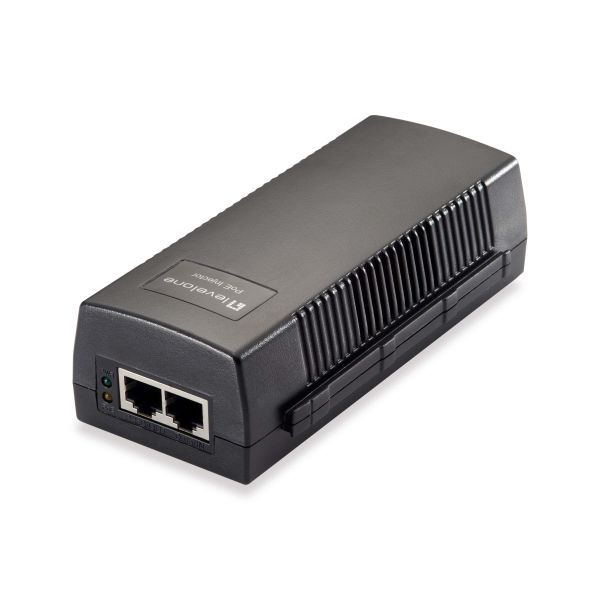

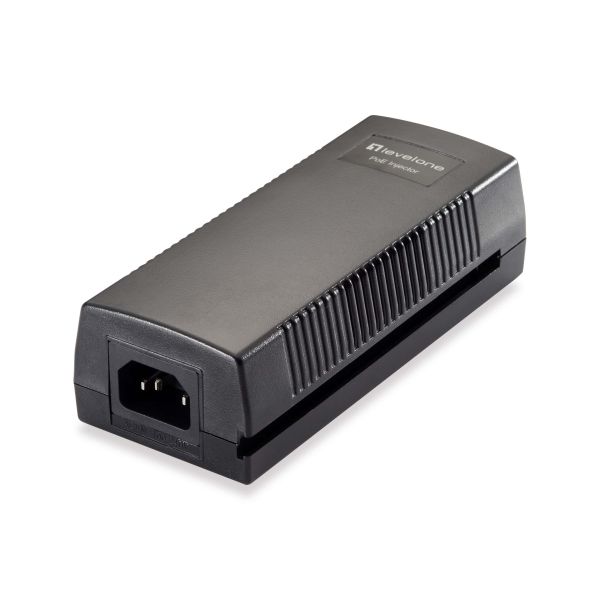

LevelOne POI-3014 PoE adapter & injector Fast Ethernet, Gigabit Ethernet 52 V
LevelOne POI-3014, Fast Ethernet, Gigabit Ethernet, 10,100,1000 Mbit/s, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, Zwart, 100 m, Power over Ethernet (PoE), Stroom
Ruim op voorraad
Fabrikant
LevelOne
MPN
POI-3014
EAN
4015867223185
€ 69,00
excl. BTW
€ 69,00
excl. BTW
excl. BTW
LevelOne POI-3014 PoE adapter & injector Fast Ethernet, Gigabit Ethernet 52 V
The LevelOne POI-3014 is a Power over Ethernet (PoE) injector that not only delivers a cost-effectivesolution for power distribution, but also provides a seamless way of deploying Powered Devices (PDs) onexisting LAN infrastructure.
With the use of power injectors, DC power of up to 30W and the data that comes from a non-PoE switchare merged together and then transmitted to a PD such as a PoE network camera, through the Ethernetcabling. This allows you to extend the use of your existing hardware investment without needing to buyextra PoE switches.
Furthermore, non-PoE devices like wireless access points can also be powered up remotely by addingadditional PoE splitters, since power and data are further split into two cables. These devices can thereforebe installed in hard-to-reach areas like ceilings where there are no outlets or electrical wiring nearby.
With the use of power injectors, DC power of up to 30W and the data that comes from a non-PoE switchare merged together and then transmitted to a PD such as a PoE network camera, through the Ethernetcabling. This allows you to extend the use of your existing hardware investment without needing to buyextra PoE switches.
Furthermore, non-PoE devices like wireless access points can also be powered up remotely by addingadditional PoE splitters, since power and data are further split into two cables. These devices can thereforebe installed in hard-to-reach areas like ceilings where there are no outlets or electrical wiring nearby.
Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.
Specificaties
Netwerk
Ethernet interface type
Fast Ethernet, Gigabit Ethernet
Ethernet LAN, data-overdrachtsnelheden
10,100,1000 Mbit/s
Power over Ethernet (PoE)
Ja
Netwerkstandaard
IEEE 802.3, IEEE 802.3ab, IEEE 802.3u
Kenmerken
Kleur van het product
Zwart
Ophangsysteem voor aan de muur
Ja
Plug and play
Ja
Spanningsbeveiliging
Ja
Maximale afstand
100 m

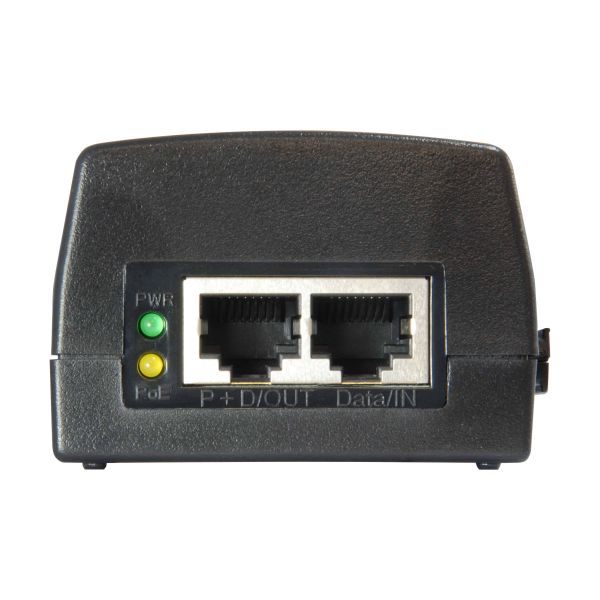

LED-indicatoren
Power over Ethernet (PoE), Stroom
Pintoewijzing & polariteit
4/5 (+), 7/8 (-)
Certificering
FCC Part 15, CE
Poorten & interfaces
Aantal Ethernet LAN (RJ-45)-poorten
2
Energie
Stroom via Ethernet (PoE)*
52 V

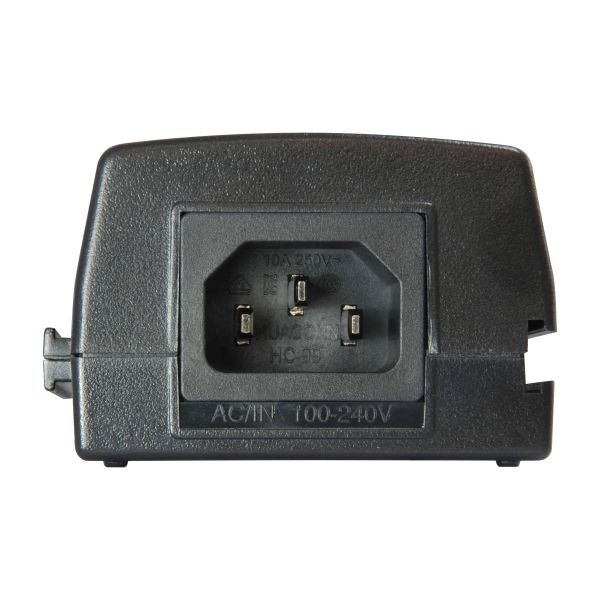

AC-adapter ingangsspanning
100 - 240 V
AC-adapterfrequentie
50/60 Hz
Stroom
0.8 A
Output current
0,6 A
Vermogensverbruik (max)
30 W
Vermogen per poort Power over Ethernet (PoE)
30 W
Eisen aan de omgeving
Bedrijfstemperatuur (T-T)
0 - 45 °C
Relatieve vochtigheid in bedrijf (V-V)
5 - 95 procent
Temperatuur bij opslag
0 - 70 °C
Luchtvochtigheid bij opslag
5 - 95 procent
Gewicht en omvang
Breedte
145,7 mm
Diepte
64,4 mm
Hoogte
43,4 mm
Gewicht
350 g
Verpakking
Breedte verpakking
210 mm
Diepte verpakking
145 mm
Hoogte verpakking
55 mm
Gewicht verpakking
400 g
Inhoud van de verpakking
Aantal producten inbegrepen
1 stuk(s)
Snelle installatiehandleiding
Ja
Technische details
Duurzaamheidscertificaten
RoHS
Logistieke gegevens
Code geharmoniseerd systeem (HS)
85044095
