LevelOne SFP-4200, Vezel-optiek, 1250 Mbit/s, SFP, LC, 550 m, 850 nm

Nog 10 beschikbaar

Fabrikant LevelOne
MPN SFP-4200
EAN 4015867224441

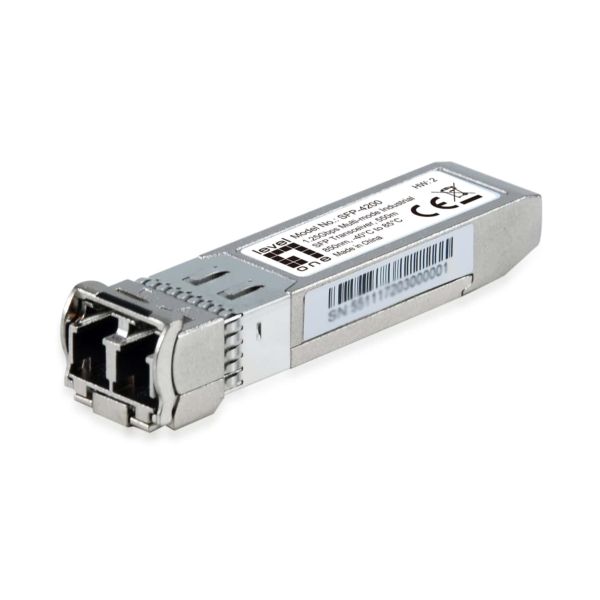

LevelOne SFP-4200 netwerk transceiver module Vezel-optiek 1250 Mbit/s 850 nm

The levelOne SFP-4200 is a high performance and cost-effective multi-mode SFP transceiver. Intended for use with Gigabit Ethernet, it provides up to 1.25 Gbps bi-directional data transfer rate on a single duplex fiber core. For use with 50 and 125 micron fiber cables, it can reach a distance of up to 550 meters. The SFP-4200 transceiver operates using a wavelength of 850nm with a VCSEL Laser Diode light source and has an LC port. This Hot-swappable SFP transceiver offers the latest Industrial standard in full-duplex Ethernet connectivity and withstand under wide range temperature operation.
  • "1000Base-SX Multi-mode fiber for the link up to 550m
  • Supports Digital Diagnostics Monitoring (DDM) for easy status monitoring
  • Provides duplex LC connector
  • Hot-swappable providing non-stop service
  • RoHS compliant and Lead Free
  • Low EMI with metal housing
  • Compatible with SFP Multi-Sourcing Agreement (MSA) standards"

Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.

Specificaties

Prestatie

SFP transceiver type*
Vezel-optiek
Maximale overdrachtssnelheid van gegevens*
1250 Mbit/s
Soort aansluiting*
SFP
Multi-mode glasvezelkabel (MMF) ondersteund
Ja
Vezel-optische connector
LC
Maximaal bereik
550 m
Golflengte
850 nm
Tx vermogen (min)
-10 dBmW
Tx vermogen (max)
4 dBmW
Netwerkstandaard
IEEE 802.3z
Duplex systeem
Volledig

Kenmerken

Hot-swap
Ja
Certificering
CE, FCC

Eisen aan de omgeving

Bedrijfstemperatuur (T-T)
-40 - 70 °C
Temperatuur bij opslag
5 - 70 °C
Relatieve vochtigheid in bedrijf (V-V)
5 - 85 procent

Eisen aan de omgeving

Luchtvochtigheid bij opslag
5 - 95 procent

Gewicht en omvang

Breedte
14 mm
Diepte
57 mm
Hoogte
12 mm
Gewicht
20 g

Verpakking

Aantal producten inbegrepen
1 stuk(s)
Breedte verpakking
65 mm
Diepte verpakking
106 mm
Hoogte verpakking
20 mm
Gewicht verpakking
40 g

Technische details

Duurzaamheidscertificaten
RoHS

Logistieke gegevens

Code geharmoniseerd systeem (HS)
85369010
