LevelOne USB-0402, Bedraad, USB Type-C, Ethernet, 1000 Mbit/s, Zilver, Wit

Ruim op voorraad

Fabrikant LevelOne
MPN USB-0402
EAN 4015867202371

LevelOne USB-0402 Ethernet 1000 Mbit/s

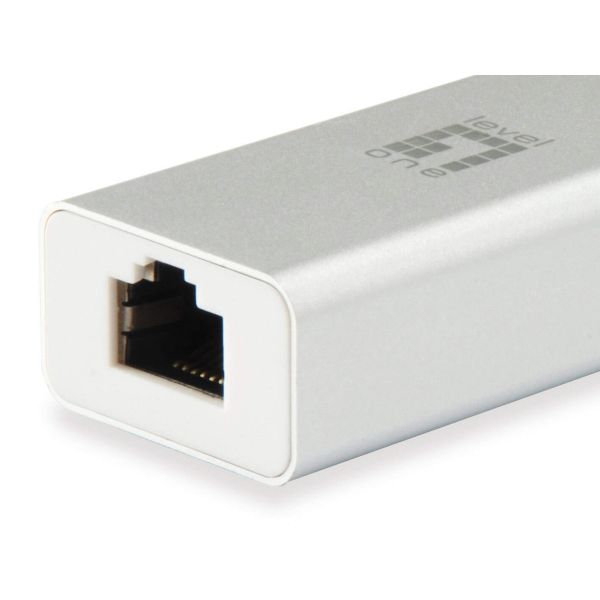

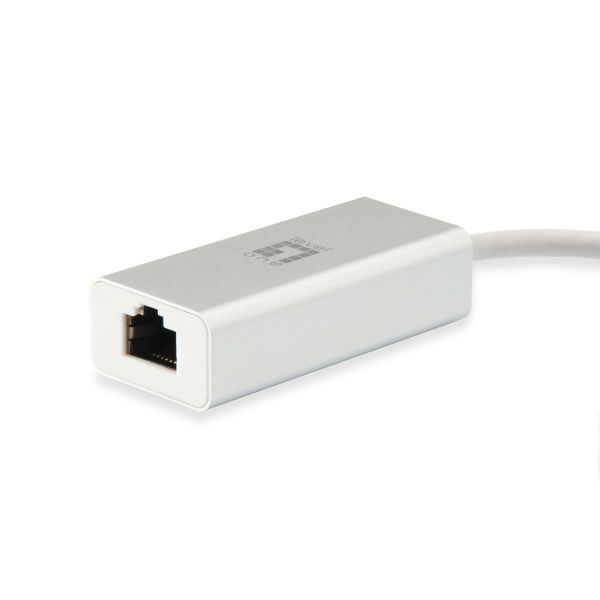

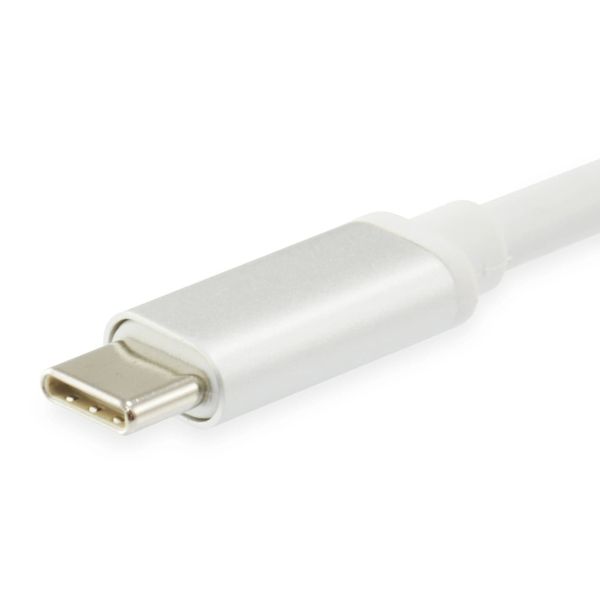

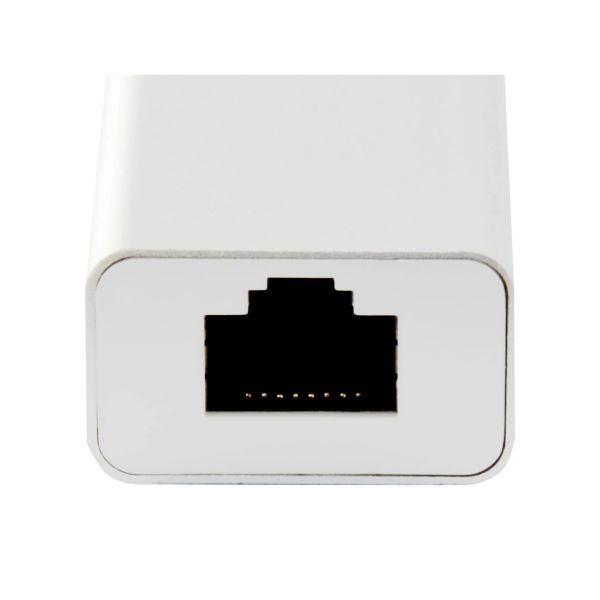

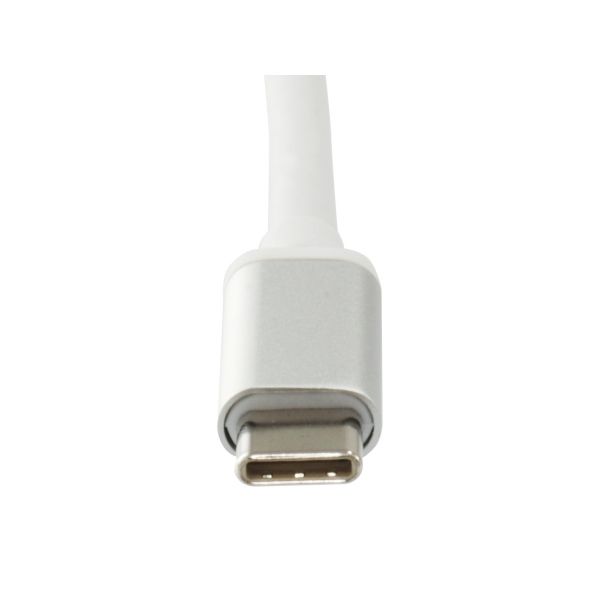

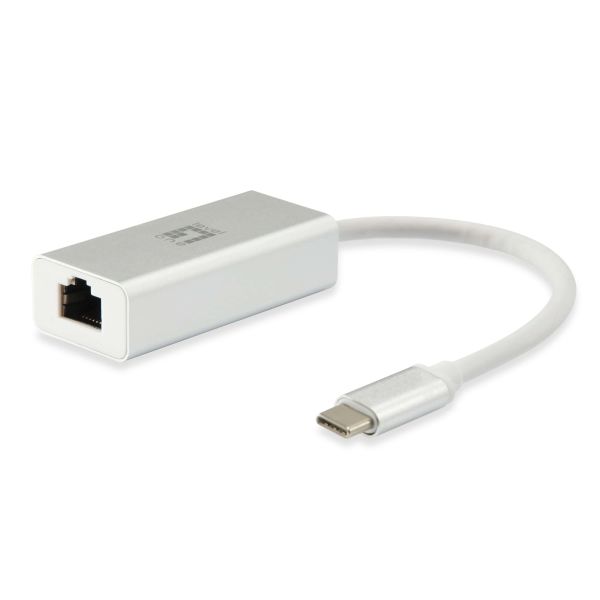

The LevelOne USB-0402 is a Gigabit USB type C Network Adapter that enables desktop and notebook computers with high-speed Gigabit network connectivity via the USB port. This is an ideal solution for MacBook or other Windows computers that may have wireless built-in but don’t come with an Ethernet port when physical connection to a network is needed.

The USB-0402 is USB 1.0/2.0, 3.0, and 3.1 compliant. It also follows the Ethernet standards set by the IEEE 802.3/3u and 802.3ab, allowing you to take advantage of Gigabit Ethernet speeds of up to 1000Mbps. This provides a strong backbone for any high-speed broadband connection to the internet as well as fast speeds for the Local Area Network file transfers.

Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.

Specificaties

Poorten & interfaces

Connectiviteitstechnologie*
Bedraad
Hostinterface*
USB Type-C
Interface*
Ethernet
Aantal Ethernet LAN (RJ-45)-poorten
1
USB-versie
3.2 Gen 2 (3.1 Gen 2)

Netwerk

Maximale overdrachtssnelheid van gegevens*
1000 Mbit/s
Netwerkstandaard*
IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x
Ethernet LAN
Ja
Ethernet interface type
Gigabit Ethernet
Ethernet LAN, data-overdrachtsnelheden
10,100,1000 Mbit/s
Bekabelingstechnologie
10/100/1000BaseT(X)
Koperen ethernetbekabelingstechnologie
10BASE-T, 100BASE-TX, 1000BASE-T
Wake-on-LAN
Ja
Auto MDIX IEEE
Ja
Full duplex
Ja
Jumbo Frames ondersteuning
Ja
Jumbo frames
9000
Ondersteunde netwerkprotocollen
IPv4/IPv6

Design

Kleur van het product
Zilver, Wit
Intern*
Nee
Land van herkomst
China
Certificering
CE

Energie

Stroom
3 A
Spanning
5 V
Stroomverbruik (typisch)
2 W
Stroomvoorziening via USB
Ja

Minimale systeemeisen

Ondersteunt Windows
Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows Vista, Windows Vista Business, Windows Vista Business x64, Windows Vista Enterprise, Windows Vista Enterprise x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64

Minimale systeemeisen

Ondersteunt Mac-besturingssysteem
Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks

Eisen aan de omgeving

Bedrijfstemperatuur (T-T)
10 - 40 °C
Temperatuur bij opslag
10 - 70 °C
Relatieve vochtigheid in bedrijf (V-V)
0 - 85 procent
Luchtvochtigheid bij opslag
0 - 85 procent

Duurzaamheid

Duurzaamheidscertificaten
RoHS

Gewicht en omvang

Breedte
28,5 mm
Diepte
17,5 mm
Hoogte
217 mm
Gewicht
26 g

Verpakking

Type verpakking
Doos
Breedte verpakking
90 mm
Diepte verpakking
26 mm
Hoogte verpakking
212 mm
Gewicht verpakking
33 g

Inhoud van de verpakking

Snelle installatiehandleiding
Ja

Logistieke gegevens

(Buitenste) hoofdverpakking breedte
390 mm
(Buitenste) hoofdverpakking lengte
280 mm
(Buitenste) hoofdverpakking hoogte
540 mm
(Buitenste) hoofdverpakking brutogewicht
7,7 kg
Hoeveelheid per (buitenste) hoofdverpakking
120 stuk(s)

Overige specificaties

Datastroombeheer
Ja
