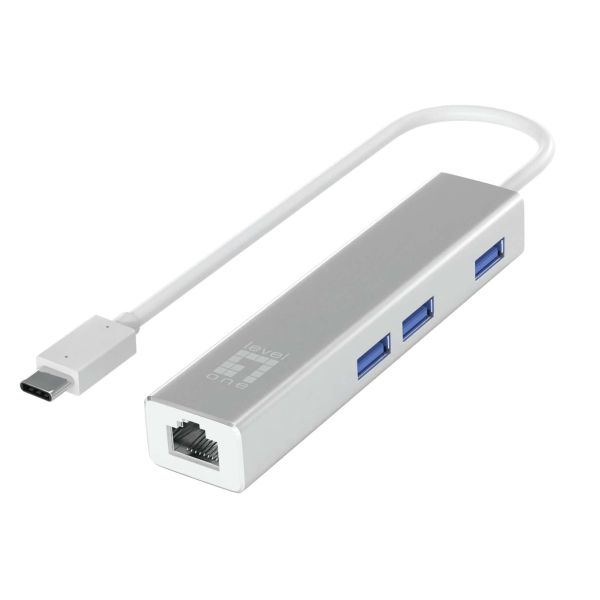

LevelOne USB-0504, Bedraad, USB Type-C, Ethernet, 1000 Mbit/s, Zilver

Ruim op voorraad

Fabrikant LevelOne
MPN USB-0504 V4
EAN 4015867226681

LevelOne USB-0504 netwerkkaart Ethernet 1000 Mbit/s

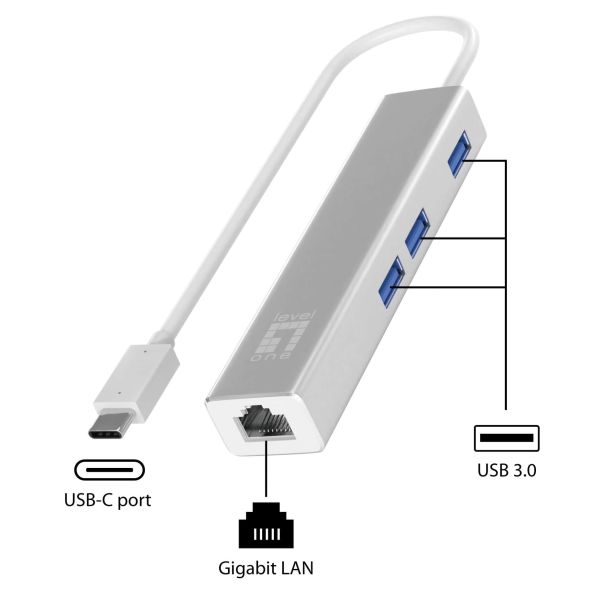

The LevelOne USB-C Hub and Gigabit Ethernet Combo Adapter allows you to connect to the internet easily through the built-in USB-C port on your laptop. This is an ideal solution for MacBook or other Windows computers that may have wireless built-in but don’t come with an Ethernet port. Sometimes you need to physically connect to a network cable to help transfer files or access secure information. The USB-0504 easily does the job, all through your USB-C port. The USB-0504 also combines a regular USB hub. So you can connect external USB peripherals, such as a digital camera, printer or pen drive. The USB-0504 establishes a direct point-to-point contact between the hub and the adapter that plugged into your PC.

The USB-0504 is USB 1.0, 2.0, and 3.0 compliant. It also follows the Ethernet standards set by the IEEE 802.3/3u and 802.3ab, allowing you to take advantage of Gigabit Ethernet speeds of up to 1000Mbps. This provides a strong backbone for any high-speed broadband connection to the internet as well as fast speeds for the Local Area Network file transfers.

This makes the USB-0504 the best choice for reliability, efficiency and standard compliance.
  • 10/100/1000Mbps wire speed transmission and reception
  • USB 3.0 SuperSpeed (5Gb/s)
  • Add 3 x USB 3.0 ports to your USB Type-C devices
  • Multi-platform support: Windows, Mac OS
  • Built-in Wake-on-LAN feature to startup computers remotely
  • Simple Plug and Play installation, no additional power supply required

Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.

Specificaties

Poorten & interfaces

Connectiviteitstechnologie*
Bedraad
Hostinterface*
USB Type-C
Interface*
Ethernet
Aantal Ethernet LAN (RJ-45)-poorten
1
Aantal USB-aansluitingen
3
USB-versie
3.2 Gen 1 (3.1 Gen 1)

Netwerk

Maximale overdrachtssnelheid van gegevens*
1000 Mbit/s
Netwerkstandaard*
IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x
Ethernet LAN
Ja
Ethernet interface type
Gigabit Ethernet
Ethernet LAN, data-overdrachtsnelheden
1000 Mbit/s
Bekabelingstechnologie
10/100/1000BaseT(X)
Wake-on-LAN
Ja
Full duplex
Ja

Design

Component voor*
PC/Laptop
Kleur van het product
Zilver
Intern*
Nee
Chipset
Realtek RTL8153
Plug and play
Ja
Land van herkomst
China

Energie

Stroomvoorziening via USB
Ja

Minimale systeemeisen

Ondersteunt Windows
Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows Vista, Windows Vista Business, Windows Vista Business x64, Windows Vista Enterprise, Windows Vista Enterprise x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64, Windows Vista x64, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64
Ondersteunt Mac-besturingssysteem
Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 10.15.3 Catalina, Mac OS X 10.9 Mavericks

Eisen aan de omgeving

Bedrijfstemperatuur (T-T)
0 - 40 °C
Temperatuur bij opslag
-5 - 80 °C
Relatieve vochtigheid in bedrijf (V-V)
0 - 85 procent
Luchtvochtigheid bij opslag
0 - 85 procent

Duurzaamheid

Duurzaamheidscertificaten
CE, RoHS

Gewicht en omvang

Breedte
110 mm
Diepte
23,5 mm
Hoogte
16,5 mm
Gewicht
44 g

Verpakking

Breedte verpakking
71 mm
Diepte verpakking
20 mm
Hoogte verpakking
152 mm
Gewicht verpakking
64 g

Inhoud van de verpakking

Snelle installatiehandleiding
Ja
