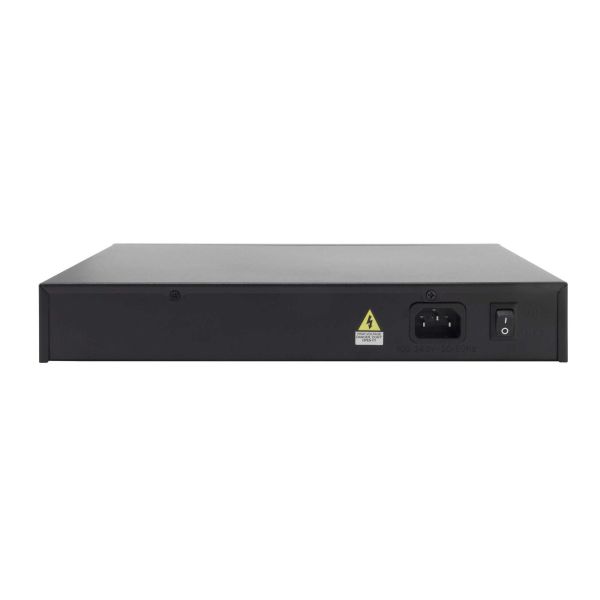

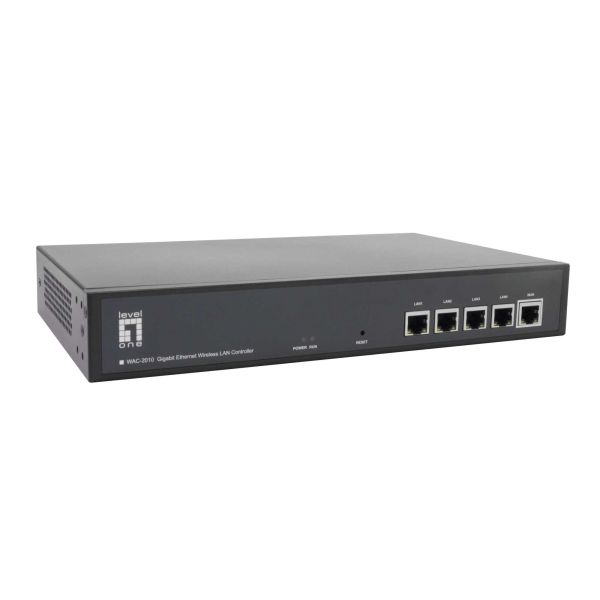

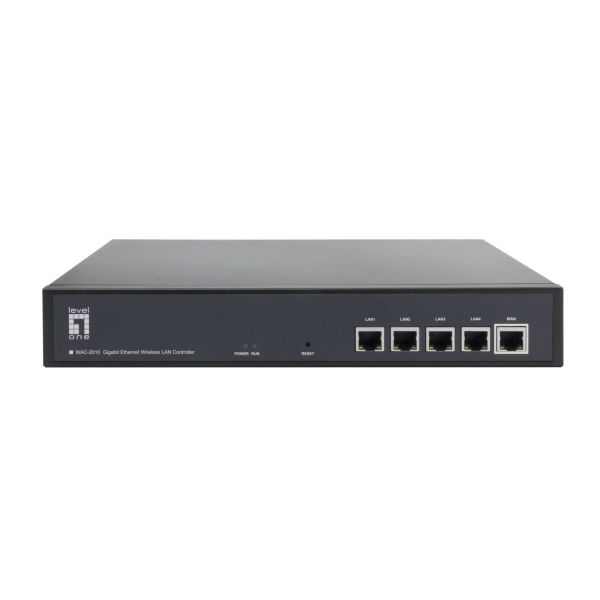

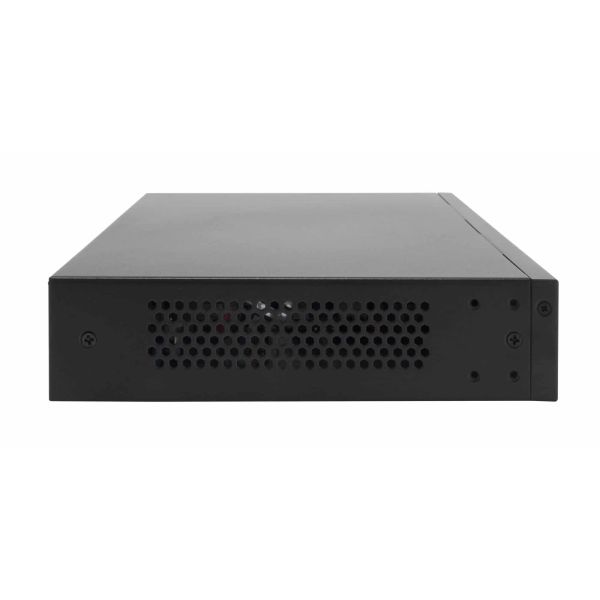

LevelOne WAC-2010 gateway/controller 10, 100, 1000 Mbit/s
The LevelOne WAC-2010 is a Gigabit WLAN controller designed for use in small to medium-sized networks in SMEs, schools, guesthouses, hotels, and apartments. Central management of up to 128 APs provides complete wireless security and service solutions for any small to medium-sized wireless network.
The WAC-2010 integrates a variety of features that allow the administrator to easily build the AP configuration. Including tag-based VLAN settings, AP firmware updates, as well as monitoring of the number and status of connected APs and users.
The WAC-2010 controller is also an Internet gateway with a robust firewall to protect against intruders, 1 WAN and 4 LAN ports at Gigabit speed enable fast and reliable data distribution in the network.
The LevelOne WAC-2010 also supports real-time control of signal strength and interference information. With the results, the WAC-2010 automatically regulates network utilization, output power, RF coverage, and channel distribution of APs to optimize wireless coverage, roaming of end devices, and throughput.
The WAC-2010 integrates a variety of features that allow the administrator to easily build the AP configuration. Including tag-based VLAN settings, AP firmware updates, as well as monitoring of the number and status of connected APs and users.
The WAC-2010 controller is also an Internet gateway with a robust firewall to protect against intruders, 1 WAN and 4 LAN ports at Gigabit speed enable fast and reliable data distribution in the network.
The LevelOne WAC-2010 also supports real-time control of signal strength and interference information. With the results, the WAC-2010 automatically regulates network utilization, output power, RF coverage, and channel distribution of APs to optimize wireless coverage, roaming of end devices, and throughput.
- Centralized management of up to 128 APs
- Client isolation allows strict control of access to wireless devices on the network
- Supports gateway/router mode
- Load balancing across multiple APs
- Built-in robust firewall to protect Internet access against intruders
- Enables Auto-Roaming for wireless network
Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten. Meld fout
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten. Meld fout
Design
Kleur van het product*
Zwart
Behuizingsmateriaal
Metaal
LED-indicatoren
Activiteit, Link, Stroom
Prestatie
Besturings -en afbeeldingseenheid*
Nee
Intern geheugen
256 MB
Flash memory
16 MB
Netwerk
Ethernet LAN, data-overdrachtsnelheden
10,100,1000 Mbit/s
Netwerkstandaard
IEEE 802.3, IEEE 802.3ab, IEEE 802.3u
Bekabelingstechnologie
10/100/1000Base-T(X)
Poorten & interfaces
Aantal Ethernet LAN (RJ-45)-poorten
4
WAN-poort
Ethernet (RJ-45)
Beheerfuncties
Quality of Service (QoS)
Ja
Energie
Ingangsspanning
100 - 240 V
Frequentie
50/60 Hz
Gewicht en omvang
Breedte
294 mm
Diepte
189 mm
Gewicht en omvang
Hoogte
44 mm
Gewicht
1,4 kg
Verpakking
Breedte verpakking
325 mm
Diepte verpakking
241 mm
Hoogte verpakking
81 mm
Gewicht verpakking
2,08 kg
Type verpakking
Doos
Inhoud van de verpakking
Snelstartgids
Ja
Meegeleverde kabels
AC
Eisen aan de omgeving
Bedrijfstemperatuur (T-T)
-20 - 55 °C
Temperatuur bij opslag
-40 - 70 °C
Relatieve vochtigheid in bedrijf (V-V)
10 - 90 procent
Luchtvochtigheid bij opslag
5 - 95 procent
Duurzaamheid
Naleving van duurzaamheid
Ja
Duurzaamheidscertificaten
CE, Federal Communications Commission (FCC), RoHS
Logistieke gegevens
Land van herkomst
China
