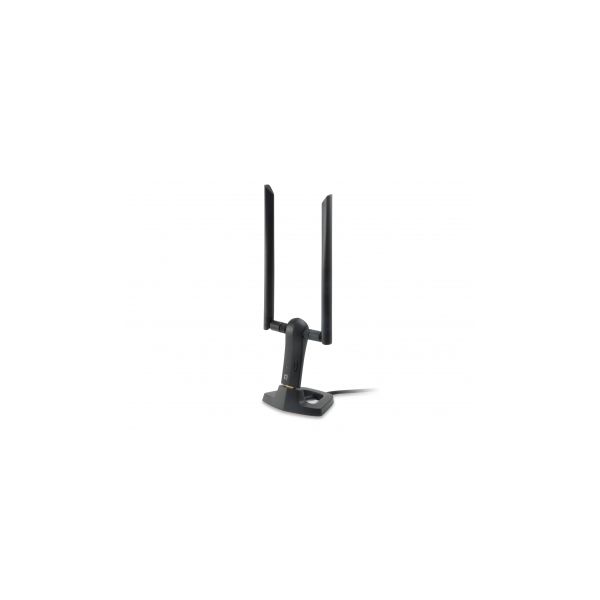

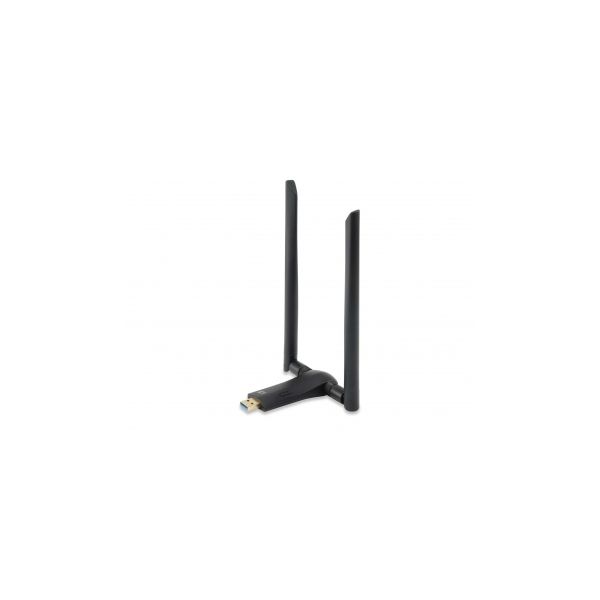

LevelOne WUA-1810A WLAN 867 Mbit/s
The LevelOne WUA-1810 is a dual-band wireless USB network adapter, compliant with the latest wireless technology IEEE 802.11ac standard. The adapter can simultaneously search for both 2.4 GHz and 5 GHz band networks, producing a transmission rate of up to 300Mbps on the 2.4 GHz frequency band, and 867Mbps on the 5 GHz band, with no radio interference and a faster, more stable wireless transmission. Compatible with mainstream Windows, Linux and Mac operating systems, WUA-1810 is very suitable for high-definition home entertainment networking, small business users, and sophisticated, high-demand wireless networking where speed and reliability are of optimum importance.
- Provides wireless speed up to 300Mbps (2.4GHz) / 867Mbps (5GHz)
- Dual band technology reduces interference for reliable connections
- Compatible with IEEE 802.11a/b/g/n/ac wireless standards
- Simple wireless connectivity and security with WPS push button
- AP/Client operation modes to suite different wireless applications
- Provides 5dBi detachable antenna
- Comes with a USB cradle to allow flexible placement for optimal wireless signal
- Provides wireless speed up to 300Mbps (2.4GHz) / 867Mbps (5GHz)
- Dual band technology reduces interference for reliable connections
- Compatible with IEEE 802.11a/b/g/n/ac wireless standards
- Simple wireless connectivity and security with WPS push button
- AP/Client operation modes to suite different wireless applications
- Provides 5dBi detachable antenna
- Comes with a USB cradle to allow flexible placement for optimal wireless signal
Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.
Specificaties
Poorten & interfaces
Connectiviteitstechnologie*
Draadloos
Hostinterface*
USB
Interface*
WLAN
Netwerk
Maximale overdrachtssnelheid van gegevens*
867 Mbit/s
Netwerkstandaard*
IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Wifi
Ja
Wifi-band
Dual-band (2.4 GHz / 5 GHz)
Wifi-standaard
Wi-Fi 5 (802.11ac)
Wi-Fi-standaarden
802.11a, Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n)
Ondersteunde WLAN data-overdrachtsnelheden
1,2,5.5,6,9,11,12,18,24,36,48,54,130,300,867 Mbit/s
Modulatie
DSSS, OFDM
Aantal kanalen (EU)
11 kanalen
Bandbreedte (eerste)
2,4 GHz
Bandbreedte (tweede)
5,8 GHz
Maximum indoorbereik
100 m
Design
Kleur van het product
Zwart
Intern*
Nee
Antenne
Ja
Antenne-ontwerp
Extern
WPS Push Button Security
Ja
Land van herkomst
China
Gevoeligheid ontvanger
11n:-68dBm@130M-68dBm@108M
11g:-69dBm@54M
11b:-85dBm@11M
11ac:-59dBm@867M
Energie
Stroom
0.5 A
Spanning
5 V
Minimale systeemeisen
Ondersteunt Windows
Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows Vista, Windows Vista Business, Windows Vista Business x64, Windows Vista Enterprise, Windows Vista Enterprise x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64
Ondersteunt Mac-besturingssysteem
Ja
Ondersteunt Linux
Ja
Eisen aan de omgeving
Bedrijfstemperatuur (T-T)
0 - 40 °C
Relatieve vochtigheid in bedrijf (V-V)
10 - 90 procent
Gewicht en omvang
Breedte
150 mm
Diepte
230 mm
Hoogte
40 mm
Gewicht
100 g
Verpakking
Type verpakking
Doos
Breedte verpakking
160 mm
Diepte verpakking
245 mm
Hoogte verpakking
50 mm
Gewicht verpakking
120 g
Inhoud van de verpakking
Meegeleverde kabels
USB
Snelle installatiehandleiding
Ja
Gebruikershandleiding
Ja
Logistieke gegevens
Code geharmoniseerd systeem (HS)
85176990
(Buitenste) hoofdverpakking breedte
2700 mm
(Buitenste) hoofdverpakking lengte
3470 mm
(Buitenste) hoofdverpakking hoogte
5130 mm
(Buitenste) hoofdverpakking brutogewicht
6,1 kg
Hoeveelheid per (buitenste) hoofdverpakking
100 stuk(s)
Overige specificaties
Versterking
5 dBi
Afneembare antennes
Ja
Antennas quantity
2
