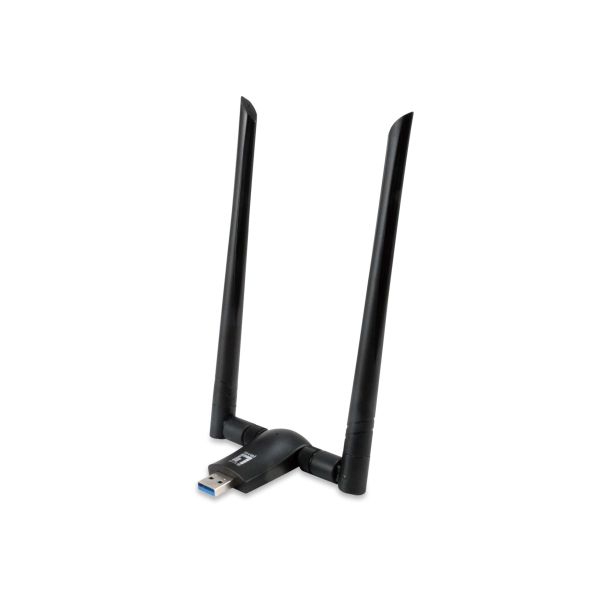

LevelOne WUA-1810E WLAN 867 Mbit/s

LevelOne WUA-1810E, Draadloos, USB, WLAN, Wi-Fi 5 (802.11ac), 867 Mbit/s, Zwart

Ruim op voorraad

Fabrikant LevelOne
MPN WUA-1810E
EAN 4015867202043
€ 64,00 excl. BTW

LevelOne WUA-1810E WLAN 867 Mbit/s

The LevelOne WUA-1810E is a high performance, costeffective dual-band wireless USB network adapter, compliant with the latest wireless technology IEEE 802.11ac Wave 2 MU-MIMO (Multi-User Multiple-Input Multiple-Output), producing a transmission rate of up to 300/867Mbps on the 2.4/5 GHz band, with no radio interference and a faster, more stable wireless transmission, that produces high-throughput wireless speed on the 2.4/5 GHz band.

This means that you can enjoy clear, smooth HD video streaming, faster websites and services, lag-free online gaming, and clear audio and video calls over the Internet. Combined with a MU-MIMO AP like the WAP-8123, the WUA-1810E is very suitable for high-definition home entertainment, small business users, and sophisticated, high-demand wireless networking where speed and reliability are of optimum importance.
  • MU-MIMO Technologie sorgt für erweiterte Performance
  • Kompatibel mit IEEE 802.11a / b / g / n / ac Wave 2 Standard
  • Unterstützt drahtlose Übertragungsraten von bis zu 300Mbps (2.4GHz) / 867Mbps (5GHz)
  • Dual-Band-Technologie reduziert Interferenzen für zuverlässige Verbindungen
  • Verfügt über abnehmbare 5dBi-Antenne

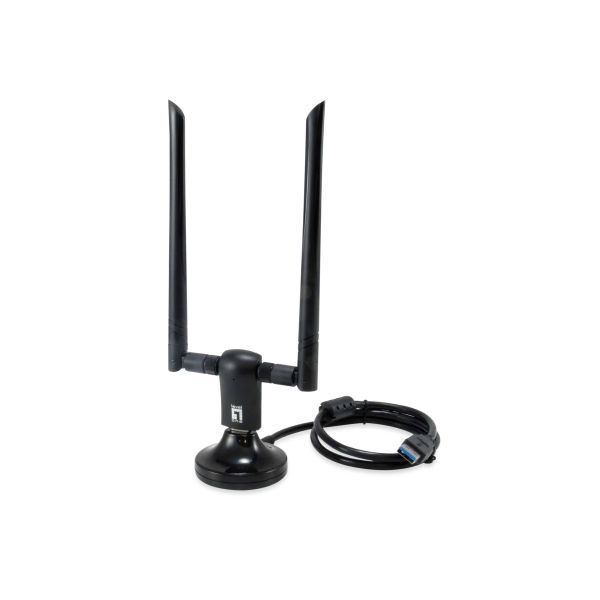

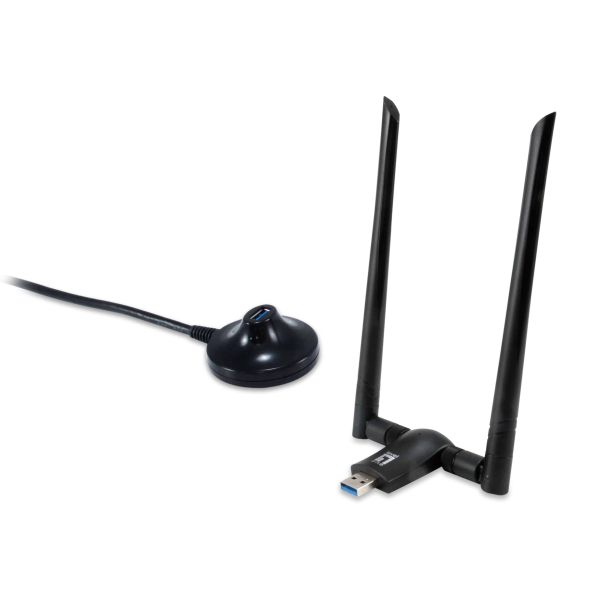

  • Inklusive USB-Standfuss für optimale Signalstärke durch flexible Positionierung

Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.

Specificaties

Poorten & interfaces

Connectiviteitstechnologie*
Draadloos
Hostinterface*
USB
Interface*
WLAN
USB-versie
3.2 Gen 1 (3.1 Gen 1)

Netwerk

Maximale overdrachtssnelheid van gegevens*
867 Mbit/s
Netwerkstandaard*
IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Wifi
Ja
Wifi-band
Dual-band (2.4 GHz / 5 GHz)
Wifi-standaard
Wi-Fi 5 (802.11ac)
Wi-Fi-standaarden
802.11a, Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n)
Ondersteunde WLAN data-overdrachtsnelheden
1,2,5.5,6,9,11,12,18,24,36,48,54,130,300,867 Mbit/s
Modulatie
DSSS, OFDM
Ondersteunde beveiligingsalgoritmen
64-bit WEP, 128-bit WEP, WPA-PSK, WPA-TKIP, WPA2-PSK, WPA2-TKIP
Aantal kanalen (EU)
13 kanalen
MU-MIMO
2
Bandbreedte (eerste)
2,4 GHz
Bandbreedte (tweede)
5 GHz
Maximale afstand
10 m

Design

Kleur van het product
Zwart
Intern*
Nee
Antenne
Ja
Antenne-ontwerp
Extern
Chipset
RTL8812BU
Plug and play
Ja
LED-indicatoren
Status
Land van herkomst
China
Gevoeligheid ontvanger
11n:-68dBm@130M-68dBm@108M 11g:-69dBm@54M 11b:-85dBm@11M 11ac:-59dBm@867M
Certificering
CE, LVD, RED

Energie

Stroom
0.5 A
Spanning
5 V

Minimale systeemeisen

Ondersteunt Windows
Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows Vista, Windows Vista Business, Windows Vista Business x64, Windows Vista Enterprise, Windows Vista Enterprise x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64
Ondersteunt Mac-besturingssysteem
Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion
Ondersteunt Linux
Ja

Eisen aan de omgeving

Bedrijfstemperatuur (T-T)
0 - 40 °C
Temperatuur bij opslag
-40 - 70 °C
Relatieve vochtigheid in bedrijf (V-V)
10 - 90 procent
Luchtvochtigheid bij opslag
5 - 90 procent

Duurzaamheid

Duurzaamheidscertificaten
RoHS

Gewicht en omvang

Breedte
26,5 mm
Diepte
62,5 mm
Hoogte
14,6 mm
Gewicht
110 g

Verpakking

Type verpakking
Doos
Breedte verpakking
103 mm
Diepte verpakking
206 mm
Hoogte verpakking
39 mm
Gewicht verpakking
170 g

Inhoud van de verpakking

Meegeleverde kabels
USB
Ondersteunings-cd
Ja
Snelle installatiehandleiding
Ja
Gebruikershandleiding
Ja

Logistieke gegevens

Code geharmoniseerd systeem (HS)
85176990

Overige specificaties

Versterking
5 dBi
Afneembare antennes
Ja
Antennas quantity
2
Snoerlengte
0,7 m
