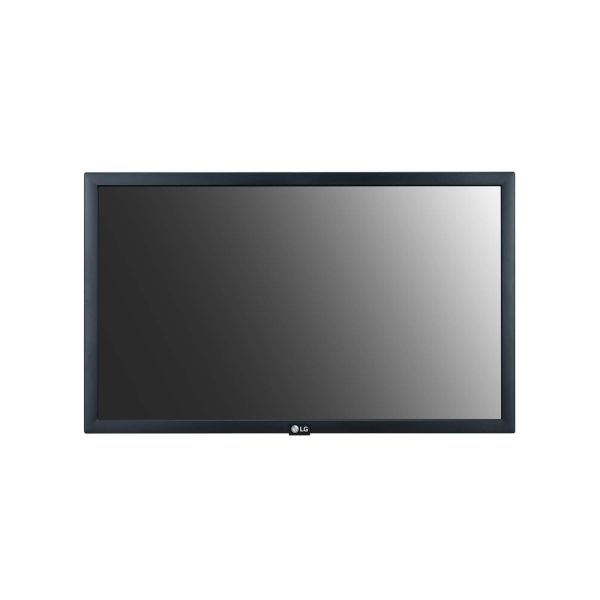

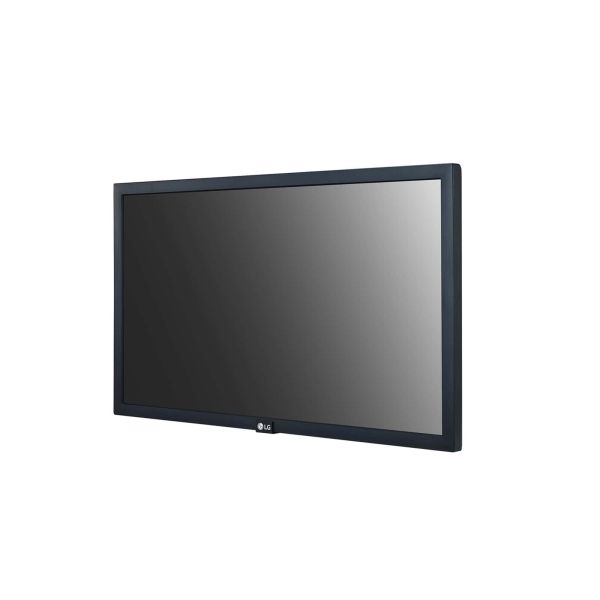

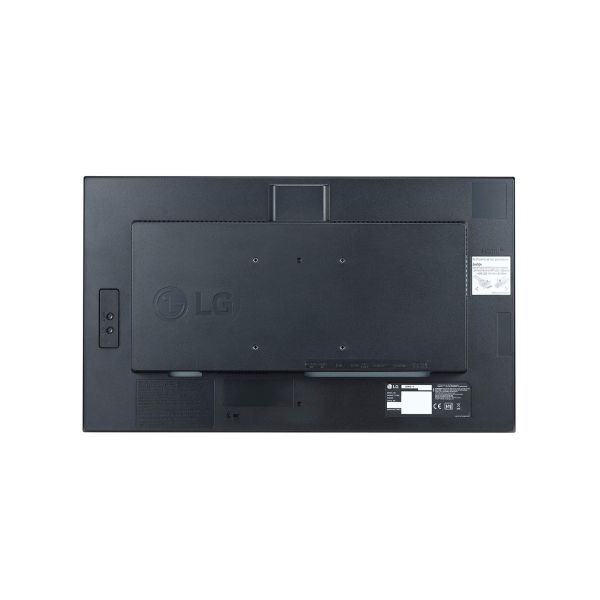

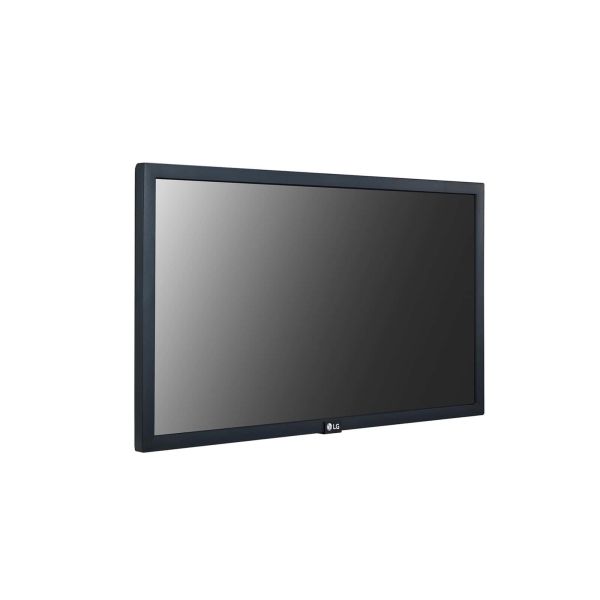

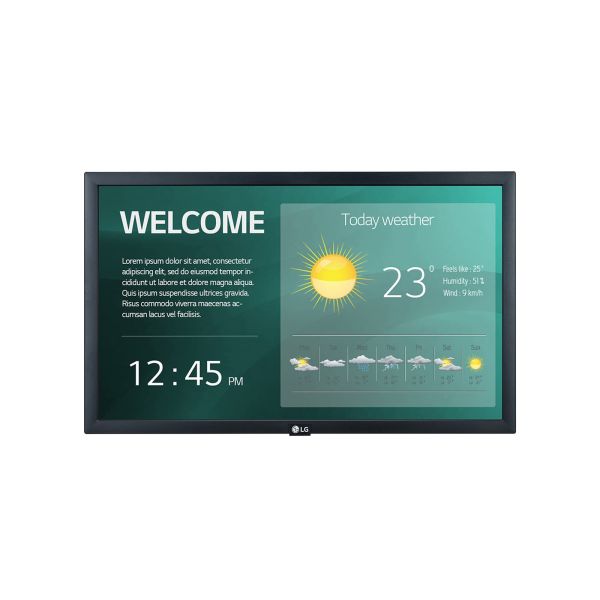

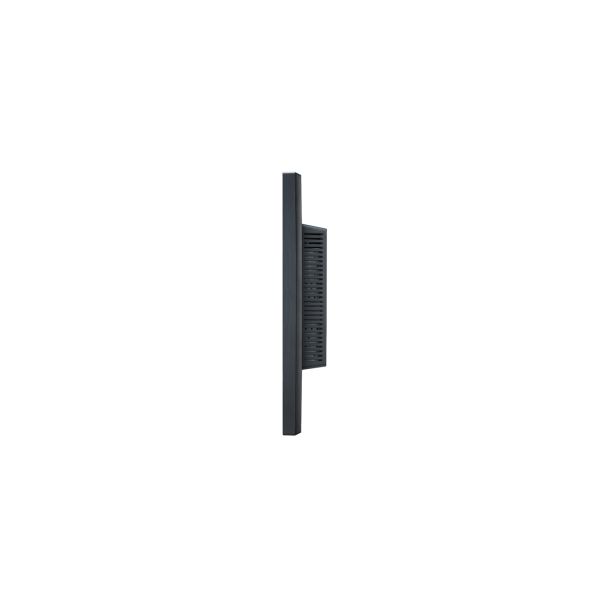

LG 22SM3G-B beeldkrant Digitale signage flatscreen 54,6 cm (21.5") IPS Wifi 250 cd/m² Full HD Zwart Type processor 16/7

LG 22SM3G-B, Digitale signage flatscreen, 54,6 cm (21.5"), IPS, 1920 x 1080 Pixels, Wifi, 16/7

Nog 14 beschikbaar

Fabrikant LG
MPN 22SM3G-B
EAN 8806098661039
€ 488,00 excl. BTW

LG 22SM3G-B beeldkrant Digitale signage flatscreen 54,6 cm (21.5") IPS Wifi 250 cd/m² Full HD Zwart Type processor 16/7

22" Signage with More Utility for Commercial Space
22SM3G delivers information and performs guide with more effective ways in various commercial space, which provides more convenient solution thanks to its upgraded webOS platform.

High Performance SoC with webOS
Built-in Quad Core SoC can execute several tasks at once while providing smooth content playback without the need for a media player. Also, LG webOS smart signage platform enhances user convenience with intuitive GUI and simple app development tools.

Various Sensor Applications
LG webOS smart signage platform easily supports connections with external sensors such as GPIO, NFC/RFID, temperature sensors, etc, via USB plug-in. The overall cost for maintenance is reduced as there's no need to purchase additional software or media players.

A Wide Range of Interfaces
Through its diverse interfaces, users can connect the display with various sources for optimal use. Also, the failover function supports users preparing backup sources in case an unexpected error occurs.

USB Plug & Play
22SM3G supports USB Plug & Play feature, so users can easily set content playback using a USB.

Remote Monitoring and Control
Through the Control Manager, the embedded web monitoring solution, you can control and monitor the status of multiple 22SM3G displays in different locations in real-time. It is available on internet-connected devices, allowing you to flexibly and rapidly respond to emergency situations anywhere.

Real-time Care Service with LG Signage365Care
The maintenance gets easier and faster with the optional service Signage365Care*, a cloud service solution provided by LG service. It remotely manages status of displays in client workplaces for fault diagnosis and remote-control services, ensuring stable operation of the client’s business.
  • Brightness(Typ.) : 250 cd/m²
  • Bezel : 16.3mm
  • Depth : 53.8mm
  • Interface : HDMI(2) / USB 2.0 / RS232C / RJ45 / IR / Audio
  • USB Plug & Play, Built-in Wi-Fi

Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.

Specificaties

Beeldscherm

Beeldschermdiagonaal*
54,6 cm (21.5")
Display technologie*
IPS
Resolutie*
1920 x 1080 Pixels
Helderheid*
250 cd/m²
HD type*
Full HD
Touchscreen*
Nee
Oorspronkelijke beeldverhouding
16:9
Typische contrastverhouding
1000:1
Contrast ratio (dynamisch)
400000:1
Kijkhoek, horizontaal
178°
Kijkhoek, verticaal
178°
Schermdiameter in centimeters
55,88 cm

Poorten & interfaces

Aantal HDMI-poorten*
2
DVI-poort*
Nee
USB-poort*
Ja
Aantal USB-aansluitingen
1
USB-versie
2.0
Ethernet LAN*
Ja
Aantal Ethernet LAN (RJ-45)-poorten
1
Wifi*
Ja
Audio-ingang (L, R)
1
RS-232
Ja
RS-232C
Ja

Audio

Ingebouwde luidsprekers*
Ja
Aantal ingebouwde luidsprekers
2
Gemiddeld vermogen
2 W

Design

Productontwerp*
Digitale signage flatscreen
Model
Horizontaal
Kleur van het product*
Zwart
VESA-montage*
Ja
Paneelmontage-interface
100 x 100 mm

Prestatie

Bedoeld voor*
Universeel
Bedrijfsuren (uren/dagen)
16/7

Energie

Stroomverbruik (typisch)*
33 W
Stroomverbruik (in standby)*
30 W
Slaapstand
1 W
Stroomverbruik (indien uit)
0,5 W
AC-ingangsspanning
100 - 240 V
AC-ingangsfrequentie
50 - 60 Hz
Warmtedissipatie
7,89 BTU/h

Computersysteem

Computersysteem*
Nee
Type processor*
Ja
Aantal processorkernen
4
Intern geheugen
4 GB

Gewicht en omvang

Breedte
510,3 mm
Diepte
53,8 mm
Hoogte
302,1 mm
Gewicht
3,34 kg

Verpakking

Breedte verpakking
565 mm
Diepte verpakking
103 mm
Hoogte verpakking
357 mm
Gewicht verpakking
3,5 kg

Inhoud van de verpakking

Afstandsbediening inbegrepen
Ja
Batterijen inbegrepen
Ja
Meegeleverde kabels
AC
Montage gereedschap
Ja

Eisen aan de omgeving

Bedrijfstemperatuur (T-T)
0 - 40 °C
Relatieve vochtigheid in bedrijf (V-V)
10 - 80 procent
Temperatuur bij opslag
-20 - 60 °C
Luchtvochtigheid bij opslag
5 - 85 procent

Certificaten

Certificering
CB, NRTL, EMC, FCC Class "A", CE, ErP

Logistieke gegevens

Code geharmoniseerd systeem (HS)
85285210
