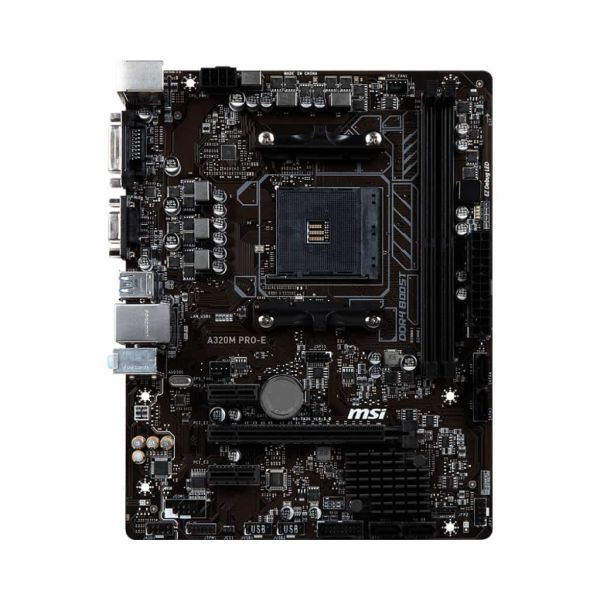

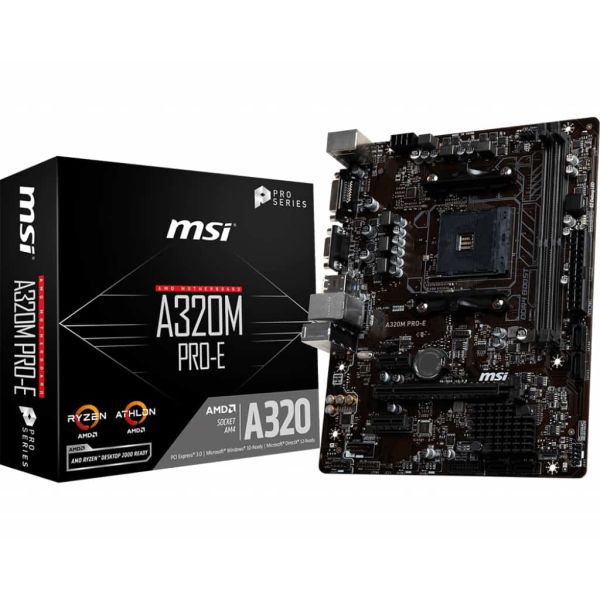

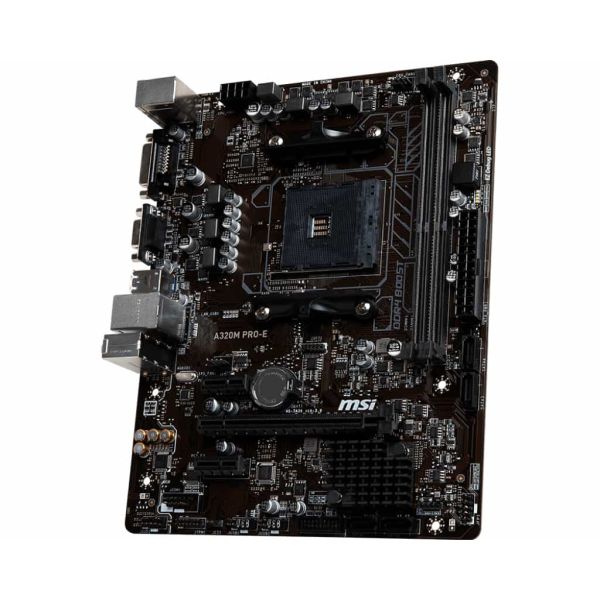

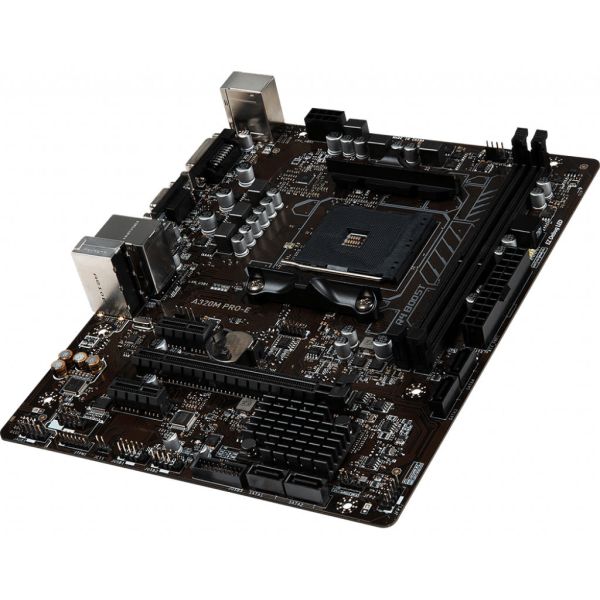

MSI A320M PRO-E AMD A320 Socket AM4 micro ATX

MSI A320M PRO-E, AMD, Socket AM4, AMD A, AMD Athlon, AMD Athlon™ X4, AMD Ryzen™ 3, 2nd Generation AMD Ryzen™ 3, 3rd Generation..., DDR4-SDRAM, DIMM, Dubbelkanaals

Niet op voorraad

Fabrikant MSI
MPN 7A36-017R
EAN 4719072611415
€ 89,00 excl. BTW

MSI A320M PRO-E AMD A320 Socket AM4 micro ATX

MSI Mainboard AM4 MB MSI A320M Pro-E ProE A320M Pro-E ProE (DDR4, USB 3 1 MSI1 MSI 1 A320 mATX,VGA,AMD)

Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.

Specificaties

Processor

Processorfabrikant*
AMD
Processor socket*
Socket AM4
Compatibele processors*
AMD A, AMD Athlon, AMD Athlon™ X4, AMD Ryzen™ 3, 2nd Generation AMD Ryzen™ 3, 3rd Generation AMD Ryzen™ 3, AMD Ryzen™ 5, 2nd Generation AMD Ryzen™ 5, 3rd Generation AMD Ryzen 5, 2nd Generation AMD Ryzen™ 7, 3rd Generation AMD Ryzen™ 7, 3rd Generation AMD Ryzen™ 9
Max. aantal SMP-processoren
1

Geheugen

Ondersteunde geheugen types*
DDR4-SDRAM
Aantal geheugenslots*
2
Geheugen slots type
DIMM
Geheugen kanaal
Dubbelkanaals
ECC
Ja
Non-ECC
Ja
Supported memory clock speeds
1866,2133,2400,2667,2933,3200 MHz

Opslag-controllers

Soorten RAID
0, 1, 10

Grafisch

Maximum geheugen grafische adapter
2048 MB
Maximum resolutie
2048 x 1280 Pixels

Interne aansluitingen

USB 2.0 aansluitingen*
2
USB 3.2 Gen 1 (3.1 Gen 1)-aansluitingen*
1
Aantal SATA III connectors*
4
Aansluiting voor audiopaneel aan voorzijde
Ja
Voorpaneel-connector
Ja
ATX Power connector (24-pin)
Ja
Aansluiting voor CPU koeler
Ja
Aansluitingen voor behuizingsventilatoren
1
Chassis intrusion aansluiting
Ja
TPM connector
Ja
Serial port headers
1
12V vermogen-connector
Ja

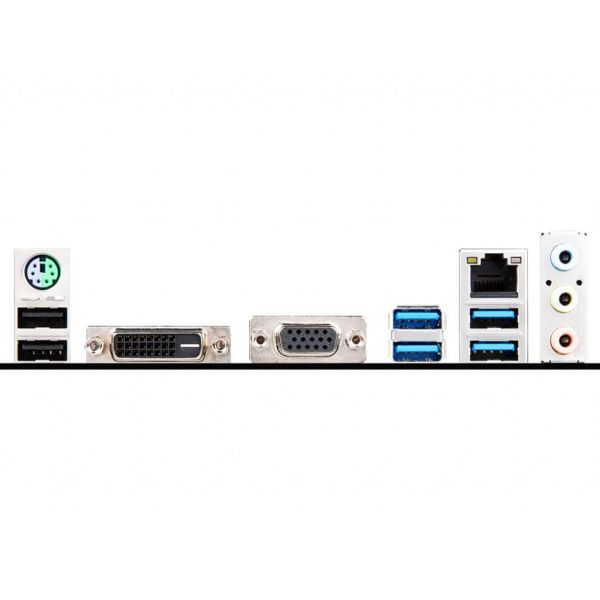

Aansluitingen achterzijde

Aantal USB 2.0-poorten*
2
Aantal poorten USB 3.2 Gen 1 (3.1 Gen 1) Type A*
4
Aantal Ethernet LAN (RJ-45)-poorten*
1
PS/2 poort(en)
1

Aansluitingen achterzijde

VGA (D-Sub)poort(en)*
1
DVI-D poorten*
1

Netwerk

Ethernet LAN
Ja
Ethernet interface type
Gigabit Ethernet

Kenmerken

Chipset moederbord*
AMD A320
Audiochip
Realtek ALC887
Audio-uitgangskanalen*
7.1 kanalen
Component voor*
PC
Moederbord form factor*
micro ATX
Moederbord chipset familie*
AMD
Aantal montagegaten
6
Ondersteunt Windows
Windows 10 Education x64, Windows 10 Enterprise x64, Windows 10 Home x64, Windows 10 Pro x64, Windows 7 Enterprise x64, Windows 7 Home Basic x64, Windows 7 Home Premium x64, Windows 7 Professional x64, Windows 7 Starter x64, Windows 7 Ultimate x64, Windows 7 x64

Uitbreidingsmodules

PCI Express x1 (Gen 2.x) slots
2
PCI Express x16 (Gen 3.x) slots
1

BIOS

BIOS type*
UEFI AMI
Grootte BIOS-geheugen
128 Mbit
ACPI version
5.0
Clear CMOS jumper
Ja
Plug and play
Ja
Systeem Management BIOS (SMBIOS) versie
2.8

Gewicht en omvang

Breedte
236 mm
Diepte
187 mm

Inhoud van de verpakking

Meegeleverde kabels
SATA
Gebruikershandleiding
Ja
Meegeleverde drivers
Ja

Overige specificaties

Snelle installatiehandleiding
Ja
