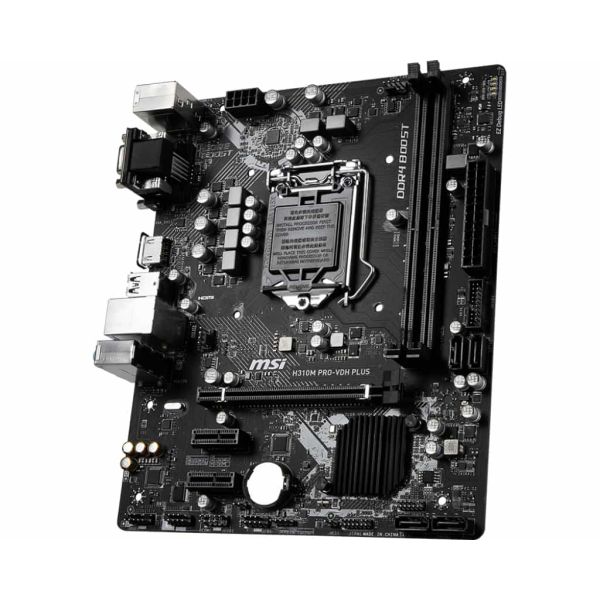

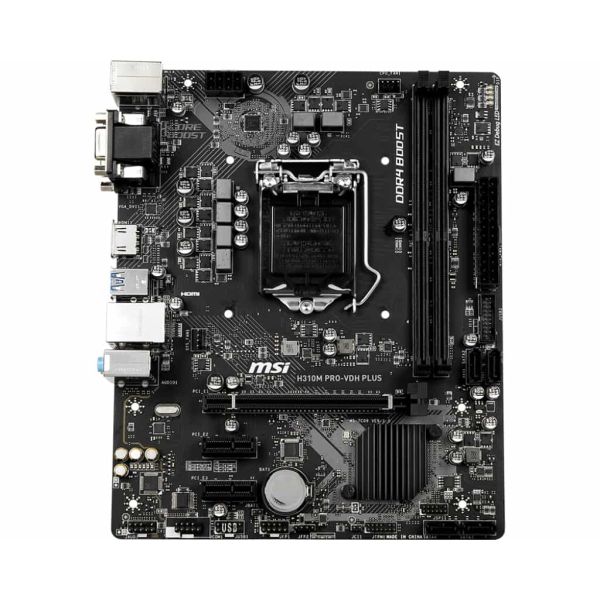

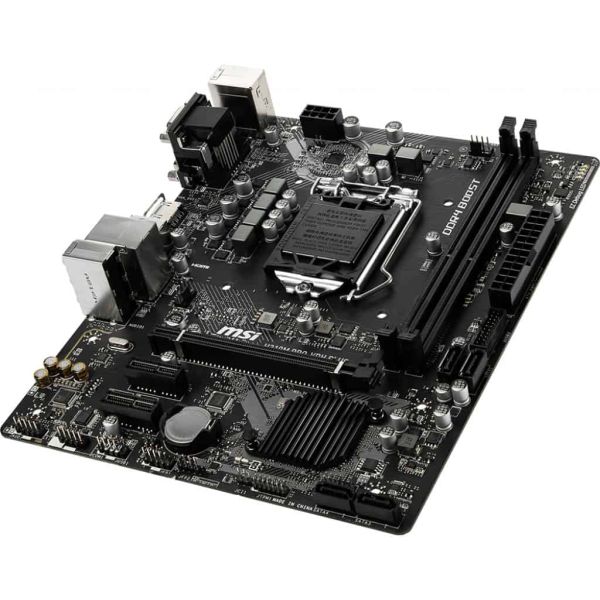

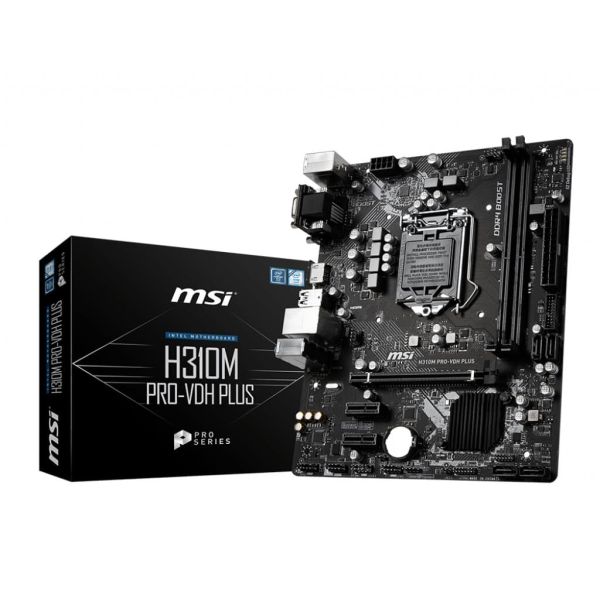

MSI H310M PRO-VDH PLUS moederbord Intel® H310 LGA 1151 (Socket H4) micro ATX

MSI H310M PRO-VDH PLUS, Intel, LGA 1151 (Socket H4), Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Pentium®, i3-8xxx, i5-8xxx, i7-8xxx, LGA 1151 (Socket H4), DDR4-SDRAM

Niet op voorraad

Fabrikant MSI
MPN 7C09-001R
EAN 4719072587116
€ 108,00 excl. BTW

MSI H310M PRO-VDH PLUS moederbord Intel® H310 LGA 1151 (Socket H4) micro ATX

MAKING YOUR LIFE EASIER IS OUR BUSINESS
Combining quality you can rely on with top performance and clever business solutions are key aspects of the MSI PRO SERIES motherboards. Engineered to gratify even the most demanding professional, these motherboards will fit in any PC. Making your life easier and supporting your business with super stable, reliable and long-lasting top performance.

BUILT FOR CONTENT CREATORS AND PROFESSIONALS
This motherboard is designed to fully utilize the Intel® Coffee Lake 6 core processors, ready to deliver world class performance when gaming.

STAY COOL
Cooling your PC is essential for reliable performance. We've made sure to include enough fan headers with full control to allow you to cool your system to the max.

ENJOY THE LATEST VIDEO STANDARDS
Supporting the latest display connectors for new technologies (OLED, HDR) and legacy connectors for beamers, MSI motherboards are designed to make life easier for any professional user.

PROFESSIONAL SOUND QUALITY
Get the most immersive sound experience. MSI Audio Boost delivers the highest sound quality through the use of premium quality audio components. This lets you enjoy breathtaking, game-changing sound to create the most dynamic soundscapes.

STABLE, SECURE & FAST NETWORKING
Optimized for professional and multimedia use, this generation comes equipped with a high quality network solution ready to serve you with 24/7 reliability when transferring big data.

UNMATCHED MEMORY PERFORMANCE
MSI motherboards are crammed with features to fuel your system's memory with more speed, higher overclockability and increased stability.

DESIGNED FOR LIMITLESS TUNING
Founded on experience and with a long history of creating the best performing motherboards packed with smart features, you can count on this motherboard to deliver the best performance under the most extreme conditions. Countless system tuning and troubleshooting tools are at your disposal to push your system to new heights and satisfy even the most demanding tweaker.

MAXIMIZE YOUR USB DEVICE PERFORMANCE
Transfer lots of data, music and movies over USB faster than ever. MSI offers a wide variety of options to connect and boost your USB 3.1 devices, delivering lightning-fast transfer speeds!

APPS TO GREATLY IMPROVE EFFICIENCY
With years of experience in creating performance enhancing tools that are easy to use, only the highest quality applications are at your disposal. Use these tools to get the most out of your motherboard and achieve victory when gaming.

BUILT ON EVERLASTING QUALITY
Using only the finest quality components and integrating the latest technological innovations delivers the best possible professional experience. Rigorous quality testing under the most extreme conditions ensures a super reliable, long-lasting and high performance motherboard.

A USER-FRIENDLY BIOS
We made sure our BIOS contains all the latest options and is easy to use for everyone. The extensive features found in CLICK BIOS 5 let you fine-tune your system to deliver reliable maximum performance.
  • Supports 9th / 8th Gen Intel® Core™ / Pentium® Gold / Celeron® processors for LGA 1151 socket
  • Supports DDR4 Memory, up to 2666MHz
  • Audio Boost: Reward your ears with studio grade sound quality
  • EZ Debug LED: Easiest way to troubleshoot
  • X-Boost: Software that auto-detects and allows you to boost the performance of any storage or USB device
  • Core Boost: With premium layout and fully digital power design to support more cores and provide better performance

Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.

Specificaties

Processor

Processorfabrikant*
Intel
Processor socket*
LGA 1151 (Socket H4)
Compatibele processors*
Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Pentium®
Max. aantal SMP-processoren
1
Intel® Core i3/i5/i7/i9 series
i3-8xxx, i5-8xxx, i7-8xxx
Supported processor sockets
LGA 1151 (Socket H4)

Geheugen

Ondersteunde geheugen types*
DDR4-SDRAM
Aantal geheugenslots*
2
Geheugen slots type
DIMM
Geheugen kanaal
Dubbelkanaals
Non-ECC
Ja
Supported memory clock speeds
2133,2400,2666 MHz
Maximum intern geheugen*
32 GB
Niet gebufferd geheugen
Ja

Opslag-controllers

Ondersteunde types opslag-drives
HDD & SSD
Ondersteunde opslagstationinterfaces*
SATA III

Grafisch

Grafische adapter-familie
Intel
Maximum resolutie
4096 x 2160 Pixels
HDCP
Ja
Aantal displays ondersteund
2

Interne aansluitingen

USB 2.0 aansluitingen*
1
USB 3.2 Gen 1 (3.1 Gen 1)-aansluitingen*
1
Aantal SATA III connectors*
4
Aansluiting voor audiopaneel aan voorzijde
Ja
Voorpaneel-connector
Ja
ATX Power connector (24-pin)
Ja
Aansluiting voor CPU koeler
Ja
Aansluitingen voor behuizingsventilatoren
1
Chassis intrusion aansluiting
Ja
EPS power connector (8-pin)
Ja
TPM connector
Ja
Serial port headers
1

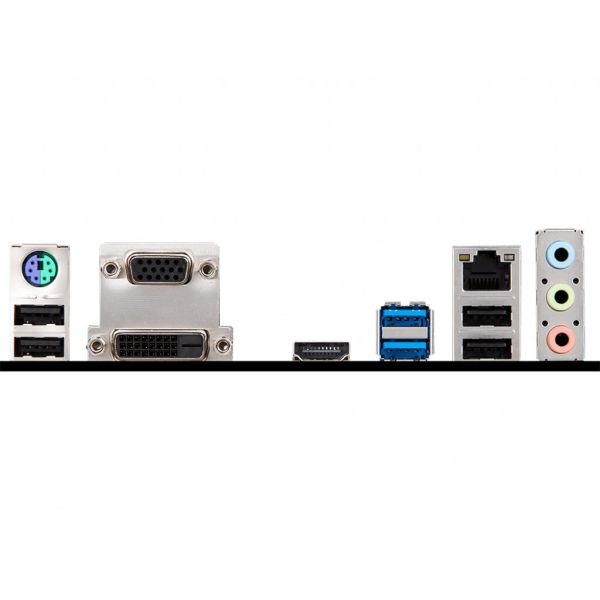

Aansluitingen achterzijde

Aantal USB 2.0-poorten*
4
Aantal poorten USB 3.2 Gen 1 (3.1 Gen 1) Type A*
2
Aantal Ethernet LAN (RJ-45)-poorten*
1
PS/2 poort(en)
1

Aansluitingen achterzijde

VGA (D-Sub)poort(en)*
1
Aantal HDMI-poorten*
1
DVI-D poorten*
1
Hoofdtelefoonuitgangen
1
Microfoon, line-in ingang
Ja

Netwerk

Ethernet LAN
Ja
Ethernet interface type
Gigabit Ethernet
LAN controller
Realtek RTL8111H
Wifi*
Nee

Kenmerken

Chipset moederbord*
Intel® H310
Audiochip
Realtek ALC887
Audio-uitgangskanalen*
7.1 kanalen
Component voor*
PC
Moederbord form factor*
micro ATX
Moederbord chipset familie*
Intel
Type koeling
Passief
Type stroombron
ATX
Aantal montagegaten
6
Ondersteunt Windows
Windows 10

Uitbreidingsmodules

PCI Express x1 (Gen 2.x) slots
2
PCI Express x16 (Gen 3.x) slots
1

BIOS

BIOS type*
UEFI AMI
Clear CMOS jumper
Ja

Processor speciale functies

Intel® Rapid Storage Technology
Ja
Intel® Extreme Memory Profile (XMP)
Ja

Gewicht en omvang

Breedte
226 mm
Diepte
185 mm

Inhoud van de verpakking

Meegeleverde kabels
SATA
Gebruikershandleiding
Ja
Meegeleverde drivers
Ja

Overige specificaties

Snelle installatiehandleiding
Ja
