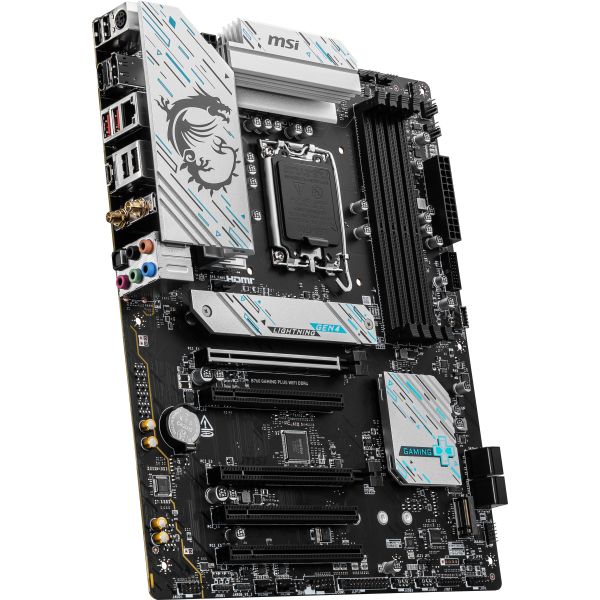

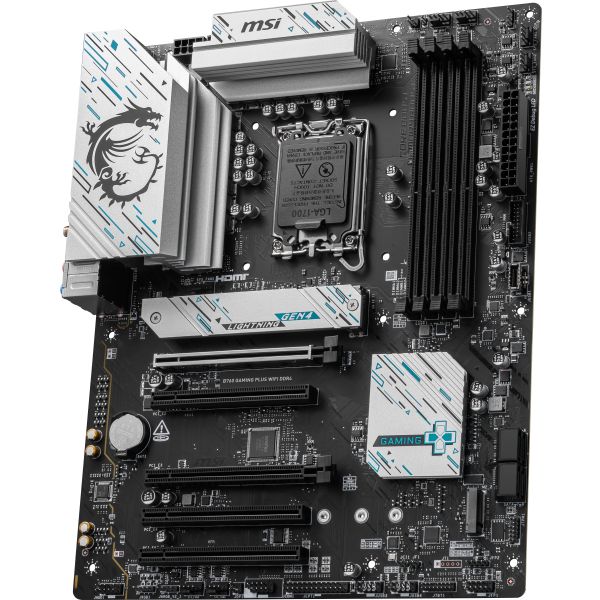

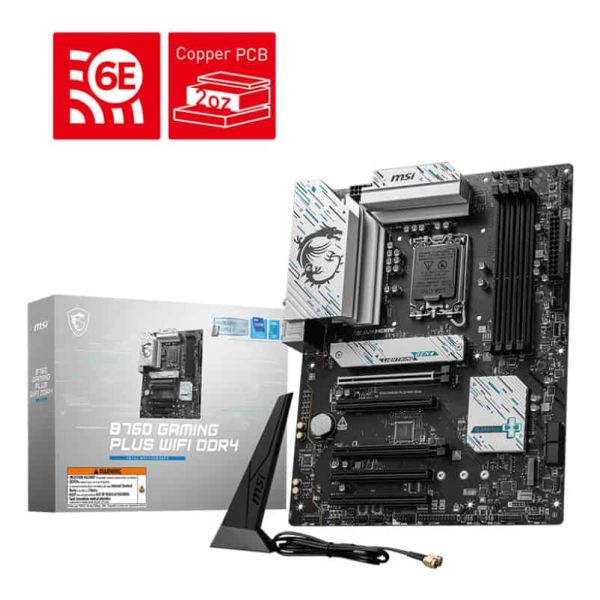

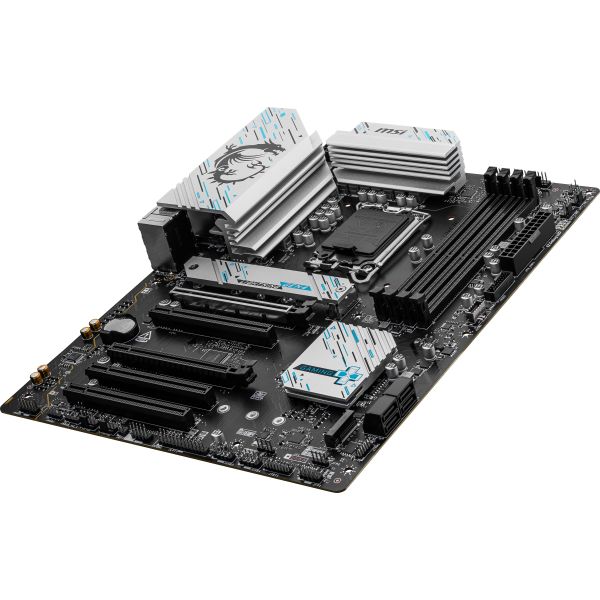

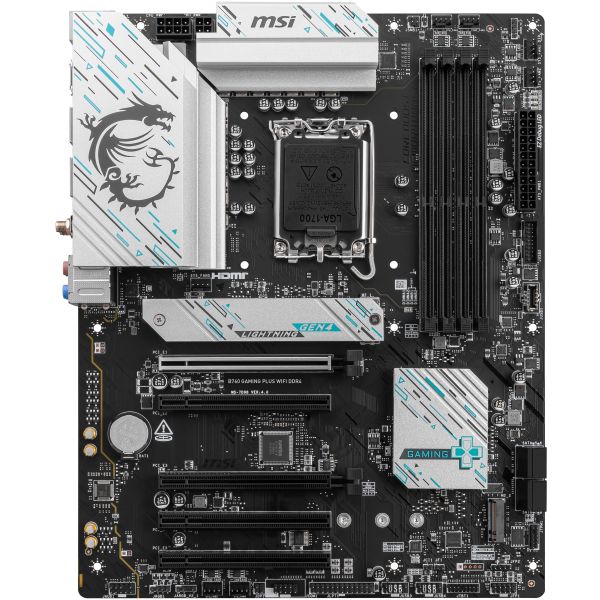

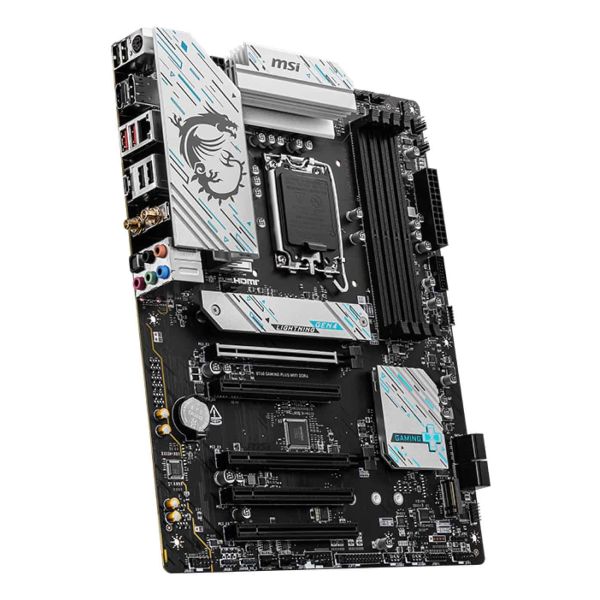

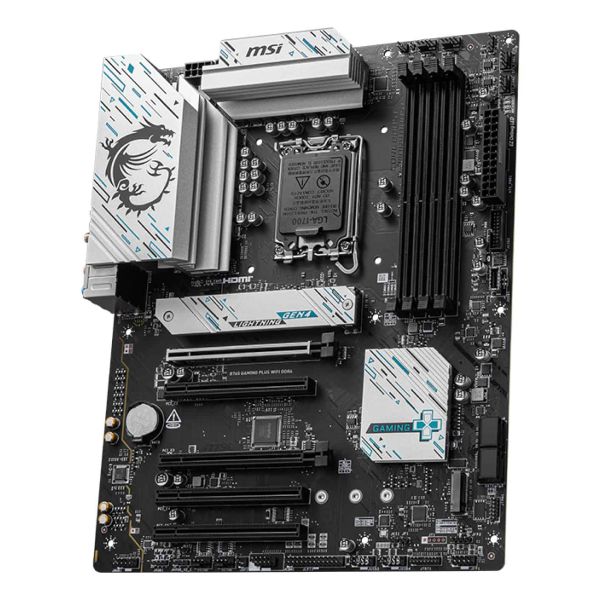

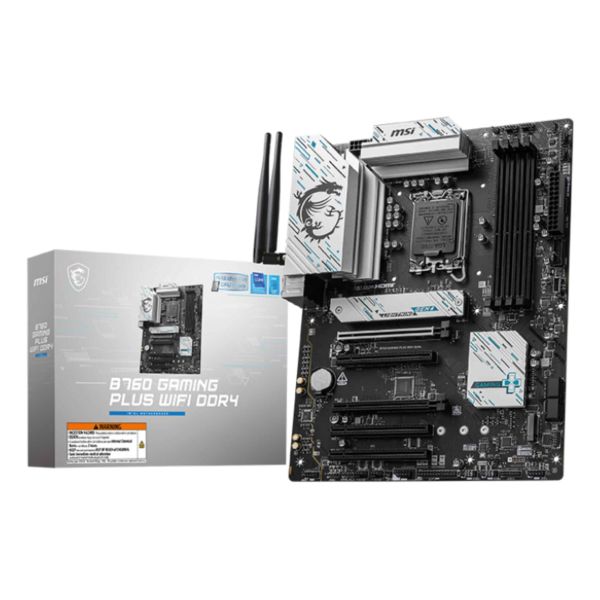

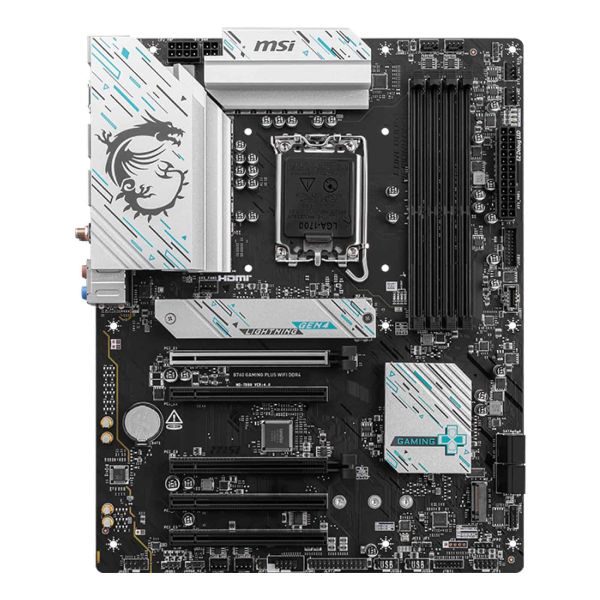

MSI B760 GAMING PLUS WIFI DDR4 moederbord Intel B760 LGA 1700 ATX

MSI B760 GAMING PLUS WIFI DDR4, Intel, LGA 1700, Intel® Celeron®, Intel® Pentium® Gold, LGA 1700, 128 GB, DDR4-SDRAM

Ruim op voorraad

Fabrikant MSI
MPN 7D98-043R
EAN 4711377247900
€ 165,00 excl. BTW

MSI B760 GAMING PLUS WIFI DDR4 moederbord Intel B760 LGA 1700 ATX

MSI MB MSI Intel 1700 B760 GAMING PLUS WIFI DDR4

Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.

Specificaties

Processor

Processorfabrikant*
Intel
Processor socket*
LGA 1700
Compatibele processors*
Intel® Celeron®, Intel® Pentium® Gold
Supported processor sockets
LGA 1700
Maximaal intern geheugen ondersteund door processor
128 GB

Geheugen

Ondersteunde geheugen types*
DDR4-SDRAM
Aantal geheugenslots*
4
Geheugen slots type
DIMM
Geheugen kanaal
Dubbelkanaals
ECC-compatibiliteit
Niet-ECC
Supported memory clock speeds
2133,2400,2666,2933,3200,3333,3400,3466,3600,3733,3800,4000,4200,4266,4400,4600,4800,5000,5066,5200,5333 MHz
Maximum intern geheugen*
128 GB

Opslag-controllers

Ondersteunde opslagstationinterfaces*
M.2, SATA
Maximum aantal HDD's per behuizing
4
Aantal storage drives ondersteund
6
RAID support
Ja
Soorten RAID
0, 1, 5, 10

Interne aansluitingen

USB 2.0 aansluitingen*
4
USB 3.2 Gen 1 (3.1 Gen 1)-aansluitingen*
3
Aantal SATA III connectors*
4
Totaal aantal SATA-connectoren
4
S/PDIF uitgang
Ja
TPM connector
Ja
RGB LED-aansluitrail
Ja

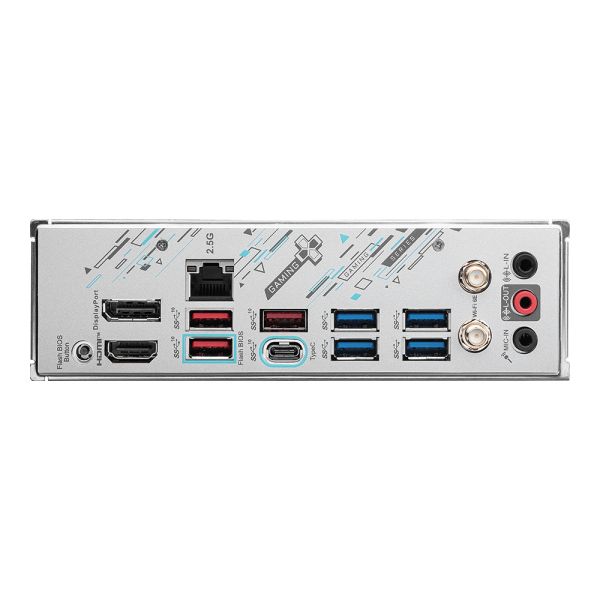

Aansluitingen achterzijde

Aantal USB 2.0-poorten*
4
Aantal poorten USB 3.2 Gen 2 (3.1 Gen 2) Type A*
2
Aantal poorten USB 3.2 Gen 2 (3.1 Gen 2) Type C*
1
Aantal Ethernet LAN (RJ-45)-poorten*
1
Aantal HDMI-poorten*
1
HDMI versie
2.1

Aansluitingen achterzijde

Aantal DisplayPorts
1
DisplayPort versie
1.4
S/PDIF-uitgang
Ja

Netwerk

Ethernet LAN
Ja
Ethernet interface type
2.5 Gigabit Ethernet
LAN controller
Dragon RTL8125BG
Wifi*
Ja
Wifi-standaard
Wi-Fi 6 (802.11ax)
Wi-Fi-standaarden
802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)
Bluetooth
Ja
Bluetooth-versie
5.3

Kenmerken

Chipset moederbord*
Intel B760
Audiochip
Realtek ALC897
Audio-uitgangskanalen*
7.1 kanalen
Component voor*
PC
Moederbord form factor*
ATX
Moederbord chipset familie*
Intel
Ondersteunt Windows
Windows 10 x64, Windows 11 x64

Uitbreidingsmodules

PCI Express x1 slots
3
PCI Express x1 (Gen 3.x) slots
3
PCI Express x16 slots
2
PCI Express x16 (Gen 4.x) sleuven
2
Aantal M.2 (M) slots
2

BIOS

BIOS type*
UEFI AMI
Grootte BIOS-geheugen
256 Mbit
ACPI version
6.4

Gewicht en omvang

Breedte
243,8 mm
Diepte
304,8 mm
