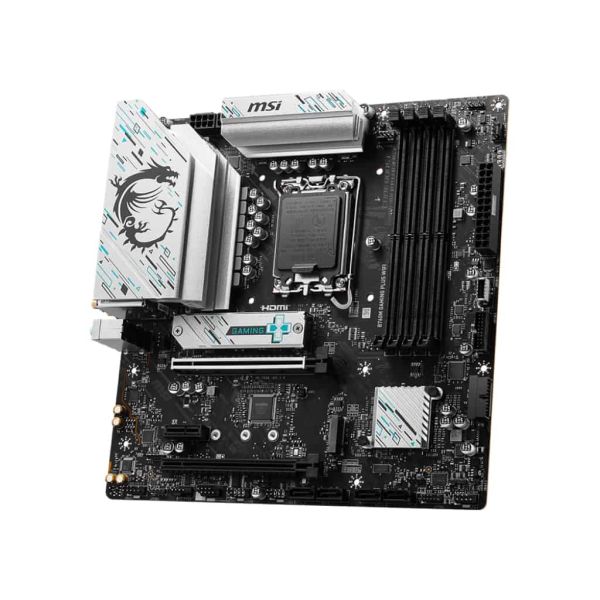

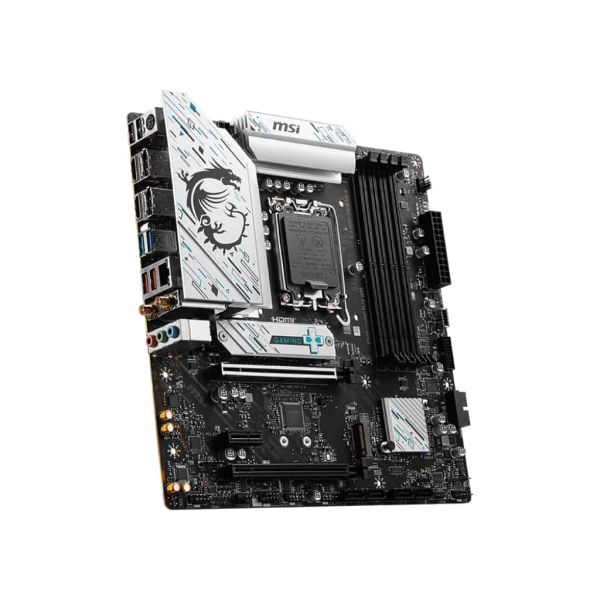

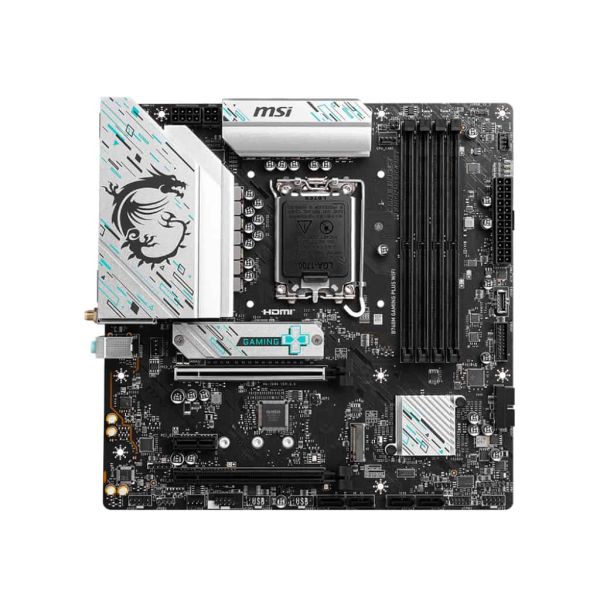

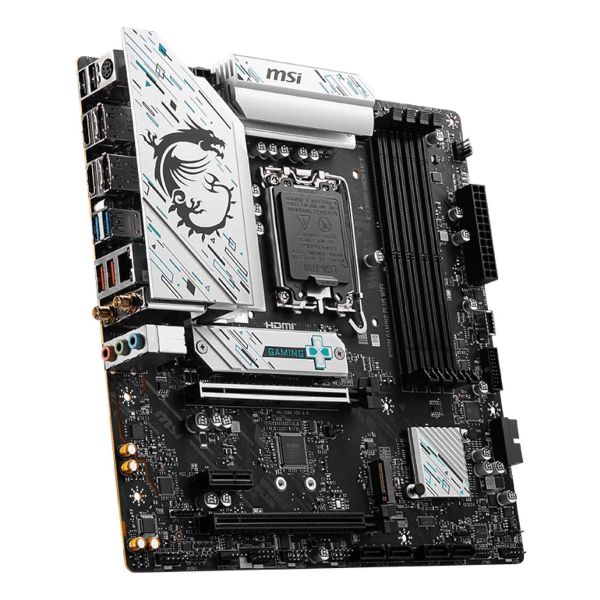

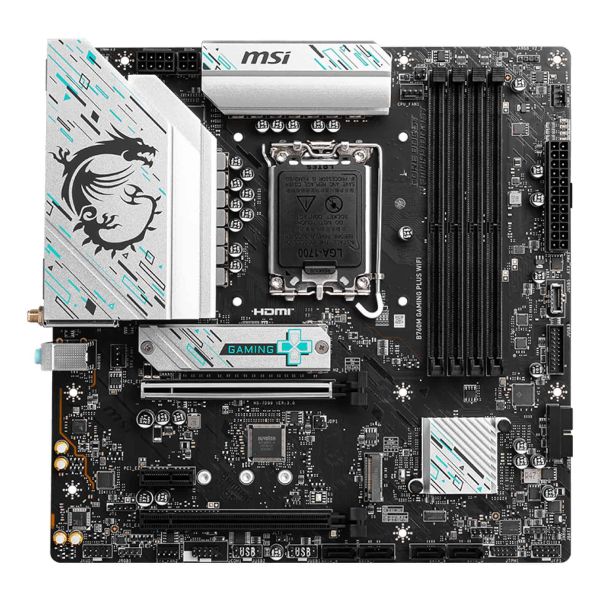

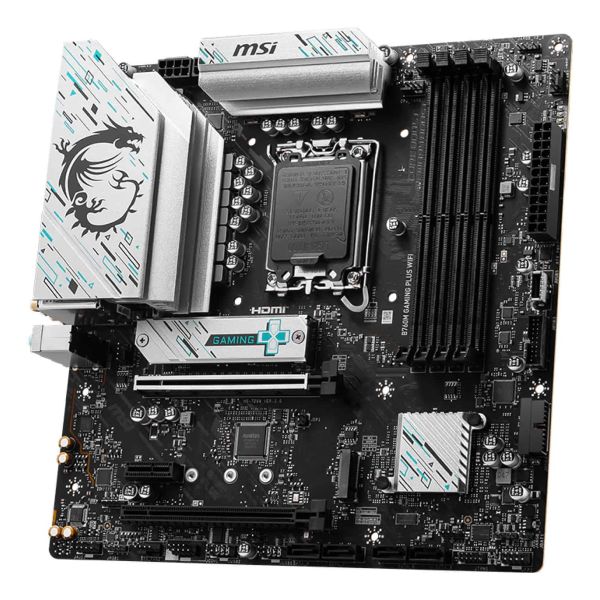

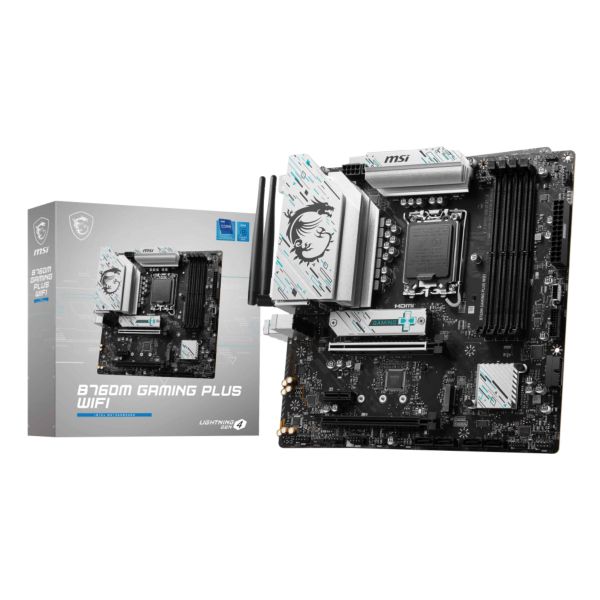

MSI B760M GAMING PLUS WIFI moederbord Intel B760 LGA 1700 micro ATX

MSI B760M GAMING PLUS WIFI, Intel, LGA 1700, Intel® Celeron®, Intel® Pentium® Gold, LGA 1700, DDR5-SDRAM, 192 GB

Ruim op voorraad

Fabrikant MSI
MPN 7D99-017R
EAN 4711377154017
€ 229,00 excl. BTW

MSI B760M GAMING PLUS WIFI moederbord Intel B760 LGA 1700 micro ATX

B760M GAMING PLUS WIFI is designed with tons of connectivity, flexible tools, and convenient Wi-Fi solution with DDR5 memory version for gamers who want it all.

LIGHTNING GEN 4 PCI-E
Doubling over the previous generation, the bandwidth of a x16 interface can reach 64GB/s.

REINFORCED,
HEAVY SOLDERED CONNECTIONS
Secure to the motherboard with extra solder points and support the weight of heavy graphics cards.

  • Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors for LGA 1700 socket
  • Supports DDR5 Memory, Dual Channel DDR5 6800+MHz (OC)
  • Enhanced Power Design: 12+1 Duet Rail Power System with P-PAK, 8-pin + 4-pin CPU power connectors, Core Boost, Memory Boost
  • Premium Thermal Solution: Extended Heatsink, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads are built for high performance system and non-stop gaming experience
  • Lightning Fast Game experience: PCIe 4.0 slot, Lightning Gen 4 x4 M.2 with M.2 Shield Frozr, USB 3.2 Gen 2 10G
  • 2.5G LAN with Wi-Fi 6E Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
  • High Quality PCB: 6-layer PCB made by 2oz thickened copper
  • Audio Boost: Reward your ears with studio grade sound quality for the most immersive gaming experience

Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.

Specificaties

Processor

Processorfabrikant*
Intel
Processor socket*
LGA 1700
Compatibele processors*
Intel® Celeron®, Intel® Pentium® Gold
Max. aantal SMP-processoren
1
Supported processor sockets
LGA 1700

Geheugen

Ondersteunde geheugen types*
DDR5-SDRAM
Aantal geheugenslots*
4
Geheugen slots type
DIMM
Geheugen kanaal
Dubbelkanaals
Non-ECC
Ja
Supported memory clock speeds
6800, 6600, 6400, 6200, 6000, 5800, 5600, 5400, 5200, 5000, 4800 MHz
Ondersteunde geheugenkloksnelheid (max)
6800 MHz
Maximum intern geheugen*
192 GB

Opslag-controllers

Ondersteunde opslagstationinterfaces*
M.2, SATA III
RAID support
Ja
Soorten RAID
0, 1, 5, 10

Interne aansluitingen

USB 2.0 aansluitingen*
4
USB 3.2 Gen 1 (3.1 Gen 1)-aansluitingen*
4
USB 3.2-connectoren (3.1 Gen 2)*
1
Aantal SATA III connectors*
4
Aansluiting voor audiopaneel aan voorzijde
Ja
Voorpaneel-connector
Ja
ATX Power connector (24-pin)
Ja
Aansluiting voor CPU koeler
Ja
TPM connector
Ja
RGB LED-aansluitrail
Ja

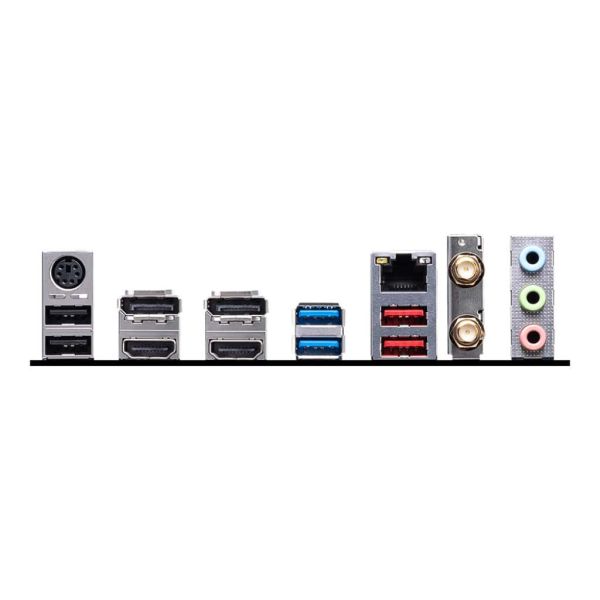

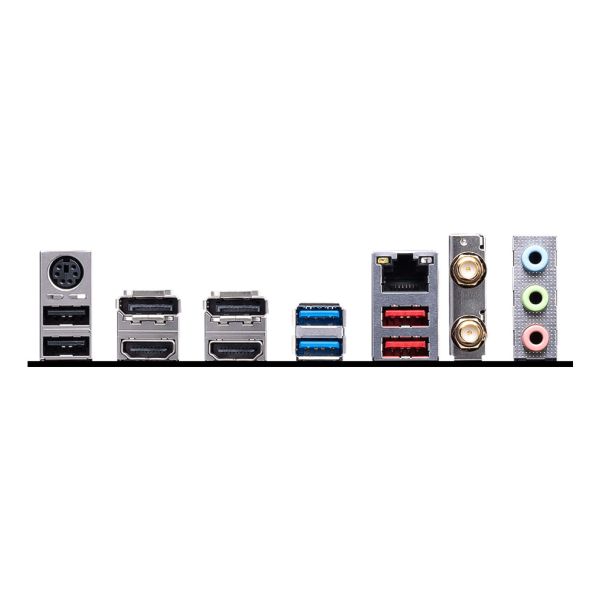

Aansluitingen achterzijde

Aantal USB 2.0-poorten*
2
Aantal poorten USB 3.2 Gen 1 (3.1 Gen 1) Type A*
2
Aantal poorten USB 3.2 Gen 2 (3.1 Gen 2) Type A*
2
Aantal Ethernet LAN (RJ-45)-poorten*
1

Aansluitingen achterzijde

Aantal HDMI-poorten*
2
HDMI versie
2.1
Aantal DisplayPorts
2
DisplayPort versie
1.4

Netwerk

Ethernet LAN
Ja
Ethernet interface type
2.5 Gigabit Ethernet
Wifi*
Ja
Wifi-standaard
Wi-Fi 6E (802.11ax)
Wi-Fi-standaarden
802.11a, 802.11ad, 802.11b, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax)
Bluetooth
Ja
Bluetooth-versie
5.3

Kenmerken

Chipset moederbord*
Intel B760
Audiochip
Realtek ALC897
Audio-uitgangskanalen*
7.1 kanalen
Component voor*
PC
Moederbord form factor*
micro ATX
Moederbord chipset familie*
Intel
Type stroombron
ATX
Ondersteunt Windows
Windows 10, Windows 11

Uitbreidingsmodules

PCI Express x1 (Gen 3.x) slots
2

BIOS

BIOS type*
UEFI AMI
Grootte BIOS-geheugen
256 Mbit
ACPI version
6.4
Clear CMOS jumper
Ja
Systeem Management BIOS (SMBIOS) versie
3.5

Gewicht en omvang

Breedte
243,8 mm
Diepte
243,8 mm
