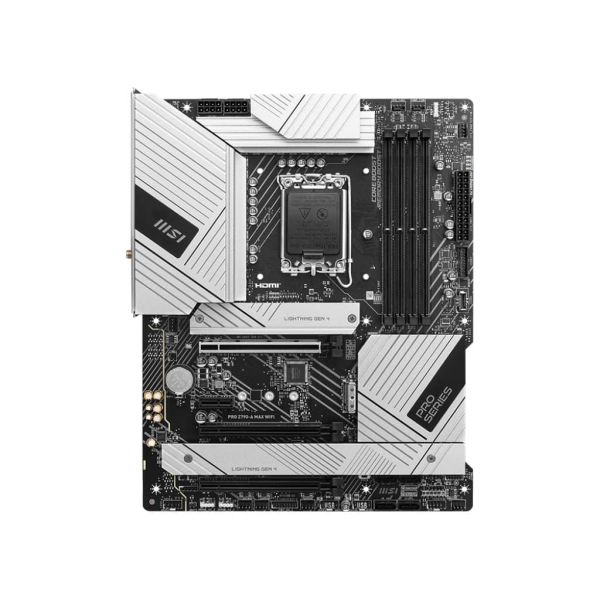

MSI PRO Z790-A MAX WIFI moederbord Intel Z790 LGA 1700 ATX

MSI PRO Z790-A MAX WIFI, Intel, LGA 1700, Intel® Celeron®, Intel® Pentium®, Intel® Pentium® Gold, LGA 1700, DDR5-SDRAM, 128 GB

Ruim op voorraad

Fabrikant MSI
MPN 7E07-014R
EAN 4711377139939
€ 310,00 excl. BTW

MSI PRO Z790-A MAX WIFI moederbord Intel Z790 LGA 1700 ATX

MSI PRO Z790-A MAX WIFI ATX / LGA 1700 / 4xDDR5-7800 / 6x SATA, 4x M.2, 1x DP / 6x USB 2.0, 9x USB 3.2

Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.

Specificaties

Processor

Processorfabrikant*
Intel
Processor socket*
LGA 1700
Compatibele processors*
Intel® Celeron®, Intel® Pentium®, Intel® Pentium® Gold
Supported processor sockets
LGA 1700

Geheugen

Ondersteunde geheugen types*
DDR5-SDRAM
Aantal geheugenslots*
4
Geheugen kanaal
Dubbelkanaals
Non-ECC
Ja
Supported memory clock speeds
4800,5000,5200,5400,5600,5800,6000,6200,6400,6600,6800,7000 MHz
Ondersteunde geheugenkloksnelheid (max)
7200 MHz
Maximum intern geheugen*
128 GB
Niet gebufferd geheugen
Ja

Opslag-controllers

Ondersteunde types opslag-drives
HDD & SSD
Ondersteunde opslagstationinterfaces*
M.2, PCI Express
Aantal storage drives ondersteund
10
Soorten RAID
0, 1, 5, 10

Interne aansluitingen

USB 2.0 aansluitingen*
4
USB 3.2 Gen 1 (3.1 Gen 1)-aansluitingen*
2
USB 3.2-connectoren (3.1 Gen 2)*
1
Aantal SATA III connectors*
6
Aansluiting voor audiopaneel aan voorzijde
Ja
Voorpaneel-connector
Ja
Aansluiting voor CPU koeler
Ja
Chassis intrusion aansluiting
Ja
TPM connector
Ja
RGB LED-aansluitrail
Ja

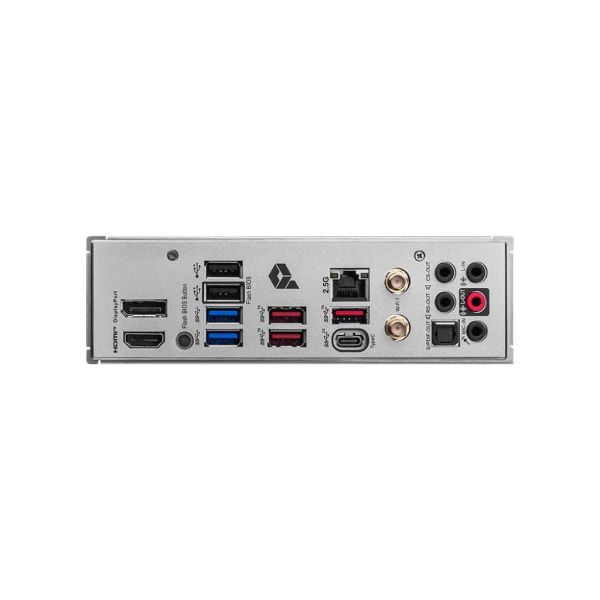

Aansluitingen achterzijde

Aantal USB 2.0-poorten*
2
Aantal poorten USB 3.2 Gen 1 (3.1 Gen 1) Type A*
2
Aantal poorten USB 3.2 Gen 2 (3.1 Gen 2) Type A*
3

Aansluitingen achterzijde

Aantal USB 3.2 Gen 2.2 Type-C-poorten
1
Aantal Ethernet LAN (RJ-45)-poorten*
1
Aantal HDMI-poorten*
1
Aantal DisplayPorts
1
S/PDIF-uitgang
Ja

Netwerk

Ethernet LAN
Ja
Ethernet interface type
2.5 Gigabit Ethernet
Wifi*
Ja
Wifi-standaard
Wi-Fi 6 (802.11ax)
Wi-Fi-standaarden
802.11a, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)
Bluetooth
Ja
Bluetooth-versie
5.3

Kenmerken

Chipset moederbord*
Intel Z790
Audio-uitgangskanalen*
7.1 kanalen
Component voor*
PC
Moederbord form factor*
ATX
Moederbord chipset familie*
Intel
Ondersteunt Windows
Windows 10 x64, Windows 11 x64

Uitbreidingsmodules

Aantal M.2 (M) slots
4

BIOS

BIOS type*
UEFI AMI
Grootte BIOS-geheugen
256 Mbit
Versie Desktop Management Interface (DMI)
6.4
Systeem Management BIOS (SMBIOS) versie
3.5

Gewicht en omvang

Breedte
304,8 mm
Diepte
243,8 mm

Inhoud van de verpakking

Meegeleverde kabels
SATA
