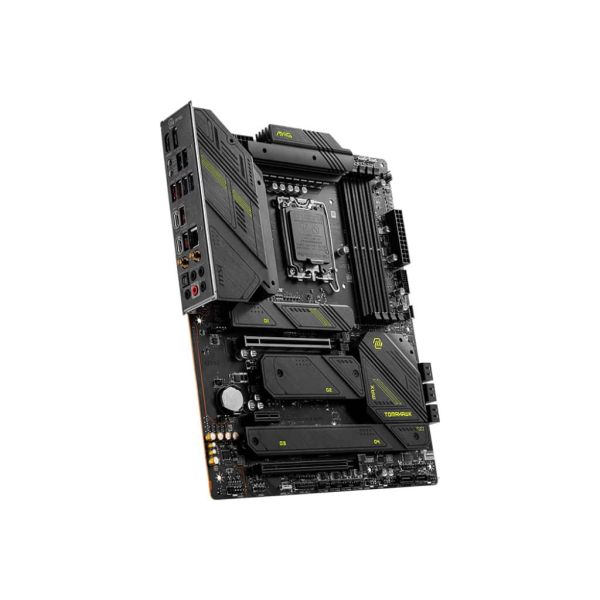

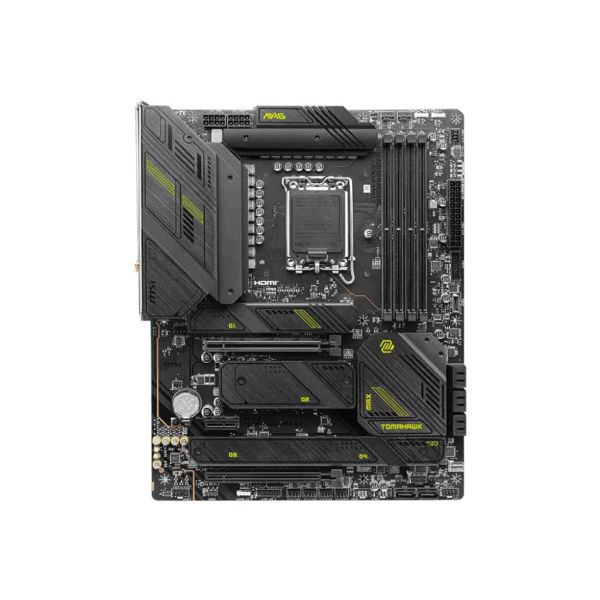

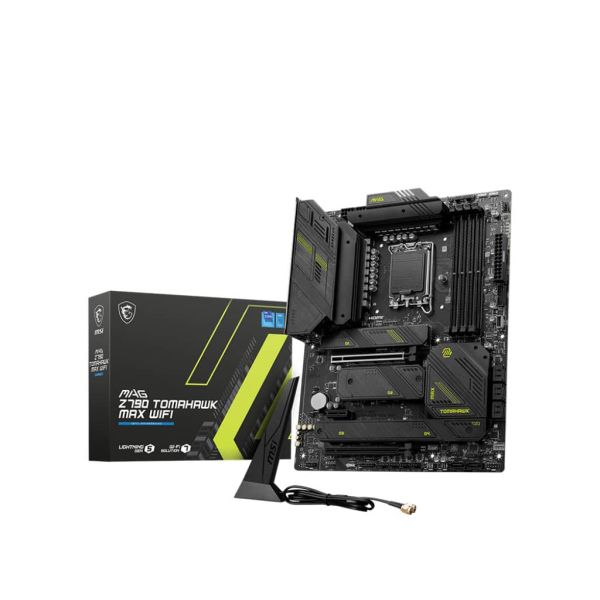

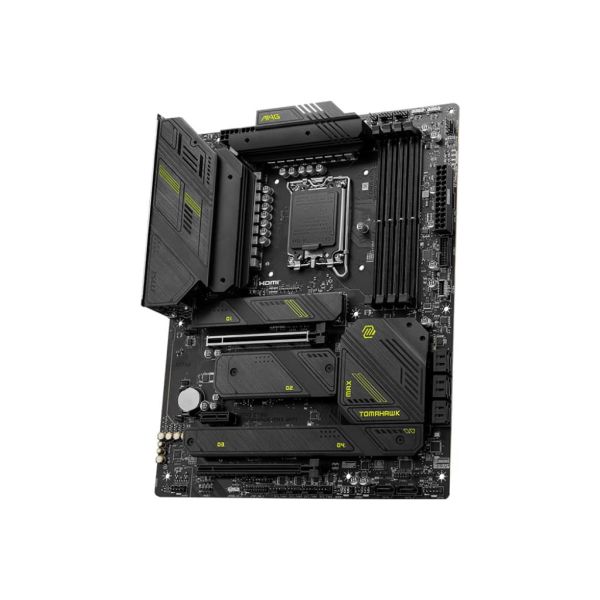

MSI Z790 TOMAHAWK MAX WIFI Intel Z790 LGA 1700 ATX

MSI Z790 TOMAHAWK MAX WIFI, Intel, LGA 1700, Intel® Celeron®, Intel® Pentium® Gold, LGA 1700, DDR5-SDRAM, 128 GB

Niet op voorraad

Fabrikant MSI
MPN 7E25-002R
EAN 4711377132855
€ 220,00 excl. BTW

MSI Z790 TOMAHAWK MAX WIFI Intel Z790 LGA 1700 ATX

MSI MAG Z790 TOMAHAWK MAX WIFI ATX / LGA 1700 / 4xDDR5-7800 / 8x SATA, 4x M.2, 1x DP / 4x USB 2.0, 13x USB 3.2

Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.

Specificaties

Processor

Processorfabrikant*
Intel
Processor socket*
LGA 1700
Compatibele processors*
Intel® Celeron®, Intel® Pentium® Gold
Supported processor sockets
LGA 1700

Geheugen

Ondersteunde geheugen types*
DDR5-SDRAM
Aantal geheugenslots*
4
Geheugen kanaal
Dubbelkanaals
Non-ECC
Ja
Supported memory clock speeds
4800,5200,5400,5600,5800,6000,6200,6400,6600,6800,7000,7200 MHz
Ondersteunde geheugenkloksnelheid (max)
5333 MHz
Maximum intern geheugen*
128 GB
Niet gebufferd geheugen
Ja

Opslag-controllers

Ondersteunde types opslag-drives
HDD & SSD
Ondersteunde opslagstationinterfaces*
M.2, PCI Express
Interne opslagcapaciteit
10 GB
RAID support
Ja
Soorten RAID
0, 5, 10

Grafisch

Ondersteuning voor parallel processing*
Niet ondersteund

Interne aansluitingen

USB 2.0 aansluitingen*
4
USB 3.2 Gen 1 (3.1 Gen 1)-aansluitingen*
2
USB 3.2-connectoren (3.1 Gen 2)*
1
Aantal SATA III connectors*
8
Aansluiting voor audiopaneel aan voorzijde
Ja
Voorpaneel-connector
Ja
Aansluiting voor CPU koeler
Ja
Chassis intrusion aansluiting
Ja
TPM connector
Ja
RGB LED-aansluitrail
Ja

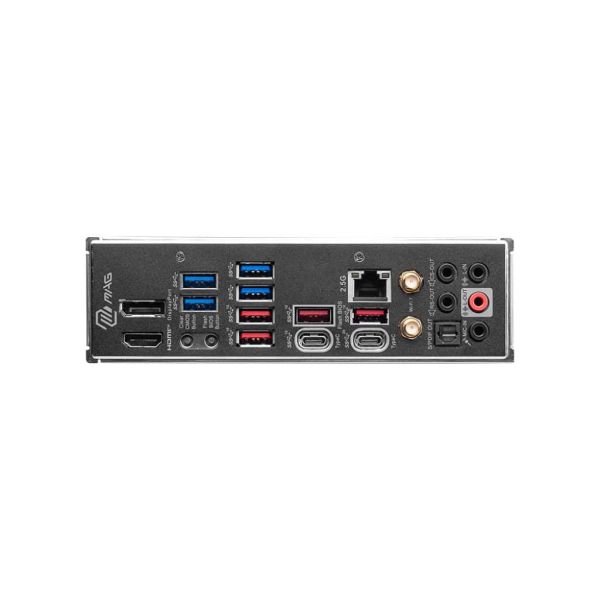

Aansluitingen achterzijde

Aantal poorten USB 3.2 Gen 1 (3.1 Gen 1) Type A*
4
Aantal poorten USB 3.2 Gen 2 (3.1 Gen 2) Type A*
4
Aantal poorten USB 3.2 Gen 2 (3.1 Gen 2) Type C*
1

Aansluitingen achterzijde

Aantal USB 3.2 Gen 2.2 Type-C-poorten
1
Aantal Ethernet LAN (RJ-45)-poorten*
1
Aantal HDMI-poorten*
1
HDMI versie
2.1
Aantal DisplayPorts
1
DisplayPort versie
1.4
S/PDIF-uitgang
Ja

Netwerk

Ethernet LAN
Ja
Ethernet interface type
2.5 Gigabit Ethernet
Wifi*
Ja
Wifi-standaard
Wi-Fi 6 (802.11ax)
Wi-Fi-standaarden
802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)
Bluetooth
Ja
Bluetooth-versie
5.3

Kenmerken

Chipset moederbord*
Intel Z790
Audio-uitgangskanalen*
7.1 kanalen
Kleur van het product
Zwart
Component voor*
PC
Moederbord form factor*
ATX
Moederbord chipset familie*
Intel
Type koeling
Passief
Ondersteunt Windows
Windows 10 x64, Windows 11 x64

Uitbreidingsmodules

Aantal M.2 (M) slots
4

BIOS

BIOS type*
EFI AMI
Grootte BIOS-geheugen
256 Mbit

Gewicht en omvang

Breedte
243,8 mm
Diepte
304,8 mm

Inhoud van de verpakking

Meegeleverde kabels
SATA
