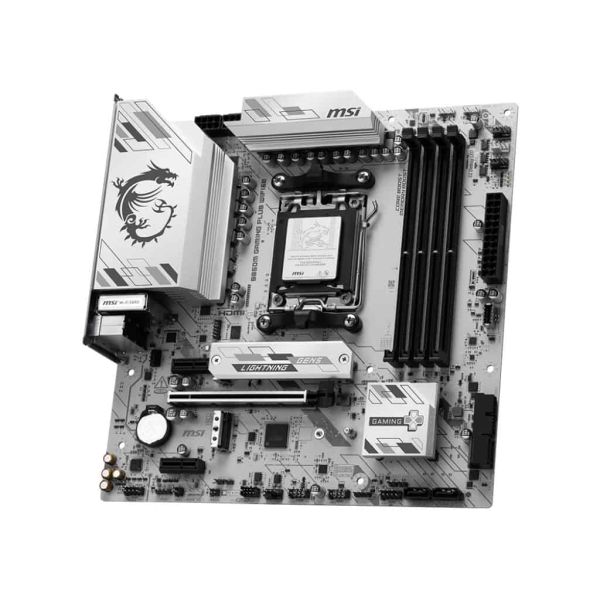

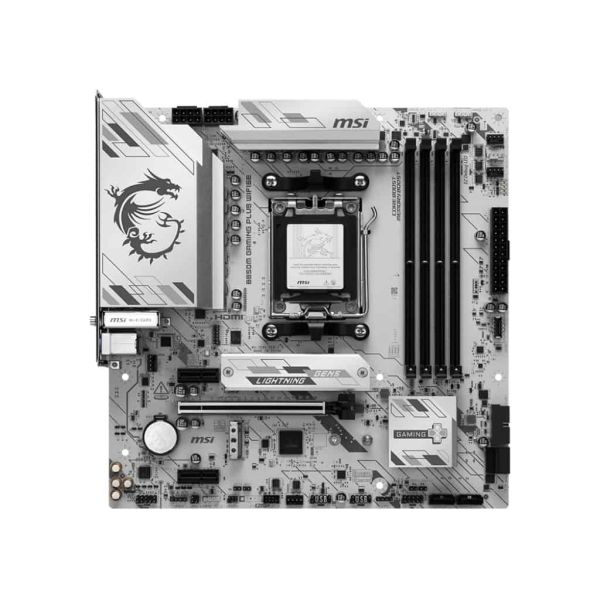

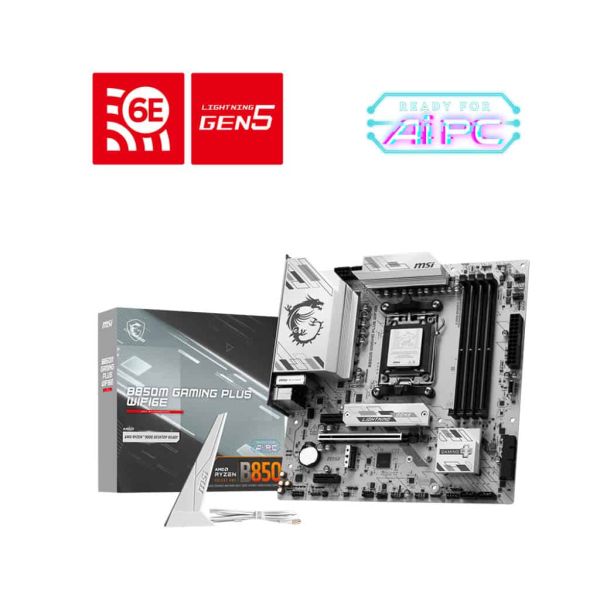

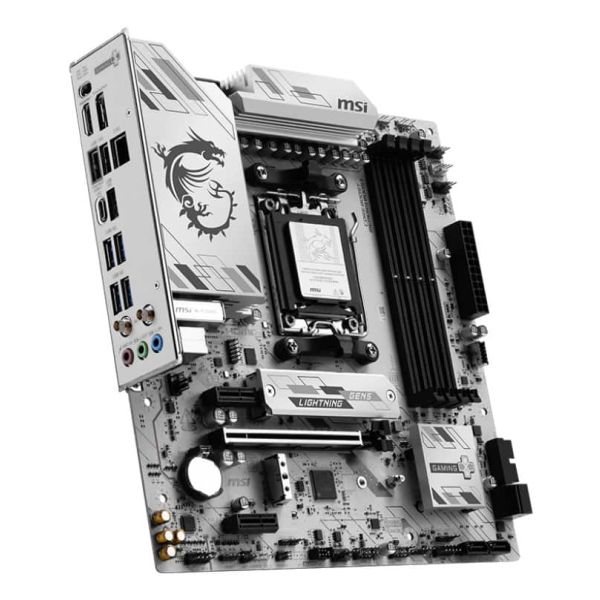

MSI B850M GAMING PLUS WIFI6E AMD B850 Socket AM5 micro ATX

MSI B850M GAMING PLUS WIFI6E, AMD, Socket AM5, AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series, Socket AM5, DDR5-SDRAM, 256 GB

Niet op voorraad

Fabrikant MSI
MPN B850MGMNGPLSWIFI6E
EAN 4711377365345
€ 153,00 excl. BTW

MSI B850M GAMING PLUS WIFI6E AMD B850 Socket AM5 micro ATX

MSI B850M GAMING PLUS WIFI6E

Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.

Specificaties

Processor

Processorfabrikant*
AMD
Processor socket*
Socket AM5
Compatibele processors*
AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series
Supported processor sockets
Socket AM5

Geheugen

Ondersteunde geheugen types*
DDR5-SDRAM
Aantal geheugenslots*
4
Geheugen slots type
DIMM
Geheugen kanaal
Dubbelkanaals
ECC-compatibiliteit
Niet-ECC
Supported memory clock speeds
4800,6000,6400,8200 MHz
Ondersteunde geheugenkloksnelheid (max)
8200 MHz
Maximum intern geheugen*
256 GB

Opslag-controllers

Ondersteunde types opslag-drives
HDD & SSD
Ondersteunde opslagstationinterfaces*
M.2
Maximum aantal HDD's per behuizing
4
Aantal storage drives ondersteund
7
RAID support
Ja
Soorten RAID
0, 1, 10

Grafisch

Ingebouwde grafische adapter
Nee

Interne aansluitingen

USB 2.0 aansluitingen*
4
USB 3.2 Gen 1 (3.1 Gen 1)-aansluitingen*
2
USB 3.2-connectoren (3.1 Gen 2)*
1
Aantal SATA III connectors*
4
Totaal aantal SATA-connectoren
4
Aansluiting voor audiopaneel aan voorzijde
Ja
Voorpaneel-connector
Ja
ATX Power connector (24-pin)
Ja
Aansluiting voor CPU koeler
Ja
Aantal CPU-ventilatoraansluitingen
2
Aantal waterpompaansluitingen
1
RGB LED-aansluitrail
Ja
Aantal RGB LED-pinheaders
3

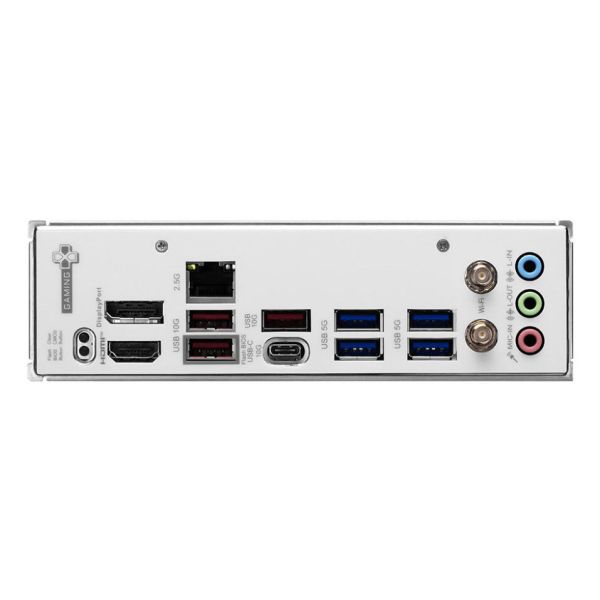

Aansluitingen achterzijde

Aantal poorten USB 3.2 Gen 1 (3.1 Gen 1) Type A*
4
Aantal poorten USB 3.2 Gen 2 (3.1 Gen 2) Type A*
3
Aantal poorten USB 3.2 Gen 2 (3.1 Gen 2) Type C*
2
Aantal Ethernet LAN (RJ-45)-poorten*
1
Aantal HDMI-poorten*
1

Aansluitingen achterzijde

HDMI versie
2.1

Netwerk

Ethernet LAN
Ja
Ethernet interface type
5 Gigabit Ethernet
LAN controller
Realtek RTL8126
Wifi*
Ja
Wifi-standaard
Wi-Fi 7 (802.11be)
Wi-Fi-standaarden
802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax), Wi-Fi 7 (802.11be)
Bluetooth
Ja
Bluetooth-versie
5.4

Kenmerken

Chipset moederbord*
AMD B850
Audiochip
Realtek ALC897
Audio-uitgangskanalen*
7.1 kanalen
Kleur van het product
Zwart
Component voor*
PC
Moederbord form factor*
micro ATX
Moederbord chipset familie*
AMD
Ondersteunt Windows
Windows 11 x64

Uitbreidingsmodules

PCI Express x4 slots
1
PCI Express x16 slots
1
PCI Express x16 (Gen 3.x) slots
1
PCI Express x16 (Gen 4.x) sleuven
1
PCI Express x16 (Gen 5.x) sleuven
1
Aantal M.2 (M) slots
3
1e M.2 grootste sleutelgrootte
2280
1e M.2 hoogste PCI Express-generatie
5.0
2e M.2 grootste sleutelgrootte
2280
2e M.2 hoogste PCI Express-generatie
5.0
3e M.2 grootste sleutelgrootte
2280
3e M.2 hoogste PCI Express-generatie
4.0

BIOS

BIOS type*
UEFI AMI
Grootte BIOS-geheugen
256 Mbit
ACPI version
6.5
Systeem Management BIOS (SMBIOS) versie
3.7

Gewicht en omvang

Breedte
243,8 mm
Diepte
243,8 mm
