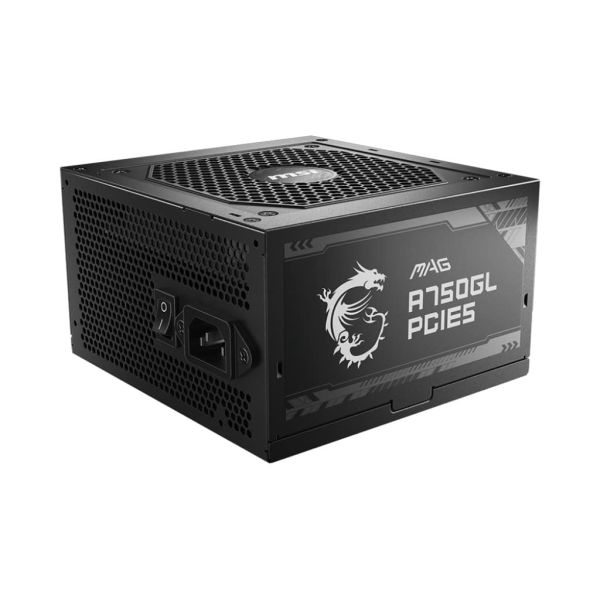

MSI MAG A750GL PCIE5 power supply unit 750 W 20+4 pin ATX ATX Zwart

MSI MAG A750GL PCIE5, 750 W, 100 - 240 V, 47 - 63 Hz, 8 A, 4 A, Actief

Ruim op voorraad

Fabrikant MSI
MPN MAG A750GL PCIE5
EAN 4711377084284
€ 110,00 excl. BTW

MSI MAG A750GL PCIE5 power supply unit 750 W 20+4 pin ATX ATX Zwart

The MAG series fights alongside gamers in pursuit of honor. With added military-inspired elements in these gaming products, they were reborn as the symbol of sturdiness and durability.

ATX 3.0 COMPATIBLE
It has an output port that is compliant with PCIe 5.0 and Intel PSDG(Power Supply Design Guide) ATX 3.0, also the MAG A750GL PCIE5 power supply can handle up to 2x total power excursion and 3x GPU power excursion.

80 PLUS GOLD CERTIFIED
The efficiency of your power supply directly influences your system’s performance and your power consumption. The 80 PLUS Gold certification promises lower energy consumption and higher efficiency.

COMPACT SIZING
Smaller than typical PSUs on the market, this power supply unit that can save space and make it easier to organize cables in the computer case by freeing up more room inside.

ONLY WHAT YOU NEED
The connectors that required by the build need to be used, significantly reducing cable clutter and simplifying the system’s overall build. Additionally, the included cable pack provides a storage solution for any unused cables.

ALL THE MORE ORGANIZED
Organizing cables is often the most bothersome part of building a PC. The flat cables make cable management easier and less of headache! Thanks to the flat cables, the entire system can be more organized and has more room for unobstructed airflow.

FLUID DYNAMIC BEARING

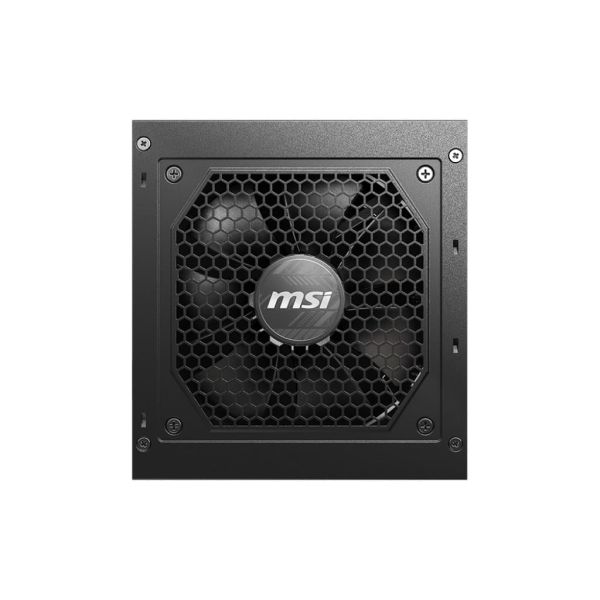

The power supply’s fan sports a fluid dynamic bearing that perfectly balances cooling performance and noise level.

DC TO DC & FULL BRIDGE
DC to DC and Full bridge be combined to achieve higher conversion efficiency, stable output voltage, and quick voltage adjustment for different usage scenarios, thus providing a stable power supply design.

THE POWER YOU HAVE
The single rail supply of power can properly deliver the power you need. For high-performance graphics cards and CPUs, this power supply's 5 CPU & PCI-E slots are more than plenty.

PROTECTION MECHANISMS
To make sure the entire system can operate safely and stably at all times, the power supply comes with a number of protection mechanisms to give you the best peace of mind.
  • ATX 3.0 compatible, native PCIe 5.0 connector
  • Supports NVIDIA® GeForce RTXTM 40 Series graphics cards
  • Full modular design,Flat cables
  • 80 Plus Gold certified for high efficiency
  • Active PFC design,Industrial level protection with OVP,OCP,OPP,OTP, SCP,UVP
  • 120mm Fluid Dynamic Bearing Fan
  • LLC Full Bridge Topology with DC-DC module desig

Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.

Specificaties

Energie

Totaal vermogen*
750 W
AC-ingangsspanning*
100 - 240 V
AC-ingangsfrequentie
47 - 63 Hz
Maximale ingangsstroom (@110V)
8 A
Maximale ingangsstroom (@220V)
4 A
Power Factor Correctie (PFC) type
Actief
Gecombineerd vermogen (+3.3V)
110 W
Gecombineerd vermogen (+12V)
744 W
Gecombineerd vermogen (+5V)
110 W
Gecombineerd vermogen (-12V)
3,6 W
Gecombineerd vermogen(+5Vsb)
12,5 W
Max huidige output (+3.3V)
20 A
Max huidige output(+12V)
62 A
Max huidige output (+5V)
20 A
Max huidige output (-12V)
0,3 A
Max huidige output (+5Vsb)
2,5 A
Efficientie
90 procent
Stroomspanning bescherming
Overstroom, Te hoog vermogen, Overspanning, Oververhitting, Kortsluiting

Poorten & interfaces

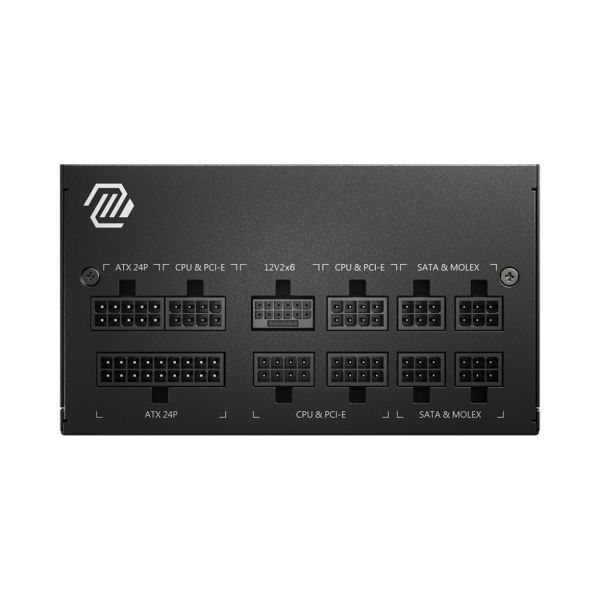

Motherboard power connector*
20+4 pin ATX
Lengte stroomkabel moederbord
45 cm
Aantal SATA power connectors
8
Peripheral (Molex) power connectors (4-pin)*
4
EPS power connector (8-pin)
Nee
EPS-voedingsconnector (4+4 pin)
Ja

Poorten & interfaces

PCI Express power connectors (6+2 pin)
3
CPU power connector (4+4 pin)
Ja
ATX Power connector (24-pin)
Nee
ATX power connector (20+4 pin)
Nee
Bekabelingstype
Modulair

Prestatie

80 PLUS certificatie*
80 PLUS Gold
Bedoeld voor*
PC
Vormfactor van de voeding (PSU)*
ATX

Design

Kleur van het product
Zwart
Type koeling
Actief
Ventilator diameter
12 cm
Aantal ventilatoren
1 ventilator(en)
Belichting
Nee
Aan/uitschakelaar
Ja

Gewicht en omvang

Breedte
150 mm
Diepte
140 mm
Hoogte
86 mm

Verpakking

Type verpakking
Doos

Logistieke gegevens

Code geharmoniseerd systeem (HS)
84733020
