MSI MAG B860 TOMAHAWK WIFI moederbord Intel B860 LGA 1851 (Socket V1) ATX

MSI MAG B860 TOMAHAWK WIFI, Intel, LGA 1851 (Socket V1), Intel Core Ultra (Series 2), LGA 1851, 256 GB, DDR5-SDRAM

Niet op voorraad

Fabrikant MSI
MPN MAGB860TOMAHAWKWIF
EAN 4711377279642
€ 237,00 excl. BTW

MSI MAG B860 TOMAHAWK WIFI moederbord Intel B860 LGA 1851 (Socket V1) ATX

MSI MB MAG B860 TOMAHAWK WIFI

Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.

Specificaties

Processor

Processorfabrikant*
Intel
Processor socket*
LGA 1851 (Socket V1)
Compatibele processors*
Intel Core Ultra (Series 2)
Supported processor sockets
LGA 1851
Maximaal intern geheugen ondersteund door processor
256 GB

Geheugen

Ondersteunde geheugen types*
DDR5-SDRAM
Aantal geheugenslots*
4
Geheugen slots type
DIMM
Geheugen kanaal
Dubbelkanaals
ECC-compatibiliteit
Niet-ECC
Supported memory clock speeds
5600,6400,7200,9200 MHz
Ondersteunde geheugenkloksnelheid (max)
9200 MHz
Maximum intern geheugen*
256 GB

Opslag-controllers

Ondersteunde types opslag-drives
HDD & SSD
Ondersteunde opslagstationinterfaces*
M.2, Micro SATA III
Maximum aantal HDD's per behuizing
4
Aantal storage drives ondersteund
7
RAID support
Ja
Soorten RAID
0, 1, 5, 10

Grafisch

Ingebouwde grafische adapter
Nee

Interne aansluitingen

USB 2.0 aansluitingen*
4
USB 3.2 Gen 1 (3.1 Gen 1)-aansluitingen*
2
USB 3.2-connectoren (3.1 Gen 2)*
1
Aantal SATA III connectors*
4
Totaal aantal SATA-connectoren
4
Aansluiting voor CPU koeler
Ja
Aantal CPU-ventilatoraansluitingen
1
Aantal waterpompaansluitingen
1
RGB LED-aansluitrail
Ja
Aantal RGB LED-pinheaders
3

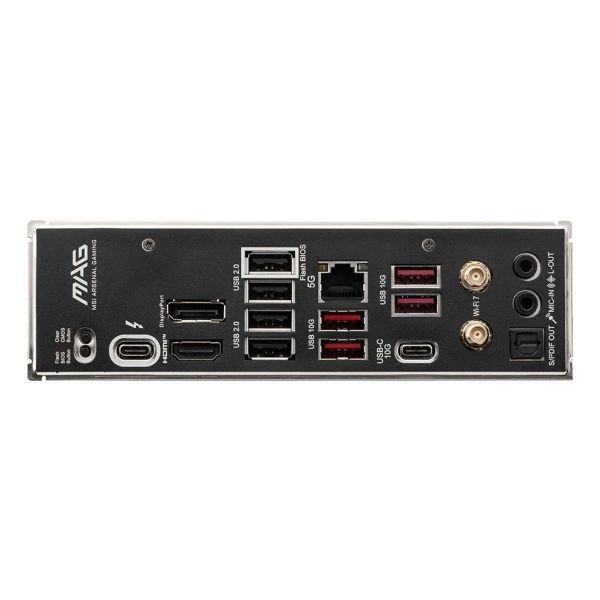

Aansluitingen achterzijde

Aantal USB 2.0-poorten*
4
Aantal poorten USB 3.2 Gen 2 (3.1 Gen 2) Type A*
4
Aantal poorten USB 3.2 Gen 2 (3.1 Gen 2) Type C*
1
Aantal USB 3.2 Gen 2.2 Type-C-poorten
1
Aantal Ethernet LAN (RJ-45)-poorten*
1

Aansluitingen achterzijde

Aantal HDMI-poorten*
1
HDMI versie
2.1

Netwerk

Ethernet LAN
Ja
Ethernet interface type
5 Gigabit Ethernet
Wifi*
Ja
Wifi-standaard
Wi-Fi 7 (802.11be)
Wi-Fi-standaarden
802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax), Wi-Fi 7 (802.11be)
WLAN-controller-model
Killer Wi-Fi 7 1750x
Bluetooth
Ja
Bluetooth-versie
5.4

Kenmerken

Chipset moederbord*
Intel B860
Audiochip
Realtek ALC897
Audio-uitgangskanalen*
7.1 kanalen
Kleur van het product
Zwart
Component voor*
PC
Moederbord form factor*
ATX
Moederbord chipset familie*
AMD
Ondersteunt Windows
Windows 11 x64

Uitbreidingsmodules

PCI Express x1 slots
1
PCI Express x16 (Gen 4.x) sleuven
1
PCI Express x16 (Gen 5.x) sleuven
1
Aantal M.2 (M) slots
3
1e M.2 grootste sleutelgrootte
2280
1e M.2 hoogste PCI Express-generatie
5.0
2e M.2 grootste sleutelgrootte
22110
2e M.2 hoogste PCI Express-generatie
4.0
3e M.2 grootste sleutelgrootte
2280
3e M.2 hoogste PCI Express-generatie
4.0

BIOS

BIOS type*
UEFI AMI
Grootte BIOS-geheugen
256 Mbit
ACPI version
6.5
Systeem Management BIOS (SMBIOS) versie
3.7

Gewicht en omvang

Breedte
243,8 mm
Diepte
304,8 mm
