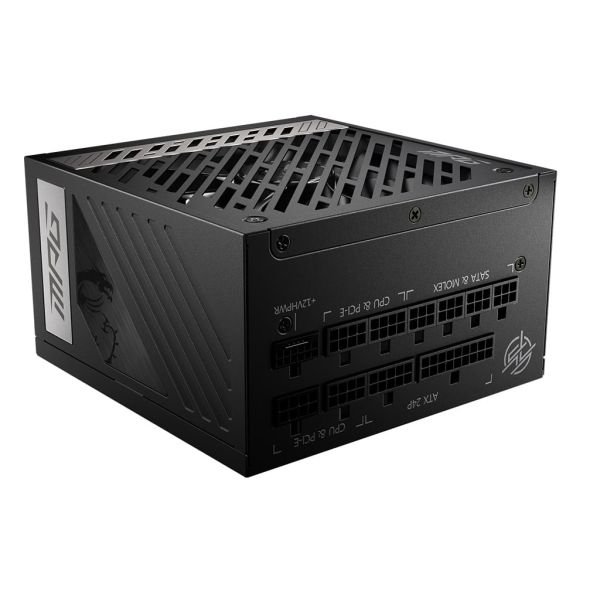

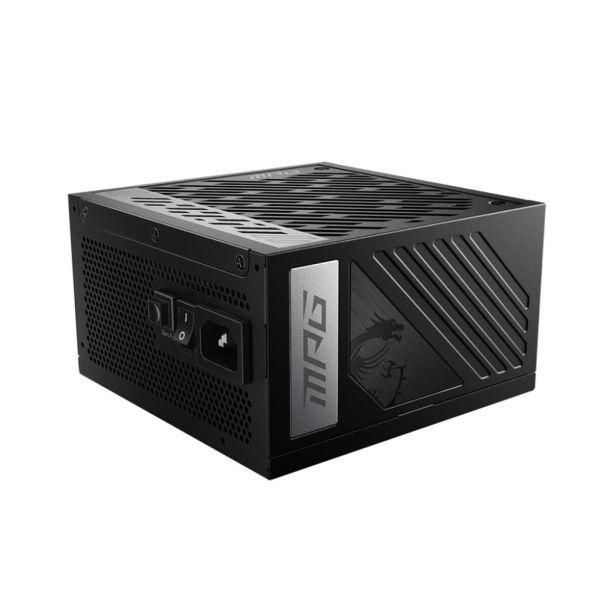

MSI MPG A1000G PCIE5 power supply unit 1000 W 20+4 pin ATX ATX Zwart

MSI MPG A1000G PCIE5, 1000 W, 100 - 240 V, 50 - 60 Hz, Actief, 120 W, 1000 W

Ruim op voorraad

Fabrikant MSI
MPN MPG A1000G PCIE5
EAN 4719072972196
€ 182,00 excl. BTW

MSI MPG A1000G PCIE5 power supply unit 1000 W 20+4 pin ATX ATX Zwart

GO AHEAD, POP YOUR STYLE
The MPG series brings out fashionable products by showing extremely unique styles and expressing a conceited attitude towards the challenge of the gaming world. With extraordinary performance and style, the MPG series defines the future of gaming fashion.

The MPG power supply showcases unique styles and color schemes with laser-like lines to create a masterful art piece with indivuality, fully expressing the charm of MPG.

ATX 3.0 compatible
It has an output port that is compliant with PCIe 5.0 and Intel PSDG (Power Supply Design Guide) ATX 3.0, also the power supply can hold up to 2x total power excursion and 3x GPU power excursion.

level up your GAME
With native 16 PIN PCIe connector the power supply is ready for Nvidia® GeForce RTX® 40 Series graphics cards. It can freely pipe up to 600W of power to PCIe 5.0 graphics cards.

80 PLUS GOLD CERTIFIED
The efficiency of your power supply directly influences your system’s performance and your power consumption. The 80 PLUS Gold certification promises lower energy consumption and higher efficiency.

SINGLE-RAILED DESIGN
The single rail supply of power can properly deliver the power you need. For high-performance graphics cards and CPUs, this power supply's 5 CPU & PCI-E slots are more than plenty.

GPU SUPPORT FOR ALL
The gaming power supply can support the NVIDIA and AMD graphics cards. Prepared for the highest of requirements, the MPG power supply’s IO supports can support different and versatile ways of connection according to the power connector design of different graphics cards.

100% JAPANESE 105°C CAPACITORS
Aiming for unwavering product quality and performance stability, this power supply comes with 100% Japanese 105° C capacitors and solid capacitors.

FULLY MODULAR
The power supply's fully modular design means that only the connectors required by the build need to be used, significantly reducing cable clutter and simplifying the system’s overall build.

COMPACT SIZING
Smaller than typical PSUs on the market, the power supply’s compact sizing makes it an excellent fit for most PC cases.

ALL THE MORE ORGANIZED

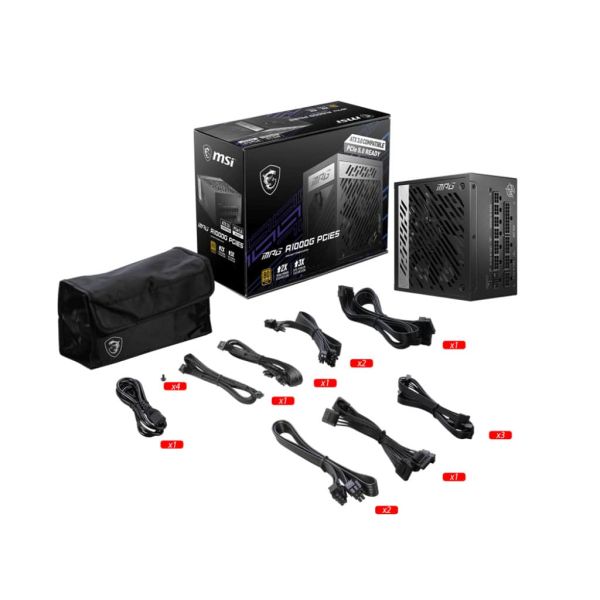

All of the power supply’s cables are flat and in black. The flat cables make cable management easier and less of headache! Thanks to the flat cables, the entire system can be more organized and has more room for unobstructed airflow. Use the cables you need, and store the rest in the included cable bag.



  • Supports Nvidia® GeForce RTXTM 40 Series graphics cards
  • Full modular design
  • Flat cables
  • 80 Plus Gold certified for high efficiency
  • 100% all Japanese 105oC capacitor
  • Active PFC design
  • Industrial level protection with OVP,OCP,OPP,OTP, SCP,UVP
  • LLC Half Bridge Topology with DC-DC module design

Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.

Specificaties

Energie

Totaal vermogen*
1000 W
AC-ingangsspanning*
100 - 240 V
AC-ingangsfrequentie
50 - 60 Hz
Power Factor Correctie (PFC) type
Actief
Gecombineerd vermogen (+3.3V)
120 W
Gecombineerd vermogen (+12V)
1000 W
Gecombineerd vermogen (+5V)
120 W
Gecombineerd vermogen (-12V)
3,6 W
Gecombineerd vermogen(+5Vsb)
15 W
Max huidige output (+3.3V)
22 A
Max huidige output(+12V)
83,5 A
Max huidige output (+5V)
22 A
Max huidige output (-12V)
0,3 A
Max huidige output (+5Vsb)
3 A
Stroomspanning bescherming
Overstroom, Te hoog vermogen, Overspanning, Oververhitting, Kortsluiting, Onder spanning

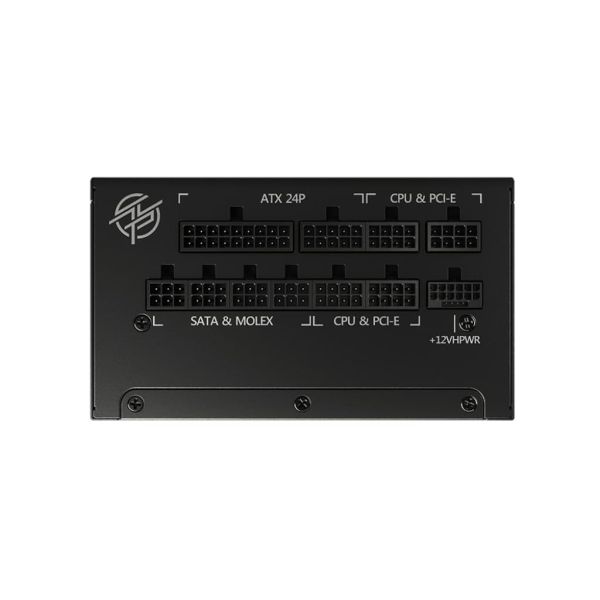

Poorten & interfaces

Motherboard power connector*
20+4 pin ATX
Lengte stroomkabel moederbord
60 cm
Aantal SATA power connectors
12
Lengte SATA-stroomkabel
500,650,700,850 mm
Peripheral (Molex) power connectors (4-pin)*
4
Lengte stroomkabel randapparaat (Molex)
1100,500,650,700,850 mm
EPS-voedingsconnector (4+4 pin)
Ja

Poorten & interfaces

PCI Express power connectors (6+2 pin)
6
PCI Express-voedingsconnectoren (16-pins)
1
Lengte PCI Express-stroomkabel
75 cm
Aansluiting voor diskettestation
Ja
Bekabelingstype
Modulair

Prestatie

80 PLUS certificatie*
80 PLUS Gold
Bedoeld voor*
Pc/server
Vormfactor van de voeding (PSU)*
ATX
ATX version
3.0
Bearing technologie
FDB

Design

Kleur van het product
Zwart
Type koeling
Actief
Ventilator diameter
13,5 cm
Aantal ventilatoren
1 ventilator(en)

Gewicht en omvang

Breedte
150 mm
Diepte
150 mm
Hoogte
86 mm

Overige specificaties

EPS-kabellengte
70 cm
