MSI MPG A1250GS PCIE5 power supply unit 1250 W 20+4 pin ATX ATX Zwart

MSI MPG A1250GS PCIE5, 1250 W, 100 - 240 V, 50/60 Hz, Actief, 1249 W, 20 W

Ruim op voorraad

Fabrikant MSI
MPN MPG A1250GS PCIE5
EAN 4711377243766
€ 336,00 excl. BTW

MSI MPG A1250GS PCIE5 power supply unit 1250 W 20+4 pin ATX ATX Zwart

MSI PSU MPG A1250GS PCIE5

Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.

Specificaties

Energie

Totaal vermogen*
1250 W
AC-ingangsspanning*
100 - 240 V
AC-ingangsfrequentie
50/60 Hz
Power Factor Correctie (PFC) type
Actief
Gecombineerd vermogen (+12V)
1249 W
Gecombineerd vermogen (+5V)
20 W
Gecombineerd vermogen (-12V)
3,6 W
Gecombineerd vermogen(+5Vsb)
15 W
Max huidige output (+5V)
22 A
Max huidige output (-12V)
0,3 A
Max huidige output (+5Vsb)
3 A
Efficientie
90 procent

Poorten & interfaces

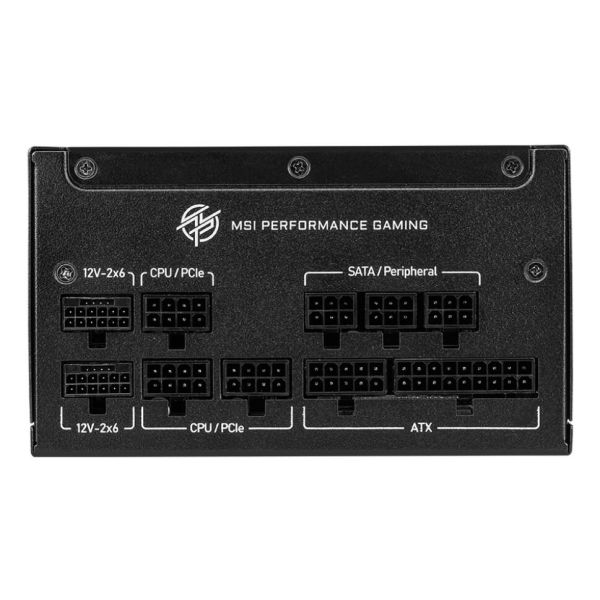

Motherboard power connector*
20+4 pin ATX
Lengte stroomkabel moederbord
60 cm
Aantal SATA power connectors
8
Peripheral (Molex) power connectors (4-pin)*
4
EPS power connector (8-pin)
Nee
EPS-voedingsconnector (4+4 pin)
Ja
PCI Express power connectors (6+2 pin)
1

Poorten & interfaces

Bekabelingstype
Volledig modulair

Prestatie

80 PLUS certificatie*
80 PLUS Gold
Supported motherboard form factors
ATX
Bedoeld voor*
Pc/server
Vormfactor van de voeding (PSU)*
ATX

Design

Kleur van het product
Zwart
Type koeling
Semi-passive
Ventilator diameter
13,5 cm
Aantal ventilatoren
1 ventilator(en)
Belichting
Nee

Gewicht en omvang

Breedte
150 mm
Diepte
86 mm
Hoogte
150 mm

Verpakking

Type verpakking
Doos
