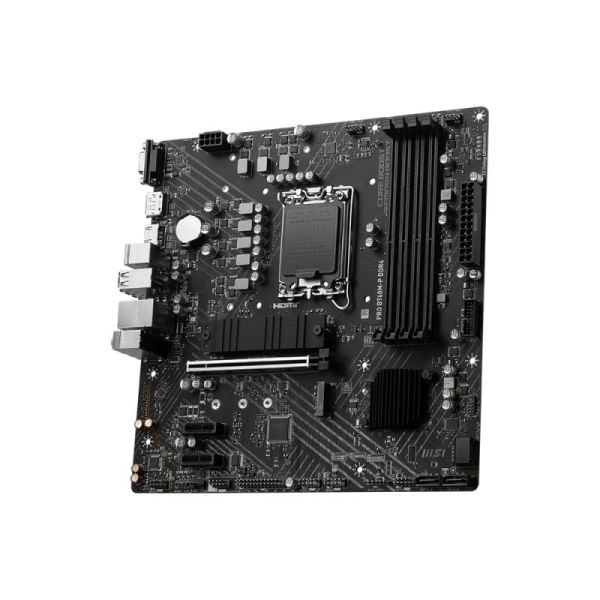

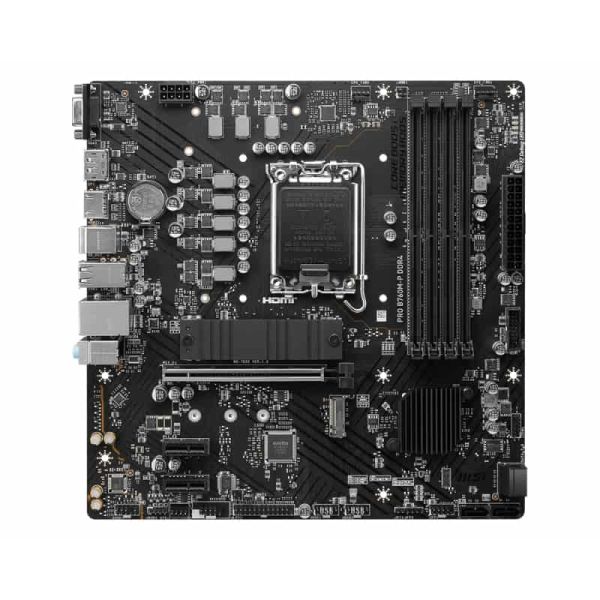

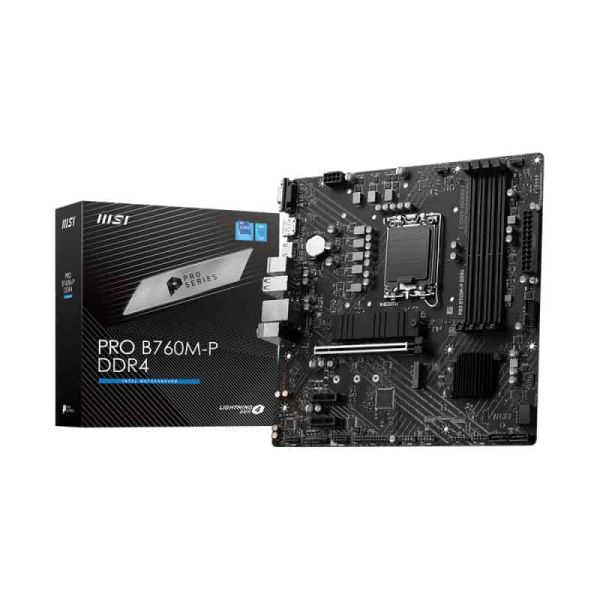

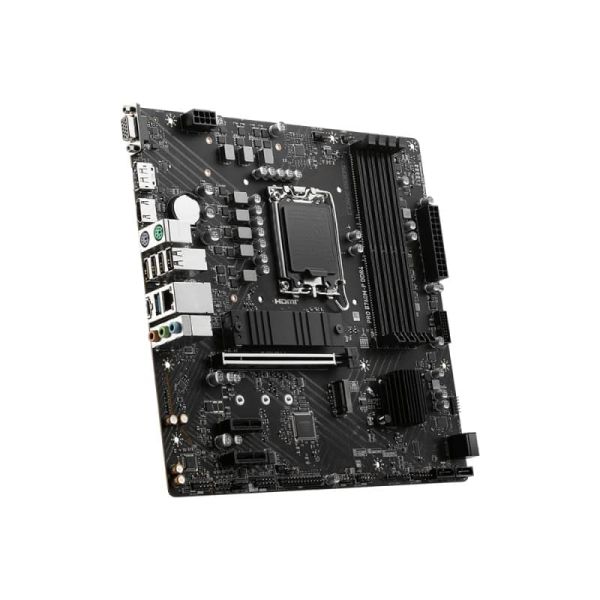

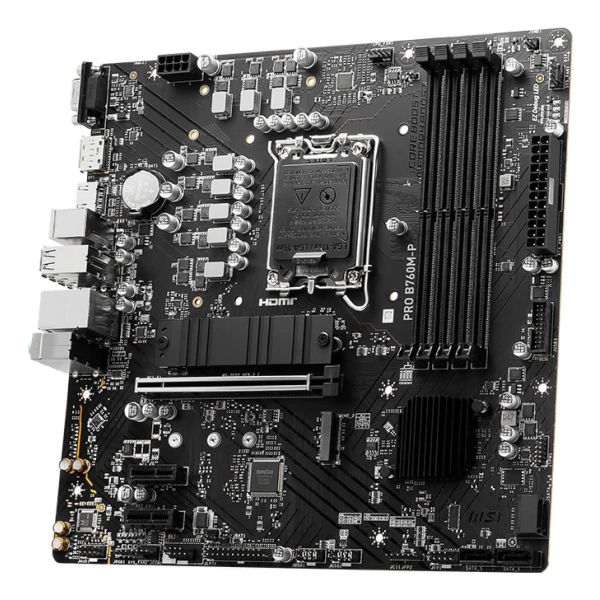

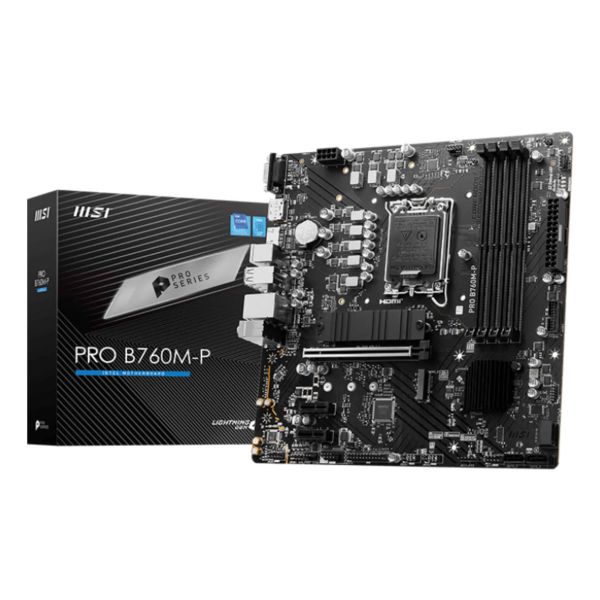

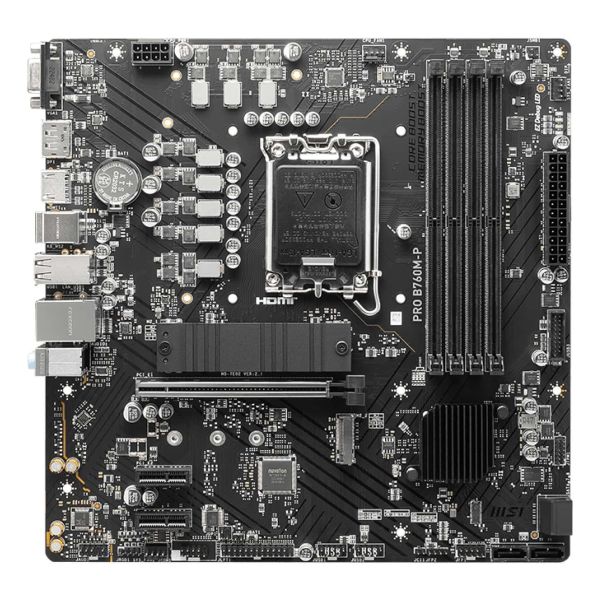

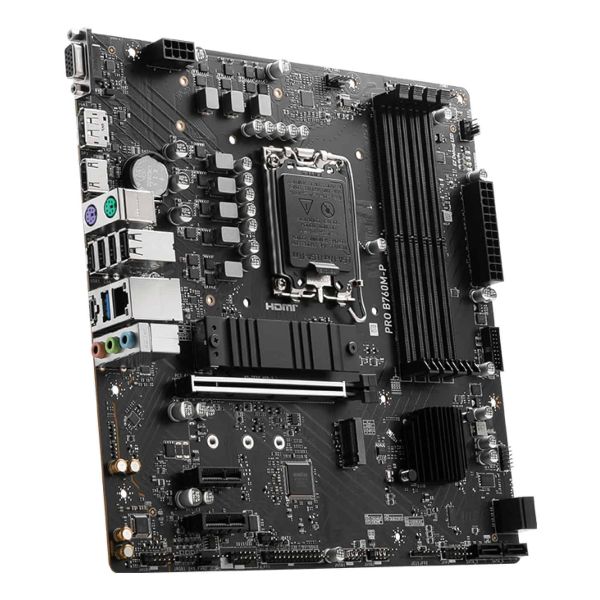

MSI PRO B760M-P DDR4 Intel B760 LGA 1700 micro ATX

MSI PRO B760M-P DDR4, Intel, LGA 1700, Intel® Celeron®, Intel® Pentium® Gold, DDR4-SDRAM, 128 GB, Dubbelkanaals

Ruim op voorraad

Fabrikant MSI
MPN PRO B760M-P
EAN 4711377086578
€ 108,00 excl. BTW

MSI PRO B760M-P DDR4 Intel B760 LGA 1700 micro ATX

PRO B760M-P is designed with tons of flexible tools with DDR5 memory version.

BUSINESS ELEGANCE
The PRO Series is tailored to professionals from all walks of life. The lineup features impressive performance and high quality, while aiming to provide users incredible experience. Users who care about productivity and efficiency can definitely count on the MSI PRO Series to assist you with multitasking and increasing efficiency.

LIGHTNING GEN 4 PCI-E
Doubling over the previous generation, the bandwidth of a x16 interface can reach 64GB/s.

FAST AND FUTURE-READY STORAGE
MSI PRO series motherboards support all the latest storage standards, which allows users to connect any ultra-fast storage device. Start games faster, load levels faster and have a real advantage over your enemies.

Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.

Specificaties

Processor

Processorfabrikant*
Intel
Processor socket*
LGA 1700
Compatibele processors*
Intel® Celeron®, Intel® Pentium® Gold

Geheugen

Ondersteunde geheugen types*
DDR4-SDRAM
Aantal geheugenslots*
4
Geheugen kanaal
Dubbelkanaals
Non-ECC
Ja
Ondersteunde geheugenkloksnelheid (max)
4800 MHz
Maximum intern geheugen*
128 GB
Niet gebufferd geheugen
Ja

Opslag-controllers

Ondersteunde opslagstationinterfaces*
SATA III
RAID support
Ja
Soorten RAID
0, 1, 5, 10

Interne aansluitingen

USB 2.0 aansluitingen*
4
USB 3.2 Gen 1 (3.1 Gen 1)-aansluitingen*
2
Aantal SATA III connectors*
4
Aansluiting voor audiopaneel aan voorzijde
Ja
Aansluiting voor ventilator van voeding
Ja
Aansluiting voor CPU koeler
Ja
Chassis intrusion aansluiting
Ja
TPM connector
Ja
12V vermogen-connector
Ja

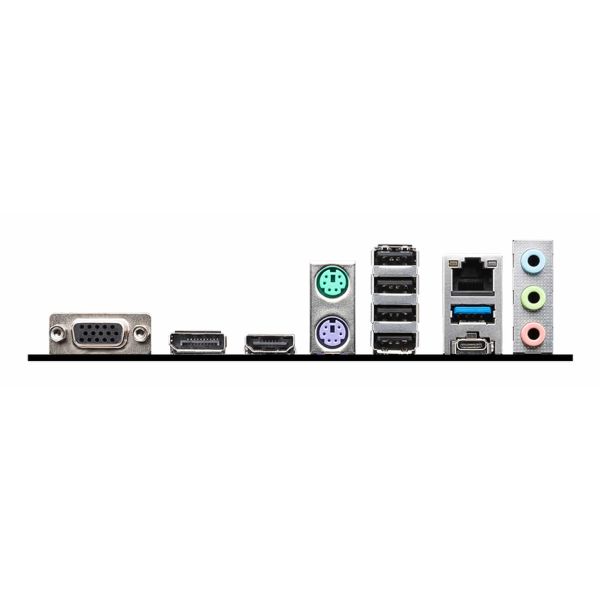

Aansluitingen achterzijde

Aantal USB 2.0-poorten*
4
Aantal poorten USB 3.2 Gen 1 (3.1 Gen 1) Type A*
1
Aantal poorten USB 3.2 Gen 2 (3.1 Gen 2) Type C*
1

Aansluitingen achterzijde

Aantal Ethernet LAN (RJ-45)-poorten*
1
VGA (D-Sub)poort(en)*
1
Aantal HDMI-poorten*
1
HDMI versie
1.4
Aantal DisplayPorts
1
DisplayPort versie
1.4

Netwerk

Ethernet LAN
Ja
Ethernet interface type
Gigabit Ethernet
LAN controller
Realtek RTL8111H

Kenmerken

Chipset moederbord*
Intel B760
Audiochip
Realtek ALC897
Audio-uitgangskanalen*
7.1 kanalen
Component voor*
PC
Moederbord form factor*
micro ATX
Moederbord chipset familie*
Intel
Ondersteunt Windows
Windows 10, Windows 11

Uitbreidingsmodules

PCI Express x1 slots
2
PCI Express x1 (Gen 4.x) sleuven
2
PCI Express x16 slots
1
PCI Express x16 (Gen 4.x) sleuven
1
Aantal M.2 (M) slots
2

Gewicht en omvang

Breedte
243,8 mm
Diepte
243,8 mm
