MSI GEFORCE RTX 4060 Ti GAMING X SLIM 16G videokaart NVIDIA 16 GB GDDR6

MSI GEFORCE RTX 4060 Ti GAMING X SLIM 16G, GeForce RTX 4060 Ti, 16 GB, GDDR6, 128 Bit, 7680 x 4320 Pixels, PCI Express x8 4.0

Niet op voorraad

Fabrikant MSI
MPN V517-002R
EAN 4711377122092
€ 523,00 excl. BTW

MSI GEFORCE RTX 4060 Ti GAMING X SLIM 16G videokaart NVIDIA 16 GB GDDR6

Gaming Unbound
GAMING SLIM series is a thinner variant of GAMING series while maintaining high performance capabilities and aggressive looks.

Elevate performance with TRI FROZR 3 cooling and its key features – TORX FAN 5.0, Core Pipe, and Airflow Control.

TRI FROZR 3 THERMAL DESIGN
Stay cool and quiet. MSI’s TRI FROZR 3 thermal design enhances heat dissipation all around the graphics card.

TORX FAN 5.0
TORX FAN 5.0 is a culmination of fan design improvements to increase the air pressure and flow into the heatsink. Ring arcs link three sets of fan blades that tilt 22 degrees together to maintain high-pressure airflow even at slower rotational speeds. The resulting increased airflow is +23% compared to an axial fan.

AIRFLOW CONTROL
Airflow Control improves airflow dynamics through the Wave Curved 2.0 and updated deflectors design for optimizing the balance between cooling and quieter acoustics.

ELEVATED DETAILS
Take a closer look at the other thermal solution features that help to control temperatures and the noise level.

UNRESTRICTED COOLING

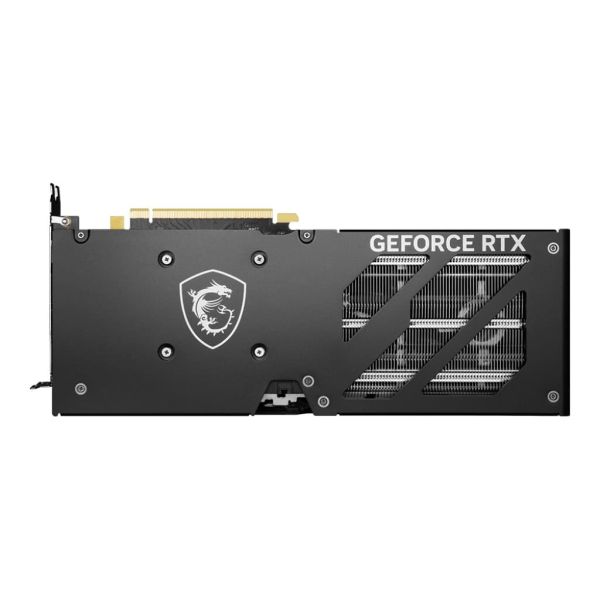

A large airflow vent on the backplate allows exhaust air to pass through directly.

ZERO FROZR
The fans completely stop when temperatures are relatively low, eliminating all noise.






  • 2670 MHz / 18 Gbps
  • 16GB GDDR6

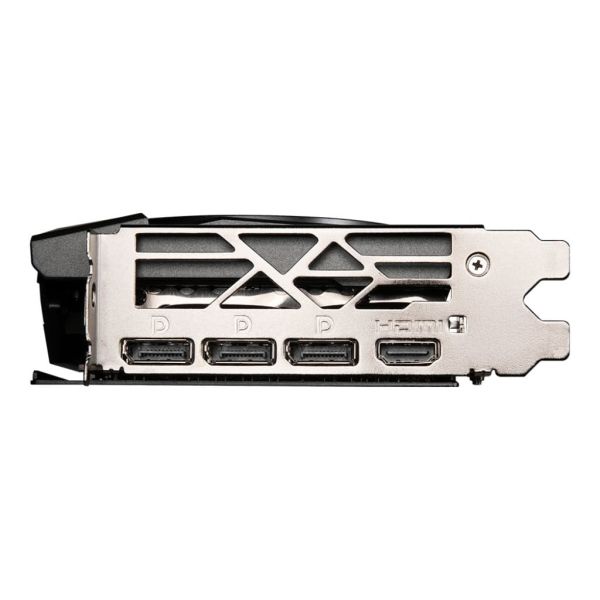

  • DisplayPort x 3 (v1.4a)
  • HDMI™ x 1 (Supports 4K@120Hz HDR, 8K@60Hz HDR, and Variable Refresh Rate as specified in HDMI™ 2.1a)
  • TORX Fan 5.0: Fan blades linked by ring arcs and a fan cowl work together to stabilize and maintain high-pressure airflow
  • Copper Baseplate: Heat from the GPU and memory modules is captured by a copper baseplate and then rapidly transferred to Core Pipes
  • Core Pipe: A section of square-shape heat pipes make maximum contact over the GPU, then spread the heat to the heatsink
  • Airflow Control: Don’t sweat it, Airflow Control guides the air to exactly where it needs to be for maximum cooling

Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.

Specificaties

Processor

CUDA*
Ja
CUDA cores
4352
Grafische processor familie*
NVIDIA
Grafische processor*
GeForce RTX 4060 Ti
Frequentie van processor*
2685 MHz
Processor boost clock speed
2670 MHz
Maximum resolutie*
7680 x 4320 Pixels
Maximum displays per videocard
4

Geheugen

Grafische geheugen*
16 GB
Grafische adapter, soort geheugen*
GDDR6
Geheugenbus*
128 Bit
Overdrachtssnelheid
18 Gbit/s

Poorten & interfaces

Soort aansluiting*
PCI Express x8 4.0
Aantal HDMI-poorten*
1
HDMI versie
2.1a
Aantal DisplayPorts*
3
DisplayPort versie
1.4a

Prestatie

Geïntegreerde TV Tuner*
Nee
DirectX versie*
12 Ultimate
OpenGL versie*
4.6

Prestatie

HDCP
Ja
Dual Link DVI*
Nee
NVIDIA G-SYNC
Ja

Design

Type koeling*
Actief
Koeltechniek
MSI TORX FAN 5.0
Aantal ventilatoren
3 ventilator(en)
Vormfactor
Full-Height/Full-Length (FH/FL)
Belichting
Ja
Kleur van het product
Zwart, Grijs

Energie

Minimum system power voorraad*
550 W
Stroomverbruik (typisch)*
165 W
Extra geleverde power connectors
1x 8-pin

Gewicht en omvang

Gewicht
919 g
Diepte
125 mm
Hoogte
46 mm
Breedte
307 mm

Verpakking

Gewicht verpakking
1,64 kg
Type verpakking
Doos
