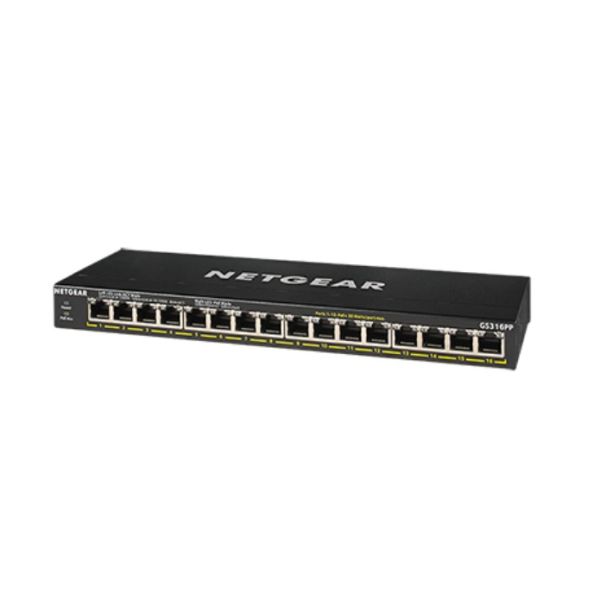

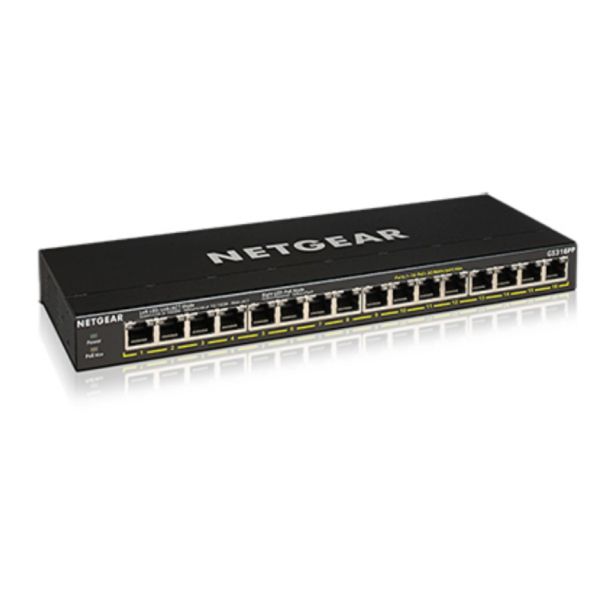

NETGEAR GS316PP Unmanaged Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Zwart

NETGEAR GS316PP, Unmanaged, Gigabit Ethernet (10/100/1000), Full duplex, Power over Ethernet (PoE), Rack-montage, Ophangsysteem voor aan de muur

Ruim op voorraad

Fabrikant Netgear
MPN GS316PP-100EUS
EAN 0606449146912
€ 269,00 excl. BTW

NETGEAR GS316PP Unmanaged Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Zwart

NETGEAR 300 Series Gigabit Ethernet Unmanaged Switches with PoE provide easy, reliable, and affordable network connectivity for home and small offices. With these unmanaged plug-and-play switches, you can expand your network connections to multiple devices instantly.

The unmanaged switches provides power and data from a single Ethernet (CAT-5e) cable to devices such as IP cameras, VoIP/ Internet-based phones, wireless access points, etc. The majority of these models also support PoE power auto-balance and allocation feature.

NETGEAR’s unique PoE technology automatically balances the PoE power based on the device needs independent of PoE class detected. These switches deliver the power the device needs, at the most granular level.
  • ETHERNET PORT CONFIGURATION: 16 Gigabit ports
  • POWER-OVER-ETHERNET: 16 PoE+ ports with 183W total power budget for high-power PoE devices
  • POE POWER AUTO-BALANCE AND ALLOCATION - NETGEAR’s unique PoE technology automatically balances the PoE power at the most granular level on each port, depending on the device needs
  • PLUG-AND-PLAY: Simple set up with no software to install or configuration needed
  • VERSATILE MOUNTING OPTIONS: Supports desktop, wall or rackmount placement, and includes all the necessary mounting hardware in the box
  • Energy-efficient technology for power savings
  • Auto-MDI/MDIX eliminates the need for crossover cables
  • Non-blocking switching architecture for maximum throughput at wire speed
  • Auto-negotiation for automatic connection at the highest common speed between switch and an end device

Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.

Specificaties

Beheerfuncties

Switch type*
Unmanaged
Quality of Service (QoS)
Ja

Poorten & interfaces

Aantal basis-switching RJ-45 Ethernet-poorten*
16
Type basis-switching RJ-45 Ethernet-poorten*
Gigabit Ethernet (10/100/1000)
Netstekker
DC-in ingang

Netwerk

Netwerkstandaard*
IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x
10G support*
Nee
Full duplex
Ja
Datastroombeheer
Ja
Auto MDI/MDI-X
Ja
Auto-sensing
Ja
Auto-negotiation
Ja

Data-uitwisseling

Switchingcapaciteit*
32 Gbit/s
MAC-adrestabel*
4000 entries
Latentie (1 Gbps)
3,7 µs
Jumbo Frames ondersteuning
Ja
Jumbo frames
9216
Packet forwarding rate (1 Gbps)
1448000 pps
Packet buffergeheugen
1 MB

Beveiliging

Algoritmen wachtrijplanning
Weighted Round Robin (WRR)

Design

Rack-montage*
Ja
Kleur van het product
Zwart
Materiaal behuizing
Metaal

Design

LED-indicatoren
Activiteit, Link, Power over Ethernet (PoE), Stroom, Snelheid
Ophangsysteem voor aan de muur
Ja
Certificering
CE, FCC Part A, IC A, RCM, VCCI, BSMI, KC, CB, CE LVD

Prestatie

Mean time between failures (MTBF)
2362192 uur

Energie

DC voltage input
54 V
Stroom
3.7 A
Vermogensverbruik (max)
195,9 W

Power over Ethernet (PoE)

Power over Ethernet (PoE)*
Ja
Aantal Power over Ethernet plus (PoE +)-poorten
16
Vermogen per poort Power over Ethernet (PoE)
30 W
Totaal Power over Ethernet (PoE)-budget
183 W

Eisen aan de omgeving

Bedrijfstemperatuur (T-T)
0 - 40 °C
Temperatuur bij opslag
-20 - 70 °C
Relatieve vochtigheid in bedrijf (V-V)
0 - 90 procent
Hoogte, in bedrijf
0 - 3000 m
Warmtedissipatie
669,9 BTU/h

Gewicht en omvang

Breedte
286 mm
Diepte
102 mm
Hoogte
27 mm
Gewicht
880 g

Logistieke gegevens

Code geharmoniseerd systeem (HS)
85176990
