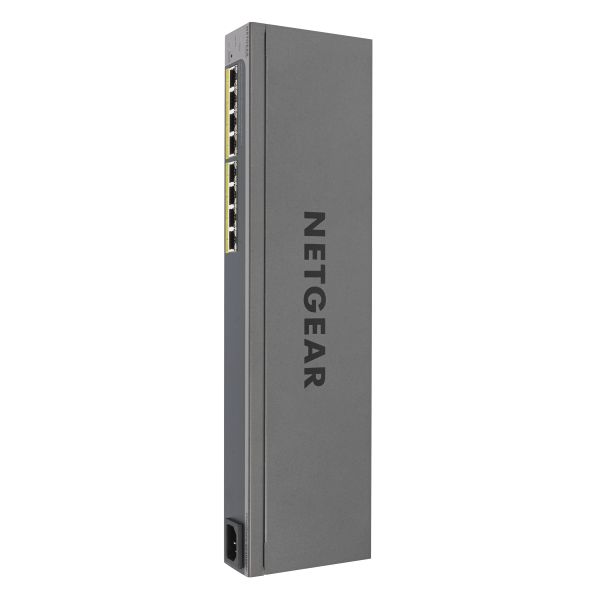

NETGEAR GS408EPP Managed L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Zwart, Grijs

NETGEAR GS408EPP, Managed, L2, Gigabit Ethernet (10/100/1000), Full duplex, Power over Ethernet (PoE), Rack-montage

Ruim op voorraad

Fabrikant Netgear
MPN GS408EPP-100EUS
EAN 0606449132137
€ 185,00 excl. BTW

NETGEAR GS408EPP Managed L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Zwart, Grijs

NETGEAR Plus GS408EPP - Switch - managed - 8 x 10/100/1000 (PoE+) - Desktop, an Rack montierbar, wandmontierbar, Stangenmontage - PoE+ (124 W)

Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.

Specificaties

Beheerfuncties

Switch type*
Managed
Switch-laag
L2
Quality of Service (QoS)
Ja

Poorten & interfaces

Aantal basis-switching RJ-45 Ethernet-poorten*
8
Type basis-switching RJ-45 Ethernet-poorten*
Gigabit Ethernet (10/100/1000)

Netwerk

Netwerkstandaard*
IEEE 802.1Q, IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x
10G support*
Nee
Port mirroring
Ja
Full duplex
Ja
Datastroombeheer
Ja
Verbindingsaggregatie
Ja
Rate limiting
Ja
VLAN=ondersteuning
Ja
Virtuele LAN-functies
Voice VLAN, Tagged VLAN, Port-based VLAN
Aantal VLANs
64

Data-uitwisseling

Switchingcapaciteit*
16 Gbit/s
Verzending snelheid
11,9 Mpps
MAC-adrestabel*
4000 entries
Store-and-forward
Ja
Latentie (10-100 Mbps)
9,1 µs
Latentie (1 Gbps)
2,7 µs
Aantal wachtrijen
4
Jumbo Frames ondersteuning
Ja
Jumbo frames
9000

Beveiliging

DHCP-functies
DHCP client
IGMP snooping
Ja
Wachtwoordbeveiliging
Ja
DoS aanval preventie
Ja
Algoritmen wachtrijplanning
Weighted Round Robin (WRR)

Multicast-functies

Multicast-ondersteuning
Ja
Aantal gefilterde multicast-groepen
128

Design

Rack-montage*
Ja

Design

Kleur van het product
Zwart, Grijs
LED-indicatoren
Activiteit, Link, Power over Ethernet (PoE), Stroom, Snelheid, Status
Aantal ventilatoren
1 ventilator(en)
Veiligheid
CB; IEC 60950-1:2005(ed.2) + A1:2009 + A2:2013; UL/cUL Listed (UL 60950-1)/CAN/CSA C22.2 No. 60960-1-07; EN 60950-1: 2006 + A11:2009 + A1:2010 + A12:2011 + A2:2013; AN/NZS 60950.1:2015; EAC
Elektromagnetische compatibiliteit
CE; 47 CFR FCC 15, B, A; ICES-003:2016 6, A; ANSI C63.4:2014; EN 55022:2010 + AC:2011, A EN 55024:2010; EN 61000-3-2:2014, A; EN 6100-3-3:2013; CISPR 22:2008, A; AS/NZS CISPR 22:2009 + A1:2010, A; VCCI V-3/2015.04, A; V-4/2012.4; EAC; KC; CNS 13438

Prestatie

Geluidsniveau
26,9 dB
Upgraden van firmware mogelijk
Ja
Buffergrootte
192 KB
Mean time between failures (MTBF)
2715369 uur

Energie

AC-ingangsspanning
100 - 240 V
AC-ingangsfrequentie
50 - 60 Hz
Stroom
2 A
Vermogensverbruik (max)
148 W

Power over Ethernet (PoE)

Power over Ethernet (PoE)*
Ja
Aantal Power over Ethernet plus (PoE +)-poorten
8
Totaal Power over Ethernet (PoE)-budget
124 W

Eisen aan de omgeving

Bedrijfstemperatuur (T-T)
0 - 50 °C
Temperatuur bij opslag
-20 - 70 °C
Relatieve vochtigheid in bedrijf (V-V)
0 - 90 procent
Luchtvochtigheid bij opslag
0 - 95 procent
Hoogte, in bedrijf
0 - 3000 m
Hoogte bij opslag
0 - 3000 m
Warmtedissipatie
505,27 BTU/h

Gewicht en omvang

Breedte
380 mm
Diepte
100 mm
Hoogte
43,2 mm
Gewicht
1,6 kg

Inhoud van de verpakking

Snelstartgids
Ja
Rekbevestigingspakket
Ja

Verpakking

Montagebeugels meegeleverd
Ja
