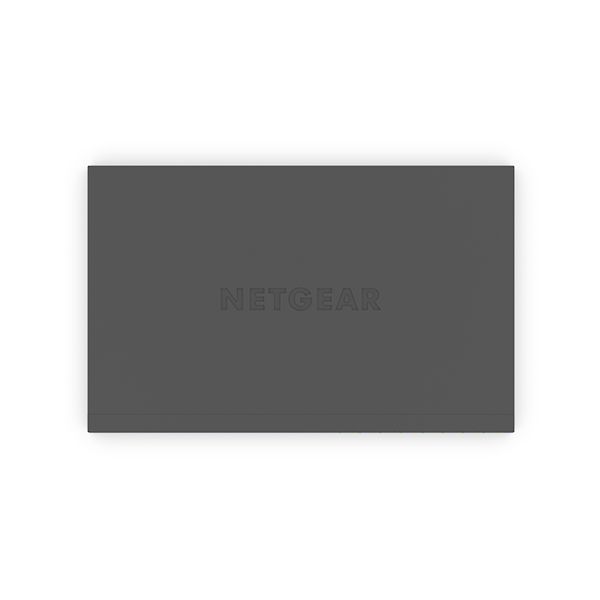

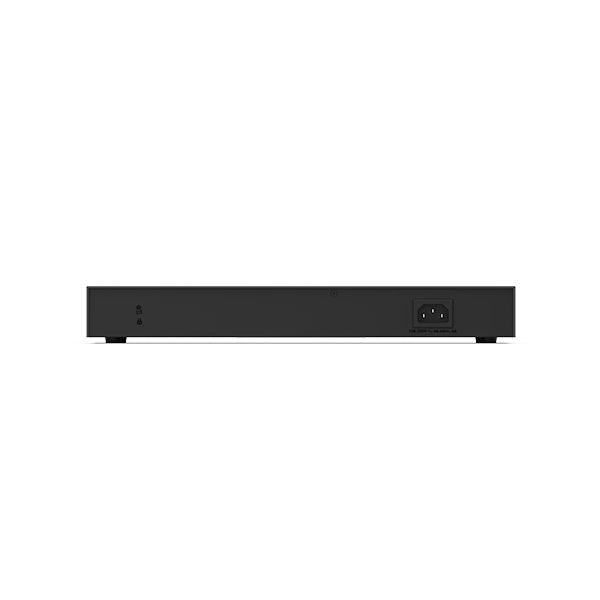

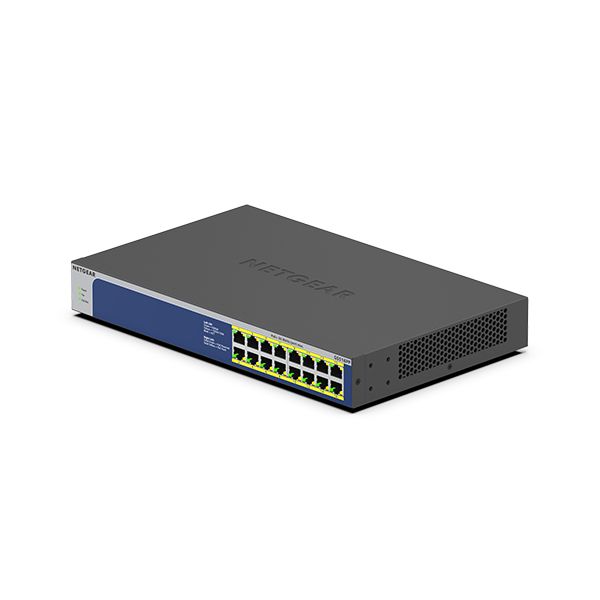

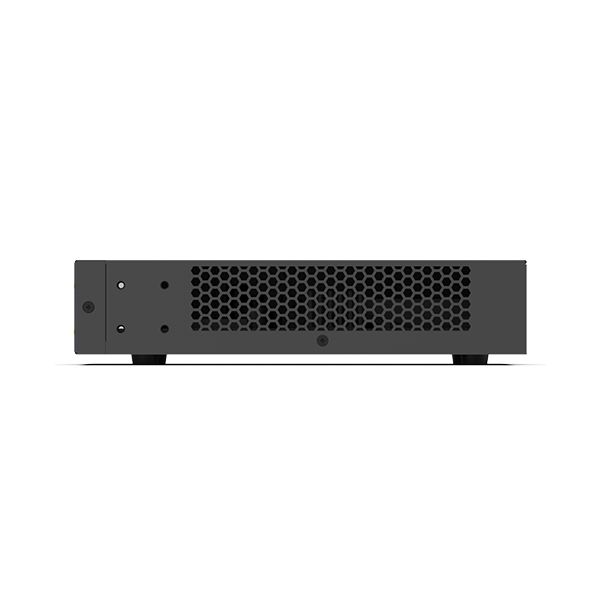

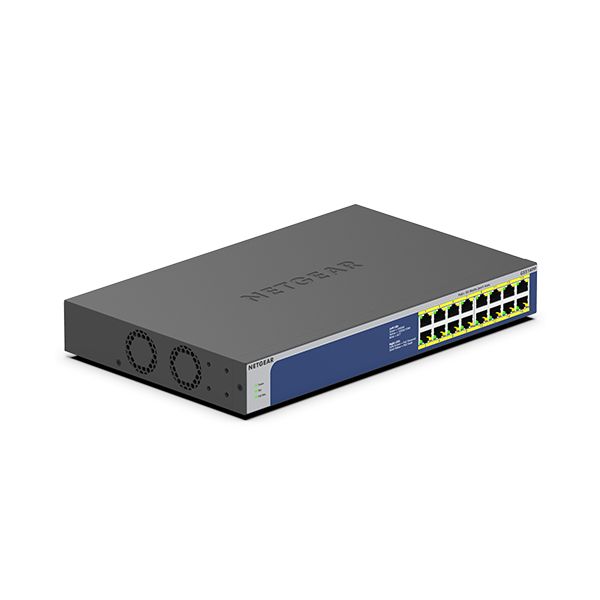

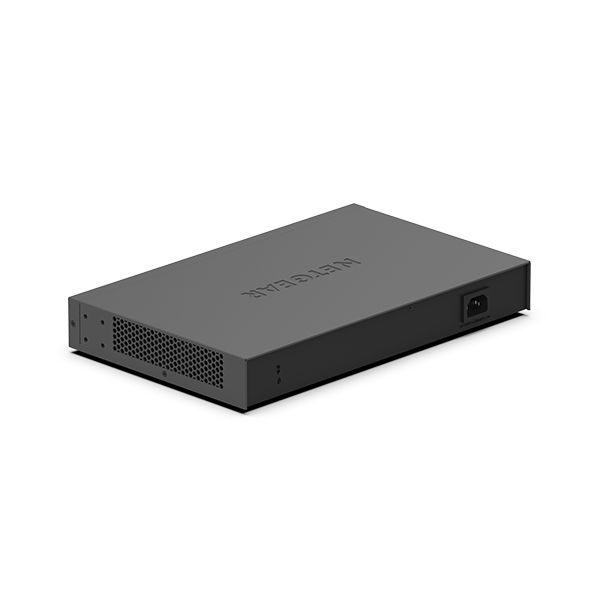

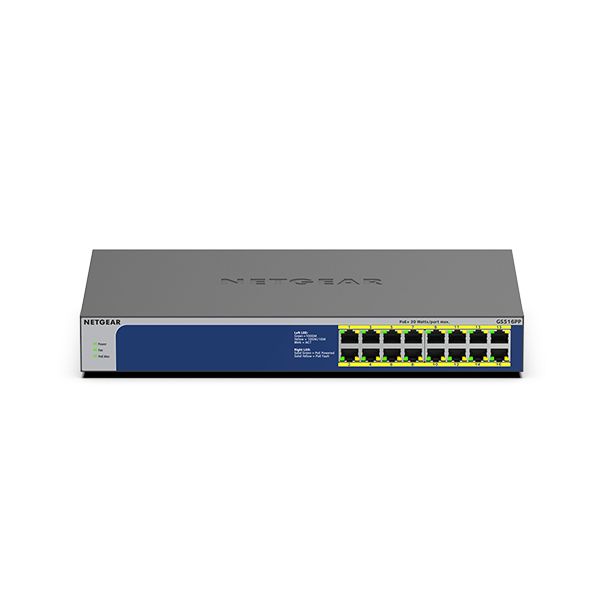

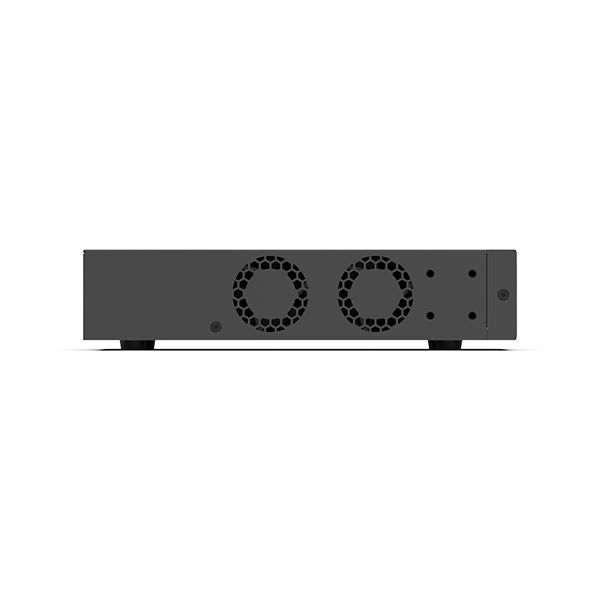

NETGEAR GS516PP Unmanaged Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Blauw, Grijs

NETGEAR GS516PP, Unmanaged, Gigabit Ethernet (10/100/1000), Full duplex, Power over Ethernet (PoE), Rack-montage

Ruim op voorraad

Fabrikant Netgear
MPN GS516PP-100EUS
EAN 0606449149258
€ 378,00 excl. BTW

NETGEAR GS516PP Unmanaged Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Blauw, Grijs

Instant Connectivity and Reliable Performance
The NETGEAR Gigabit Unmanaged Switch series helps your business cost-effectively expand your network to Gigabit speeds and higher port counts. The GS516PP joins the series and offers 16 PoE+ ports to power high-power PoE devices. With a total PoE power budget of 260W, deploy denser PoE+ devices to a single switch rather than multiple

The GS516PP is energy efficient, built to last, and rigorously tested to provide the reliability your business needs. 802.1p traffic prioritization and jumbo frame support allow for seamless integration with more sophisticated networks.

Powerful and Energy Efficient
Ideal for powering and connecting VoIP phones, wireless access points, IP Cameras and IoT devices. Desktop or rackmount for flexible placement. The GS516PP gives you a highly cost-effective and powerful switch with the best cost/PoE budget ratio.

NETGEAR Unmanaged Switches support the latest Energy Efficient Ethernet (IEEE 802.3az) standard, which reduces energy consumption when there is light traffic on an active port or when there is no link or no activity detected. It can further save energy when a short cable is used.
  • PLUG-AND-PLAY - Simple set up with no software or configuration needed
  • POWER-OVER-ETHERNET: 16 PoE+ ports with 260W total power budget
  • STURDY METAL CASE - Small, sturdy desktop metal case and quiet operation
  • EASY-MONITORING - Per port LEDs for port activity and speed
  • GIGABIT ETHERNET – 16 auto-sensing 10/100/1000 Mbps Gigabit Ethernet ports with up to 32Gb non-blocking switching
  • PoE AUTO-BALANCE - unique PoE technology automatically balances the PoE power based on the device needs independent of PoE class detected. The switches deliver the power the device needs, at the most granular level

Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.

Specificaties

Beheerfuncties

Switch type*
Unmanaged
Quality of Service (QoS)
Ja

Poorten & interfaces

Aantal basis-switching RJ-45 Ethernet-poorten*
16
Type basis-switching RJ-45 Ethernet-poorten*
Gigabit Ethernet (10/100/1000)

Netwerk

Netwerkstandaard*
IEEE 802.3ab, IEEE 802.3az, IEEE 802.3i, IEEE 802.3u
10G support*
Nee
Koperen ethernetbekabelingstechnologie
10GBASE-T, 100BASE-T, 1000BASE-T
Full duplex
Ja
Half-duplex
Ja
Auto MDI/MDI-X
Ja

Data-uitwisseling

Switchingcapaciteit*
32 Gbit/s
MAC-adrestabel*
8000 entries
Latentie (1 Gbps)
12 µs
Jumbo Frames ondersteuning
Ja
Jumbo frames
9216
Packet forwarding rate (1 Gbps)
1448000 pps
Packet buffergeheugen
0,192 MB

Beveiliging

Algoritmen wachtrijplanning
Weighted Round Robin (WRR)

Design

Rack-montage*
Ja
Kleur van het product
Blauw, Grijs
Materiaal behuizing
Metaal
LED-indicatoren
Activiteit, Fan fail, Link, Power over Ethernet (PoE), Stroom, Snelheid
Aantal ventilatoren
2 ventilator(en)

Design

Certificering
FCC 47 CFR Part15B (Class A) ICES-003 Class A EN 55024/55032/55035 (Class A) AS/NZS CISPR 32 VCCI BSMI CNS13438 KCC UL 62368-1 CB_IEC 60950-1 + IEC 62368-1 Ed-3 LVD EN60950-1+EN62368-1 Ed-2 Rpt AS/NZS 62368.1 Ed-2 BSMI CNS14336-1

Prestatie

Mean time between failures (MTBF)
2415333,9 uur

Energie

Vermogenstoevoer inclusief*
Ja
AC-ingangsspanning
100 - 240 V
AC-ingangsfrequentie
50 - 60 Hz
Vermogensverbruik (max)
316,1 W

Power over Ethernet (PoE)

Power over Ethernet (PoE)*
Ja
Type Power over Ethernet (PoE) ondersteunt
PoE+
Aantal Power over Ethernet plus (PoE +)-poorten
16
Vermogen per poort Power over Ethernet (PoE)
30 W
Totaal Power over Ethernet (PoE)-budget
260 W

Eisen aan de omgeving

Bedrijfstemperatuur (T-T)
0 - 50 °C
Temperatuur bij opslag
-20 - 70 °C
Relatieve vochtigheid in bedrijf (V-V)
10 - 90 procent
Luchtvochtigheid bij opslag
10 - 95 procent
Hoogte, in bedrijf
0 - 3000 m

Gewicht en omvang

Breedte
330 mm
Diepte
207 mm
Hoogte
43 mm
Gewicht
2,3 kg

Logistieke gegevens

Code geharmoniseerd systeem (HS)
85176990
