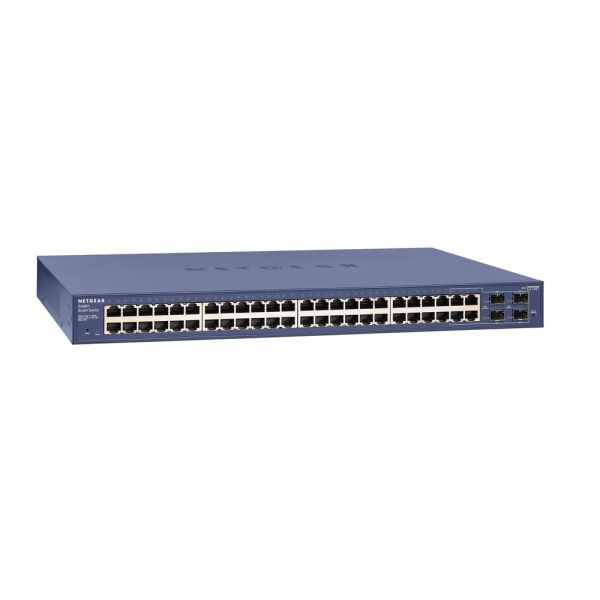

NETGEAR ProSAFE Smart Switch - GS748T - 48 Poorten, Managed, L2+, Gigabit Ethernet (10/100/1000), Full duplex, Rack-montage

Ruim op voorraad

Fabrikant Netgear
MPN GS748T-500EUS
EAN 0606449098242

NETGEAR ProSAFE Smart Switch - GS748T - 48 Poorten

High Port Density Gigabit with Browser-based Management Included
Joining NETGEAR’s family of Smart Switches with simple switch management at no extra cost, this 1U high, 48-port Gigabit switch maximizes bandwidth and density for great value and capability. With 48 10/100/1000 Mbps ports, each capable of powering 2000 Mbps of data throughput in full-duplex mode, plus four optional fiber ports, it provides a 96 Gbps backbone and connects servers or power users, delivering large amounts of multimedia, image, and video information in no time at all. Standards-based, it is ideal for combining 10, 100, and 1000 Mbps devices, as it delivers automatic speed and full/half-duplex sensing plus Auto Uplink™ on every port. Four hot-swappable small form-factor pluggable (SFP)** GBIC slots provide optional fiber connectivity for greater distance. An intuitive, Web-browser interface offers simple switch management, making it a snap to monitor switch performance, configure ports, even setup trunks, VLANs, and prioritization.

High Density
48 10/100/1000 Mbps ports deliver full-speed packet forwarding in a 1U size to migrate your network to future-proof functionality. Four SFP GBIC fiber slots provide optional fiber connectivity for greater distance.

Intelligent
Smart Switch capability enables key management features for the value price of an unmanaged switch. Included are performance monitoring, port configuration, VLAN for traffic control, port trunking for increased bandwidth, and Class of Service (CoS) for traffic prioritization.

Right Sized
Ideal for growing businesses who want the benefits of management without the cost. Compatible with Windows, MAC and Linux operating systems.***

Easygoing and Durable
Simple to set up and simple to use for effortless network monitoring and troubleshooting. Made to last, this sturdy switch is housed in a 17-inch metal box and comes with a rack-mounting kit.

Like all NETGEAR ProSafe Smart Switches, the GS748T is backed by the NETGEAR ProSafe

Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.

Specificaties

Beheerfuncties

Switch type*
Managed
Switch-laag
L2+
Quality of Service (QoS)
Ja
Web-gebaseerd management
Ja

Poorten & interfaces

Aantal basis-switching RJ-45 Ethernet-poorten*
48
Type basis-switching RJ-45 Ethernet-poorten*
Gigabit Ethernet (10/100/1000)
Aantal Combo SFP-poorten
2
Aantal moduleslots SPF
2
Netstekker
DC-in ingang

Netwerk

Netwerkstandaard*
IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x
10G support*
Nee
Full duplex
Ja
Datastroombeheer
Ja
Verbindingsaggregatie
Ja
Rate limiting
Ja
Spanning tree protocol
Ja
VLAN=ondersteuning
Ja
Aantal VLANs
64

Data-uitwisseling

MAC-adrestabel*
8000 entries
Latentie (10-100 Mbps)
20 µs
Jumbo Frames ondersteuning
Ja
Packet buffergeheugen
1,632 MB

Beveiliging

DHCP-functies
DHCP client
Access Control List (ACL)
Ja

Design

Rack-montage*
Ja
Kleur van het product
Blauw
Veiligheid
UL listed (UL 1950)/cUL, IEC 950/EN 60950
Certificering
CE mark, commercial FCC Part 15 Class A VCCI Class A EN 55022 (CISPR 22), Class A EN 50082-1 EN 55024 C-Tick

Prestatie

Compatibele besturingssystemen
Windows, MAC, Linux
Geluidsniveau
52 dB
Mean time between failures (MTBF)
108000 uur

Energie

Stroombron*
AC
AC-ingangsspanning
100 - 240 V
AC-ingangsfrequentie
50 - 60 Hz
Stroomverbruik (typisch)
66 W
Vermogensverbruik (max)
70 W

Power over Ethernet (PoE)

Power over Ethernet (PoE)*
Nee

Eisen aan de omgeving

Bedrijfstemperatuur (T-T)
0 - 40 °C
Temperatuur bij opslag
-10 - 70 °C
Relatieve vochtigheid in bedrijf (V-V)
0 - 90 procent
Luchtvochtigheid bij opslag
0 - 95 procent
Hoogte, in bedrijf
0 - 3000 m
Hoogte bij opslag
0 - 3000 m

Gewicht en omvang

Breedte
305 mm
Diepte
43 mm
Hoogte
440 mm
Gewicht
4,9 kg

Verpakking

Meegeleverde kabels
LAN (RJ-45)
Snelstartgids
Ja
Gebruiksaanwijzing
Ja
Gebruikershandleiding
Ja

Logistieke gegevens

Code geharmoniseerd systeem (HS)
85176990
