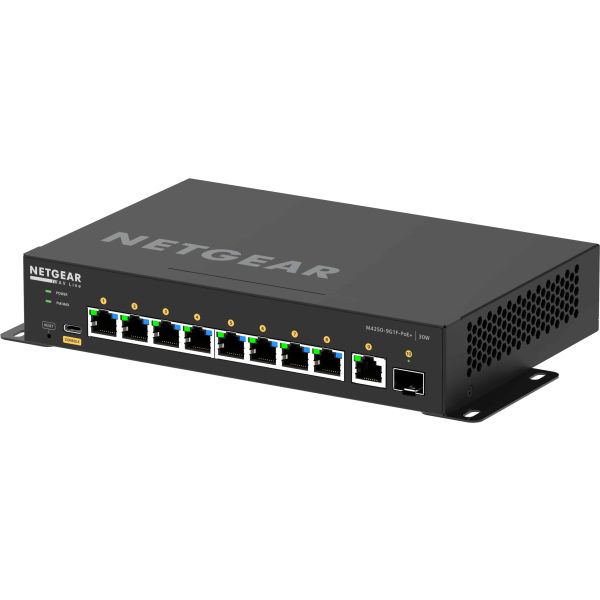

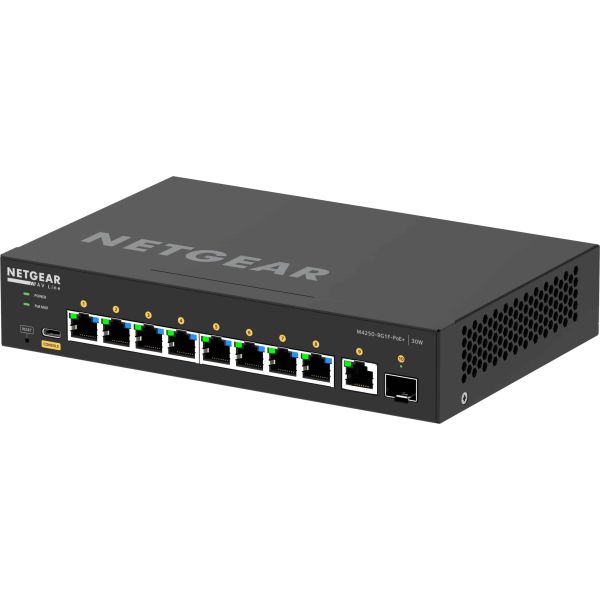

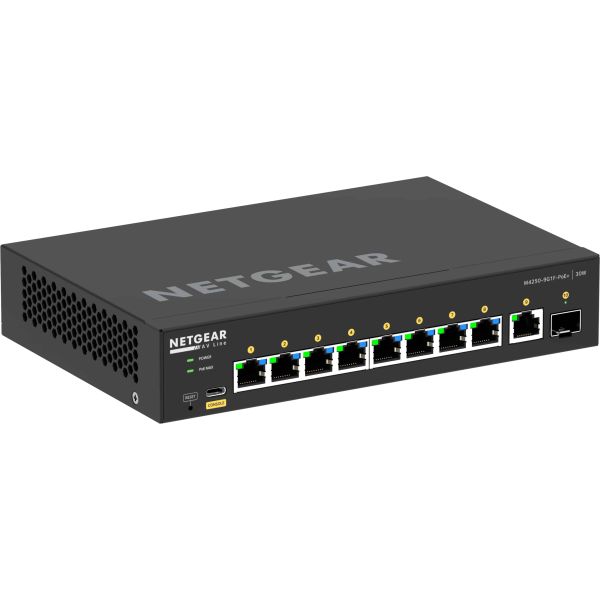

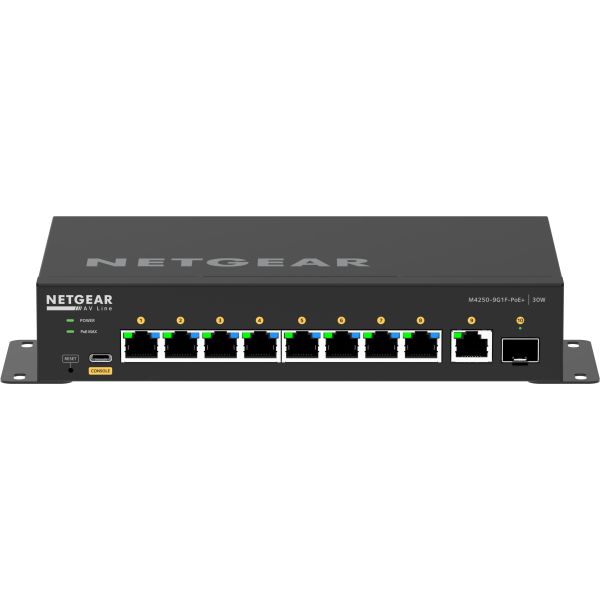

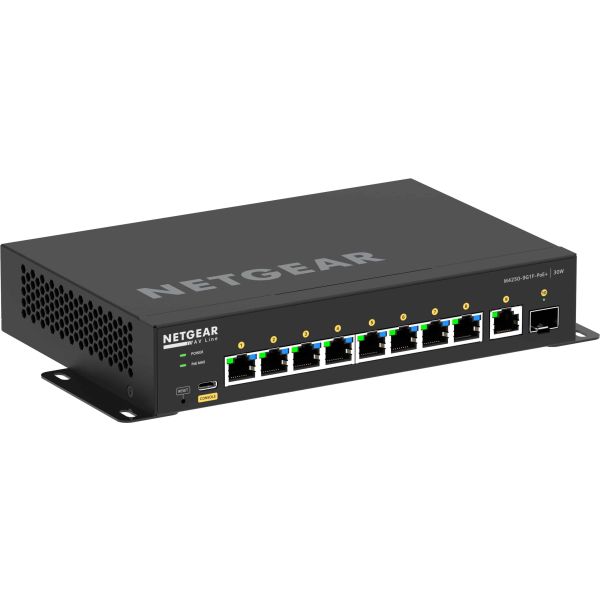

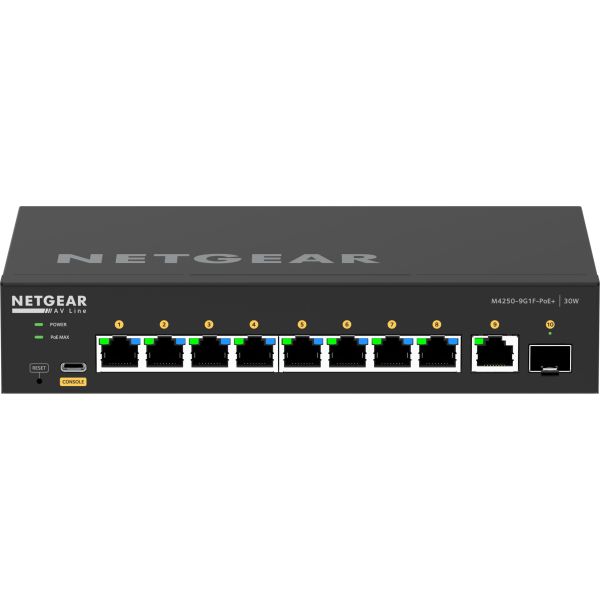

NETGEAR GSM4210PD-100EUS netwerk-switch Managed L2/L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Zwart

NETGEAR GSM4210PD-100EUS, Managed, L2/L3, Gigabit Ethernet (10/100/1000), Full duplex, Power over Ethernet (PoE), Rack-montage

Ruim op voorraad (levering verwacht binnen 3 dagen)

Fabrikant Netgear
MPN GSM4210PD-100EUS
EAN 0606449160192
€ 957,00 excl. BTW

NETGEAR GSM4210PD-100EUS netwerk-switch Managed L2/L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Zwart

Switching engineered for 1G AV over IP with versatile mounting options for under a table or behind a display. Pre-configured for out of the box functionality!

POWERFUL AV SWITCHES MADE SIMPLE

Pre-configured to get you up and running faster

FAST, EASY CONFIGURATION FOR AV PROS

A streamlined interface enables factory default AV settings or user-specified AV profiles to be assigned to individual ports with just a few clicks.

FOCUS ON THE EVENT NOT FAN NOISE

Most models have quiet mode which greatly reduces fan noise, and some models are even fanless.

DESIGNED FOR AV OVER IP RIGHT OUT OF THE BOX

With built-in NETGEAR IGMP Plus™, there's little-to-no setup required for flawless Video over IP delivery. Enable multicasting right out of the box.

Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.

Specificaties

Beheerfuncties

Switch type*
Managed
Switch-laag
L2/L3
Quality of Service (QoS)
Ja

Poorten & interfaces

Aantal basis-switching RJ-45 Ethernet-poorten*
8
Type basis-switching RJ-45 Ethernet-poorten*
Gigabit Ethernet (10/100/1000)

Netwerk

Netwerkstandaard*
IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3x
Full duplex
Ja
Verbindingsaggregatie
Ja
Broadcast stormbeheer
Ja
Rate limiting
Ja
Spanning tree protocol
Ja

Data-uitwisseling

Switchingcapaciteit*
24 Gbit/s
MAC-adrestabel*
16000 entries
Store-and-forward
Ja

Beveiliging

DHCP-functies
DHCP Option 82, DHCP relay, DHCP server, DHCP snooping, DHCPv6 client, DHCPv6 relay, DHCPv6 server, DHCPv6 snooping
Access Control List (ACL)
Ja
IGMP snooping
Ja
SSH/SSL support
Ja
Bescherming lus
Ja
BPDU filtering / bescherming
Ja
Authenticatie
MAC-gebaseerde authenticatie
Authenticatie type
RADIUS

Multicast-functies

Multicast-ondersteuning
Ja
IPv4-multicast-vermeldingen
2000

Design

Rack-montage*
Ja
Kleur van het product
Zwart
LED-indicatoren
Power over Ethernet (PoE), Stroom, Status

Prestatie

Type processor
Ja
Processormodel
ARM Cortex-A9
Frequentie van processor
1250 MHz
Intern geheugen
2048 MB
Geluidsniveau
30,06 dB

Energie

Stroombron*
AC/DC
Vermogenstoevoer inclusief*
Ja
AC-ingangsspanning
220 - 240 V
AC-ingangsfrequentie
50 - 60 Hz

Power over Ethernet (PoE)

Power over Ethernet (PoE)*
Ja
Aantal Power over Ethernet plus (PoE +)-poorten
8
Vermogen per poort Power over Ethernet (PoE)
30 W
Totaal Power over Ethernet (PoE)-budget
110 W

Eisen aan de omgeving

Bedrijfstemperatuur (T-T)
0 - 50 °C
Temperatuur bij opslag
-20 - 70 °C
Relatieve vochtigheid in bedrijf (V-V)
0 - 90 procent
Luchtvochtigheid bij opslag
0 - 95 procent
Hoogte, in bedrijf
0 - 3000 m
Hoogte bij opslag
0 - 3000 m
Warmtedissipatie
559,555 BTU/h

Gewicht en omvang

Breedte
210 mm
Diepte
140 mm
Hoogte
40 mm
Gewicht
967 g

Verpakking

Gebruiksaanwijzing
Ja
Gebruikershandleiding
Ja
