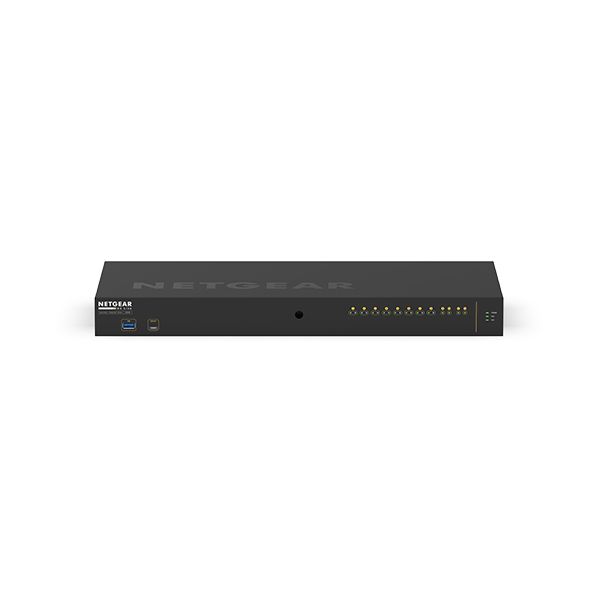

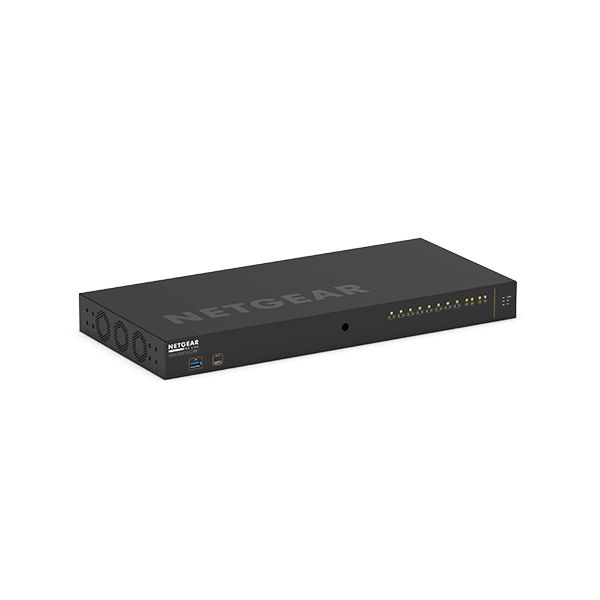

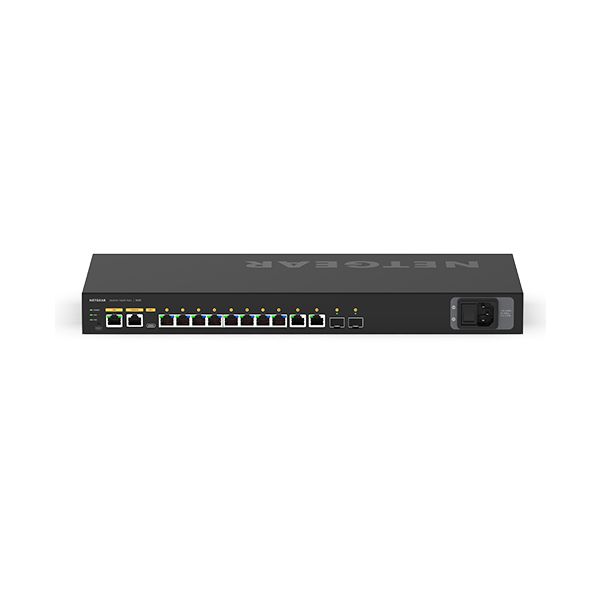

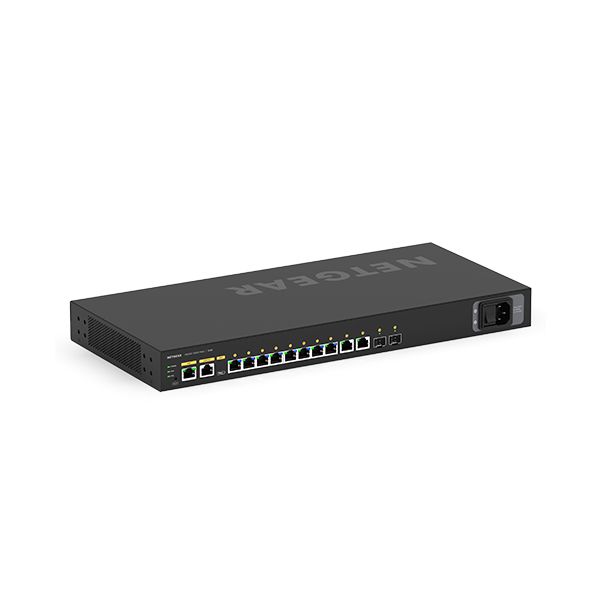

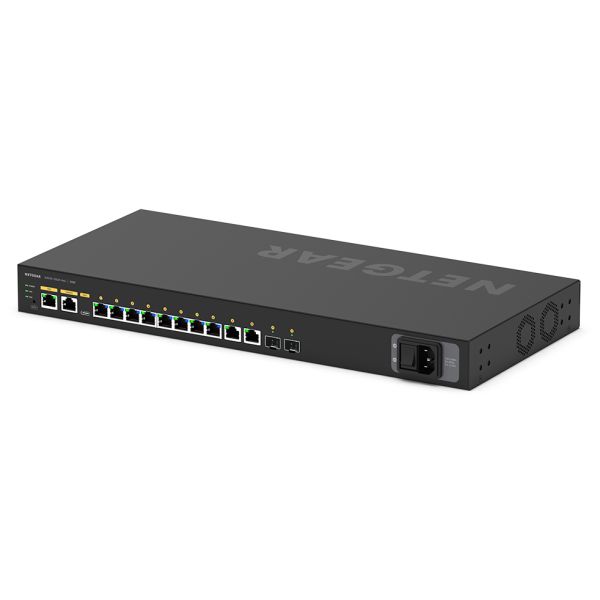

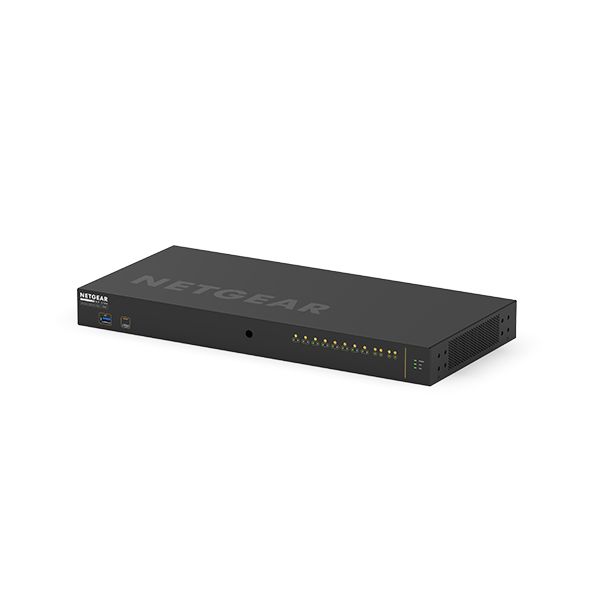

NETGEAR M4250-10G2F Managed L2/L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Zwart

NETGEAR M4250-10G2F, Managed, L2/L3, Gigabit Ethernet (10/100/1000), Power over Ethernet (PoE), Rack-montage, 1U

Niet op voorraad

Fabrikant Netgear
MPN GSM4212P-100EUS
EAN 0606449149548
€ 716,00 excl. BTW

NETGEAR M4250-10G2F Managed L2/L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Zwart

Switching engineered for 1G AV over IP with PoE+, Ultra90 PoE++ and rear-facing ports ensuring a clean integration in AV racks. M4250 switches come pre-configured for standard audio and video signals. When requirements are more specific, an AV user interface offers customization with port-based profiles. For audio Dante, Q-SYS and AES67 profiles are available, as well as an AVB profile requiring an AVB license sold separately. For video the M4250 offers profiles for NVX, SVSI, Q-SYS, NDI, Dante etc. as well as audio/video/control mixed profiles. When multiple switches, NETGEAR IGMP Plus brings automation for you to just connect them together.

M4250 Support for Audio Video Bridging (AVB)
One of the many features designed into the new M4250 product line is full support for Audio Video Bridging (AVB), an industry standard for transporting content over a network. AVB is used most often when very low latency is required such as in live performances when lip sync is critical. All of the AV Line M4250 switches can be optionally licensed for AVB support.

Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.

Specificaties

Beheerfuncties

Switch type*
Managed
Switch-laag
L2/L3
Quality of Service (QoS)
Ja

Poorten & interfaces

Aantal basis-switching RJ-45 Ethernet-poorten*
10
Type basis-switching RJ-45 Ethernet-poorten*
Gigabit Ethernet (10/100/1000)
Aantal moduleslots SPF
2

Netwerk

Netwerkstandaard*
IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3x
10G support*
Nee
Full duplex
Ja
Verbindingsaggregatie
Ja
Broadcast stormbeheer
Ja
Rate limiting
Ja
Spanning tree protocol
Ja
VLAN=ondersteuning
Ja
Virtuele LAN-functies
MAC address-based VLAN, Private VLAN, Protocol-based VLAN, Tagged VLAN, Voice VLAN
Aantal VLANs
4093

Data-uitwisseling

Switchingcapaciteit*
24 Gbit/s
Throughput
17,86 Mpps
MAC-adrestabel*
16000 entries
Store-and-forward
Ja
Latentie (1 Gbps)
2,27 µs
Aantal wachtrijen
8
Jumbo Frames ondersteuning
Ja
Jumbo frames
12000
Packet buffergeheugen
16 MB

Beveiliging

DHCP-functies
DHCP Option 82, DHCP relay, DHCP server, DHCP snooping, DHCPv6 client, DHCPv6 relay, DHCPv6 server, DHCPv6 snooping
Access Control List (ACL)
Ja
IGMP snooping
Ja
SSH/SSL support
Ja
Bescherming lus
Ja
BPDU filtering / bescherming
Ja
Authenticatie
MAC-gebaseerde authenticatie
Authenticatie type
RADIUS

Multicast-functies

Multicast-ondersteuning
Ja
IPv4-multicast-vermeldingen
2000
IPv6-multicast-vermeldingen
2000

Design

Rack-montage*
Ja
Vormfactor
1U
Kleur van het product
Zwart
LED-indicatoren
Power over Ethernet (PoE), Stroom, Status

Prestatie

Type processor
Ja
Processormodel
ARM Cortex-A9
Frequentie van processor
1250 MHz
Intern geheugen
2048 MB
Geluidsniveau
30,06 dB
Mean time between failures (MTBF)
778769 uur

Energie

Stroomverbruik (typisch)
163,9 W

Power over Ethernet (PoE)

Power over Ethernet (PoE)*
Ja
Aantal Power over Ethernet plus (PoE +)-poorten
8
Vermogen per poort Power over Ethernet (PoE)
30 W
Totaal Power over Ethernet (PoE)-budget
150 W

Eisen aan de omgeving

Bedrijfstemperatuur (T-T)
0 - 50 °C
Temperatuur bij opslag
-20 - 70 °C
Relatieve vochtigheid in bedrijf (V-V)
0 - 90 procent
Luchtvochtigheid bij opslag
0 - 95 procent
Hoogte, in bedrijf
0 - 3000 m
Hoogte bij opslag
0 - 3000 m
Warmtedissipatie
559,555 BTU/h

Gewicht en omvang

Breedte
440 mm
Diepte
200 mm
Hoogte
43,2 mm
Gewicht
2,85 kg

Logistieke gegevens

Code geharmoniseerd systeem (HS)
85176990
