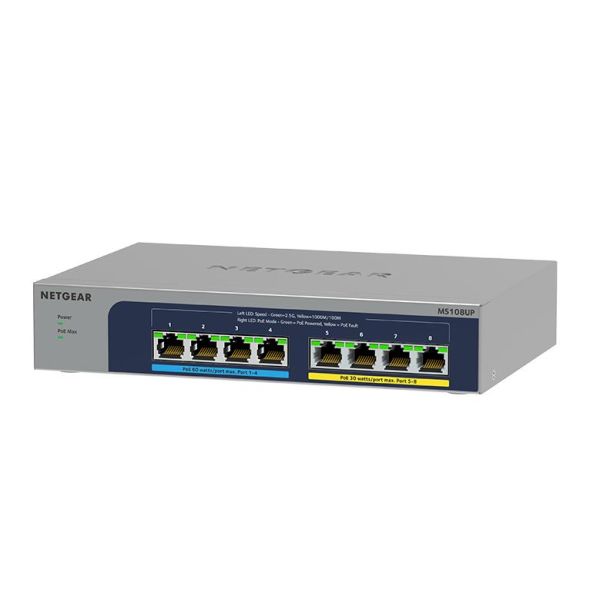

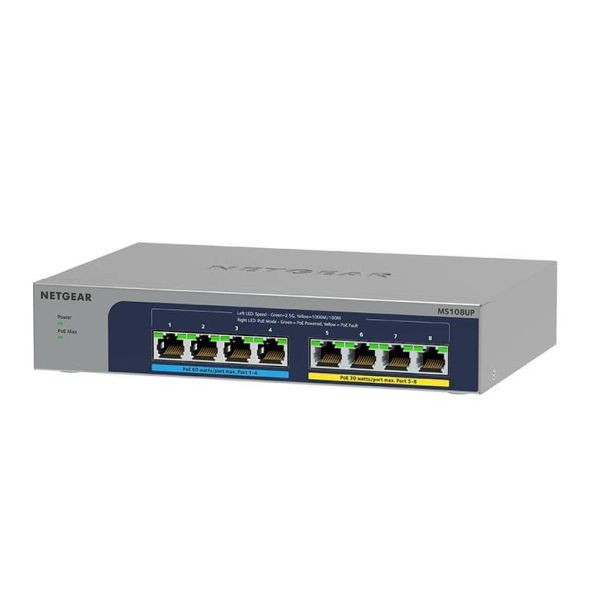

NETGEAR MS108UP Unmanaged 2.5G Ethernet (100/1000/2500) Power over Ethernet (PoE)
NETGEAR brings the first Unmanaged
Multi-Gigabit PoE++ switch MS108UP with 60Watts per port Ultra60 PoE++ technology, ideal for powerful PoE++ installations with PoE budgets up to 230W, a compact size, plug-and-play
installation, and reliable performance at affordable prices. The new model MS108UP supports 2.5 Gigabit speed connectivity and Power-Over-Ethernet (PoE) that can provide up to 60W/port. The new switch model can power devices such as VoIP phones, surveillance IP cameras, wireless access
points and many other applications. This new Unmanaged switch provides PoE Auto-Balance to help automatically balance the PoE power based on the device needs independent of PoE class detected. With the growing deployment of applications and an allin-one solution, providing multi-speed and high power to these applications would be ideal.
Multi-Gigabit PoE++ switch MS108UP with 60Watts per port Ultra60 PoE++ technology, ideal for powerful PoE++ installations with PoE budgets up to 230W, a compact size, plug-and-play
installation, and reliable performance at affordable prices. The new model MS108UP supports 2.5 Gigabit speed connectivity and Power-Over-Ethernet (PoE) that can provide up to 60W/port. The new switch model can power devices such as VoIP phones, surveillance IP cameras, wireless access
points and many other applications. This new Unmanaged switch provides PoE Auto-Balance to help automatically balance the PoE power based on the device needs independent of PoE class detected. With the growing deployment of applications and an allin-one solution, providing multi-speed and high power to these applications would be ideal.
- Multi-Gigabit Ethernet
- Non-Blocking Switching
- PoE Support
- Fanless Design
- PoE Auto-Balance
- Versatile Mounting Options
Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten. Meld fout
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten. Meld fout
Beheerfuncties
Switch type*
Unmanaged
Quality of Service (QoS)
Ja
Poorten & interfaces
Aantal basis-switching RJ-45 Ethernet-poorten*
8
Type basis-switching RJ-45 Ethernet-poorten*
2.5G Ethernet (100/1000/2500)
Aantal 2.5G Ethernet (koper)poorten
8
Netwerk
Netwerkstandaard*
IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3bt, IEEE 802.3u, IEEE 802.3x
10G support*
Nee
Full duplex
Ja
Half-duplex
Ja
Auto MDI/MDI-X
Ja
Head-of-line (HOL) blocking
Ja
Ethernet LAN, data-overdrachtsnelheden
100,1000,2500 Mbit/s
Auto-sensing
Ja
VLAN=ondersteuning
Ja
Aantal VLANs
64
Data-uitwisseling
Switchingcapaciteit*
40 Gbit/s
MAC-adrestabel*
16000 entries
Latentie (1 Gbps)
3,593 µs
Jumbo Frames ondersteuning
Ja
Jumbo frames
12000
Packet forwarding rate (1 Gbps)
1488000 pps
Packet buffergeheugen
1,5 MB
Design
Rack-montage*
Nee
Materiaal behuizing
Metaal
LED-indicatoren
Activiteit, Link, Power over Ethernet (PoE), Stroom
Ophangsysteem voor aan de muur
Ja
Design
Aantal ventilatoren
0 ventilator(en)
Elektromagnetische compatibiliteit
CE, FCC part 15 Class B, ISED, VCCI, KC, CCC, BSMI, RCM
Prestatie
Fanloos
Ja
Mean time between failures (MTBF)
373643,7 uur
Energie
Stroombron*
DC
Vermogenstoevoer inclusief*
Ja
DC voltage input
54 V
Stroom
4.7 A
Power over Ethernet (PoE)
Power over Ethernet (PoE)*
Ja
Aantal Power over Ethernet plus (PoE +)-poorten
8
Totaal Power over Ethernet (PoE)-budget
230 W
Eisen aan de omgeving
Bedrijfstemperatuur (T-T)
0 - 40 °C
Temperatuur bij opslag
-20 - 70 °C
Relatieve vochtigheid in bedrijf (V-V)
0 - 90 procent
Hoogte, in bedrijf
0 - 3000 m
Warmtedissipatie
923,49 BTU/h
Gewicht en omvang
Breedte
210 mm
Diepte
140 mm
Hoogte
40 mm
Gewicht
900 g
Certificaten
Certificering
CB, CSA, CCC, BSMI, RCM
Logistieke gegevens
Code geharmoniseerd systeem (HS)
85176990
