NETGEAR MS510TXM netwerk-switch Managed L2/L3/L4 10G Ethernet (100/1000/10000) Grijs, Blauw

NETGEAR MS510TXM, Managed, L2/L3/L4, 10G Ethernet (100/1000/10000), Full duplex, Rack-montage

Ruim op voorraad

Fabrikant Netgear
MPN MS510TXM-100EUS
EAN 0606449152364
€ 540,00 excl. BTW

NETGEAR MS510TXM netwerk-switch Managed L2/L3/L4 10G Ethernet (100/1000/10000) Grijs, Blauw

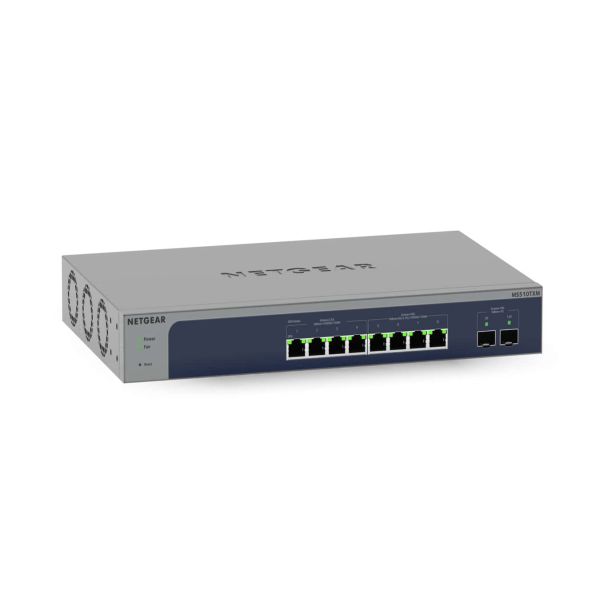

The NETGEAR® MS510TXM 8-Port Multi-Gigabit/10G Smart Managed Pro Switch offers 4 ports 1G/2.5G and 4 ports multi-Gig/10G with 2 dedicated 10 Gigabit fiber ports for WiFi 6 AP connectivity, IP surveillance and mobility. It is the ideal companion to the NETGEAR WAX610PA WiFi 6 Access Point that features a 2.5G Ethernet port and a power adapter.

MS510TXM provides four auto-adapt multispeed Gigabit RJ-45 ports that support 2.5G, and 1G; another four multi-speed Gigabit RJ-45 ports that support 10G, 5G, 2.5G and 1G, and two dedicated SFP+ fiber uplink port that supports 10G and 1G. Each of the 5 Multi-Gig Ethernet ports automatically detects which speed is needed by the connected device and provides the adequate connection speed.

Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.

Specificaties

Beheerfuncties

Switch type*
Managed
Switch-laag
L2/L3/L4
Quality of Service (QoS)
Ja
Web-gebaseerd management
Ja
Cloud-beheerd
Ja

Poorten & interfaces

Aantal basis-switching RJ-45 Ethernet-poorten*
8
Type basis-switching RJ-45 Ethernet-poorten*
10G Ethernet (100/1000/10000)
Aantal moduleslots SPF+
2

Netwerk

Netwerkstandaard*
IEEE 802.1D, IEEE 802.1s, IEEE 802.1w, IEEE 802.3ad, IEEE 802.3x
10G support*
Ja
Koperen ethernetbekabelingstechnologie
1000BASE-T
Port mirroring
Ja
Full duplex
Ja
Datastroombeheer
Ja
Verbindingsaggregatie
Ja
Broadcast stormbeheer
Ja
Spanning tree protocol
Ja
Ethernet LAN, data-overdrachtsnelheden
100,1000,2500,5000,10000 Mbit/s
VLAN=ondersteuning
Ja
Aantal VLANs
256

Data-uitwisseling

Switchingcapaciteit*
140 Gbit/s
MAC-adrestabel*
32000 entries
Jumbo Frames ondersteuning
Ja
Jumbo frames
10000

Beveiliging

DHCP-functies
DHCP client, DHCP server
Access Control List (ACL)
Ja
Toegangsbeheerlijst (ACL) inkomend
100
IGMP snooping
Ja

Beveiliging

Ondersteunde beveiligingsalgoritmen
HTTPS, SSL/TLS
Bescherming lus
Ja

Multicast-functies

Multicast-ondersteuning
Ja

Protocollen

Beheerprotocollen
SNMP v1/v2c,SNMP v3

Design

Rack-montage*
Ja
Kleur van het product
Grijs, Blauw
LED-indicatoren
Activiteit, Stroom, Snelheid

Prestatie

Type processor
Ja
Frequentie van processor
1000 MHz
Intern geheugen
256 MB
Flash memory
64 MB

Energie

Vermogenstoevoer inclusief*
Ja

Power over Ethernet (PoE)

Power over Ethernet (PoE)*
Nee

Eisen aan de omgeving

Bedrijfstemperatuur (T-T)
0 - 50 °C
Temperatuur bij opslag
-20 - 70 °C
Relatieve vochtigheid in bedrijf (V-V)
0 - 95 procent
Luchtvochtigheid bij opslag
0 - 95 procent
Hoogte, in bedrijf
0 - 3000 m
Hoogte bij opslag
0 - 3000 m

Gewicht en omvang

Breedte
330 mm
Diepte
206 mm
Hoogte
43 mm
