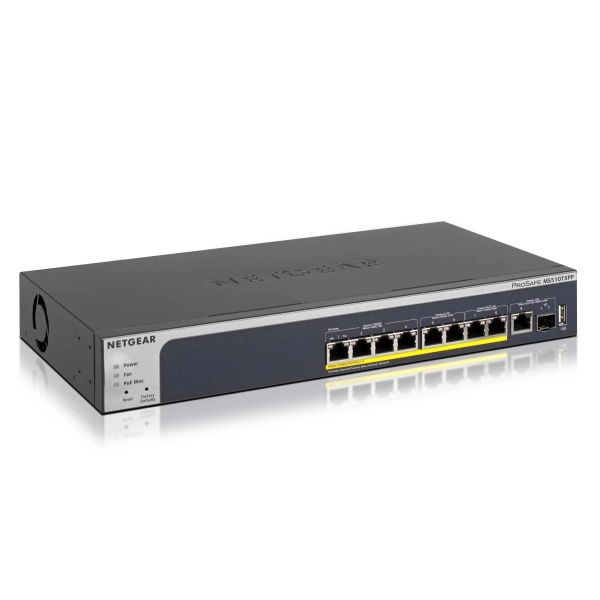

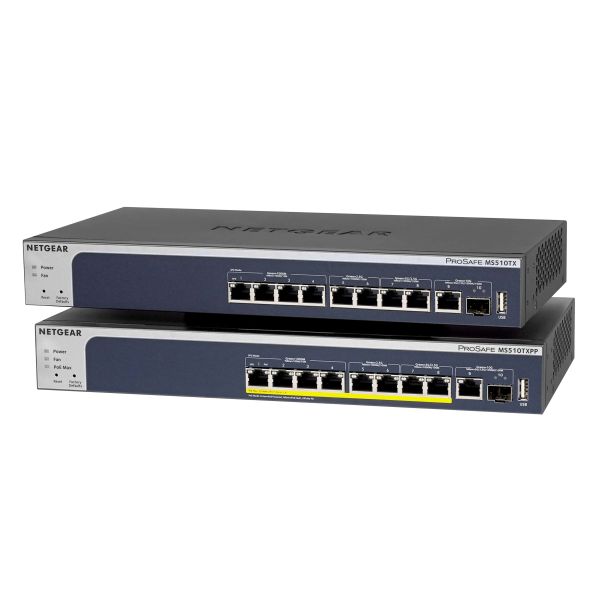

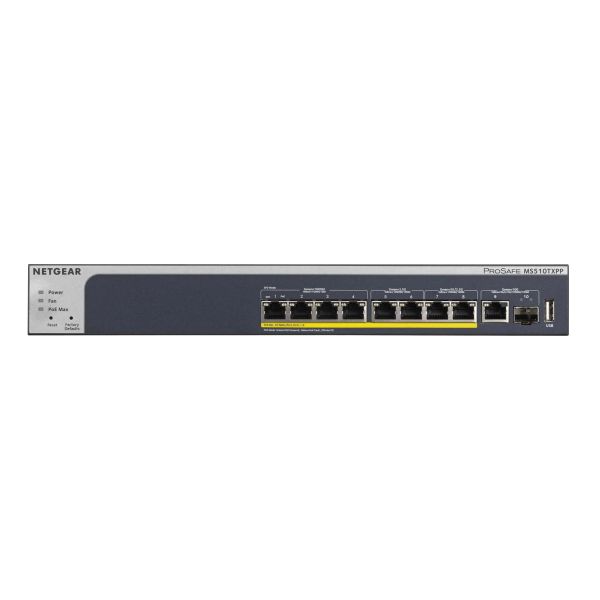

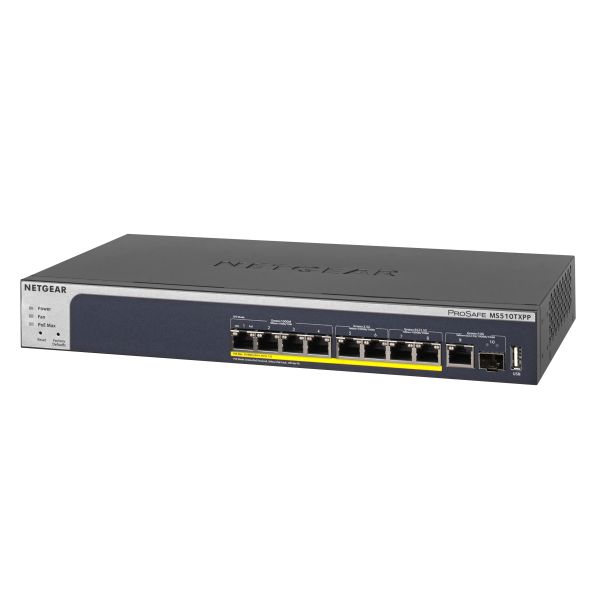

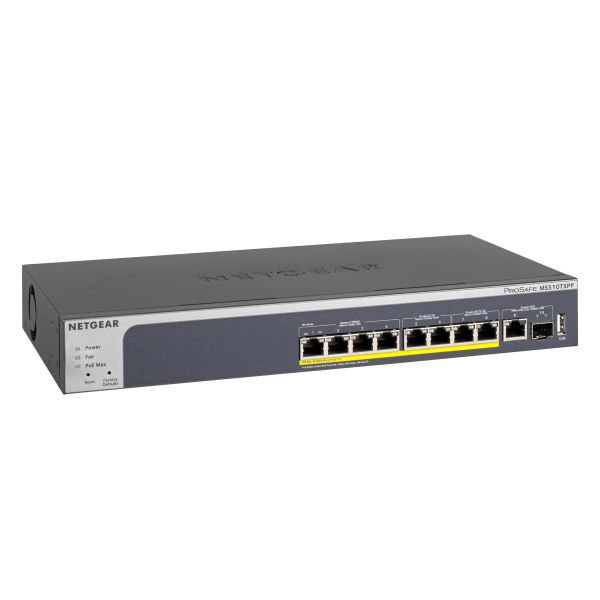

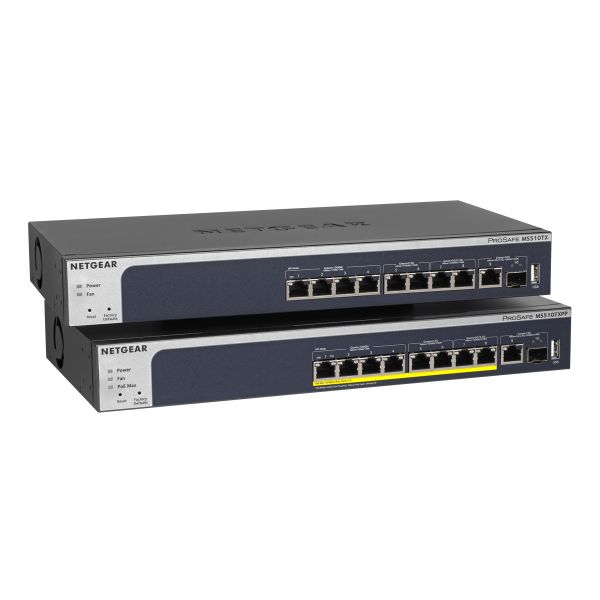

NETGEAR MS510TXPP, Managed, L2/L3/L4, 10G Ethernet (100/1000/10000), Full duplex, Power over Ethernet (PoE), Rack-montage

Ruim op voorraad

Fabrikant Netgear
MPN MS510TXPP-100EUS
EAN 0606449120967

NETGEAR MS510TXPP Managed L2/L3/L4 10G Ethernet (100/1000/10000) Power over Ethernet (PoE) Grijs

Fluisterstil
Maximaal 27.3 dB (GS716TP), zelfs bij vol vermoen en een omgevingstemperatuur van 25 °C (77 °F).

Bewegingsvrijheid
5 verschillende poorten beschikbaar: 1G, 2.5G, 5G, 10G: SFP+ en koper.

180W PoE-gemak
Met 8 PoE-poorten kunt u eenvoudig en veilig VoIP-telefoons, IP-camera's, video-over-IP-endpoints en Wireless access points implementeren.

Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.

Specificaties

Beheerfuncties

Switch type*
Managed
Switch-laag
L2/L3/L4
Quality of Service (QoS)
Ja
Web-gebaseerd management
Ja
ARP-inspectie
Ja

Poorten & interfaces

Aantal basis-switching RJ-45 Ethernet-poorten*
8
Type basis-switching RJ-45 Ethernet-poorten*
10G Ethernet (100/1000/10000)
Aantal Gigabit Ethernet (koper)-poorten
4
Aantal 2.5G Ethernet (koper)poorten
2
Aantal 10G Ethernet (koper)poorten
1
Aantal moduleslots SPF+
1
Console port
RJ-45
Aantal USB 2.0-poorten
1
Netstekker
DC-in ingang

Netwerk

Netwerkstandaard*
IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3an, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
10G support*
Nee
Full duplex
Ja
Half-duplex
Ja
Datastroombeheer
Ja
Verbindingsaggregatie
Ja
Broadcast stormbeheer
Ja
Spanning tree protocol
Ja
Auto-negotiation
Ja
VLAN=ondersteuning
Ja
Aantal VLANs
256

Data-uitwisseling

Switchingcapaciteit*
78 Gbit/s
MAC-adrestabel*
16000 entries
Latentie (10 Gbps)
2,36 µs
Statische route
Ja
Aantal statische routes
32
Jumbo Frames ondersteuning
Ja
Jumbo frames
10000
Packet buffergeheugen
3 MB

Beveiliging

DHCP-functies
DHCP server, DHCP client
Access Control List (ACL)
Ja
Regels voor toegangscontrolelijst (ACL)
164
IGMP snooping
Ja

Multicast-functies

Multicast-ondersteuning
Ja
Multicast MAC adrestabel
512 entries

Design

Rack-montage*
Ja
Kleur van het product
Grijs
LED-indicatoren
Ja
Aantal ventilatoren
1 ventilator(en)
Veiligheid
IEC 60950-1:2005, A1:2009+A2:2013, EN 60950-1: 2006 + A11:2009 + A1:2010 + A12:2011 + A2:2013, 60950.1:2015, GB4943.1-2011, YD/T993-1998; GB/T9254-2008, CNS 14336-1
Certificering
EN 55032:2012+AC:2013/CISPR 32:2012, EN 61000-3-2:2014, EN 61000-3-3:2013, EN 55024:2010, VCCI-CISPR 32:2016, AS/NZS CISPR 32:2013, GB4943.1-2011; YD/T993-1998; GB/T9254-2008, 47 CFR FCC, ANSI C63.4:2014, ICES-003:2016, ANSI C63.4:2014, CNS 13438

Prestatie

Type processor
Ja
Frequentie van processor
800 MHz
Geluidsniveau
28,8 dB
Mean time between failures (MTBF)
376434 uur

Energie

Stroombron*
AC
Vermogenstoevoer inclusief*
Nee
AC-ingangsspanning
100 - 240 V
AC-ingangsfrequentie
50 - 60 Hz
Stroomverbruik (typisch)
19,39 W
Vermogensverbruik (max)
234,31 W

Power over Ethernet (PoE)

Power over Ethernet (PoE)*
Ja
Aantal Power over Ethernet plus (PoE +)-poorten
8
Totaal Power over Ethernet (PoE)-budget
180 W

Eisen aan de omgeving

Bedrijfstemperatuur (T-T)
0 - 50 °C
Temperatuur bij opslag
-20 - 70 °C
Relatieve vochtigheid in bedrijf (V-V)
0 - 90 procent
Luchtvochtigheid bij opslag
0 - 95 procent
Hoogte, in bedrijf
0 - 3000 m
Warmtedissipatie
799,5 BTU/h

Gewicht en omvang

Breedte
440 mm
Diepte
204 mm
Hoogte
43 mm
Gewicht
2,61 kg

Logistieke gegevens

Code geharmoniseerd systeem (HS)
85176990
