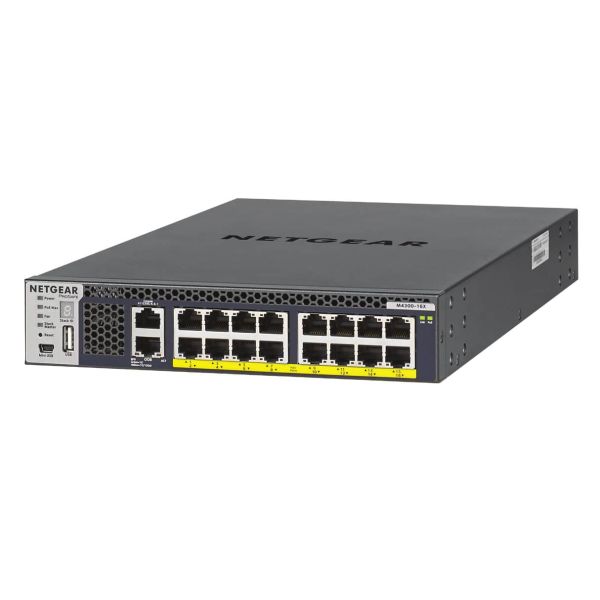

NETGEAR M4300-16X Managed L3 10G Ethernet (100/1000/10000) Power over Ethernet (PoE) 1U Zwart

NETGEAR M4300-16X, Managed, L3, 10G Ethernet (100/1000/10000), Power over Ethernet (PoE), Rack-montage, 1U

Ruim op voorraad

Fabrikant Netgear
MPN XSM4316PB-100NES
EAN 0606449140989
€ 2.861,00 excl. BTW

NETGEAR M4300-16X Managed L3 10G Ethernet (100/1000/10000) Power over Ethernet (PoE) 1U Zwart

The world’s only 1G, 10G and 40G stackable platform designed for server and audiovisual installations, converged access layer and dependable core in SMB environments. M4300 stacking topologies deliver 384-port 1G, 768-port 10G, 192-port 40G, or a combination in redundant, unstoppable systems for edge to core connectivity.

The NETGEAR M4300 Stackable Switch Series delivers L2/L3/L4 and IPv4/IPv6 cost-effective services for mid-enterprise edge with full PoE+ and SMB core deployments with unrivalled ease of use: 10 Gigabit models can seamlessly stack with 1 Gigabit models within the series, enabling spine and leaf line-rate stacking topologies. Non-stop forwarding (NSF) virtual chassis architectures provide advanced High Availability (HA) with hitless failover across the stack. Dual redundant, modular power supplies equipping full width models contribute to business continuity management. Layer 3 feature set includes static, dynamic and policy-based routing – as standard. The NETGEAR M4300 Switch Series is perfect for wireless access, unified communications and professional AV-over-IP installations.
  • 16-port 100M/1G/2.5G/5G/10GBASE-T with PoE+ (copper RJ45)
  • 320Gbps non-blocking fabric across 16 ports
  • Out-of-band 1G Ethernet management port
  • Mini-USB and RJ45 RS232 console ports and USB storage port
  • Full L3 feature set and non-stop forwarding (NSF) stacking
  • Half-width form factor with one- and two-unit rack mount kit
  • Two half-width switches can be installed in a single rack space for redundant top-of-rack
  • Ships with one modular APS600W PSU in its power supply slot
  • Low acoustics (36dB with APS299W, 35dB with APS600W, @25°C / 77°F )

Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.

Specificaties

Beheerfuncties

Switch type*
Managed
Switch-laag
L3
Quality of Service (QoS)
Ja

Poorten & interfaces

Aantal basis-switching RJ-45 Ethernet-poorten*
16
Type basis-switching RJ-45 Ethernet-poorten*
10G Ethernet (100/1000/10000)
Console port
RJ-45/Mini-USB
Aantal USB 2.0-poorten
1

Netwerk

Netwerkstandaard*
IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1v, IEEE 802.1w, IEEE 802.3, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3bz, IEEE 802.3u
10G support*
Ja
Port mirroring
Ja
IP routing
Ja
Verbindingsaggregatie
Ja
Auto-sensing
Ja
VLAN=ondersteuning
Ja
Virtuele LAN-functies
Private VLAN, Tagged VLAN, Voice VLAN
Aantal VLANs
4093

Data-uitwisseling

Switchingcapaciteit*
320 Gbit/s
Throughput
238 Mpps
MAC-adrestabel*
16000 entries
Store-and-forward
Ja
Aantal wachtrijen
8
Aantal statische routes
64
Jumbo Frames ondersteuning
Ja
Jumbo frames
9000

Beveiliging

DHCP-functies
DHCP client, DHCP snooping, DHCPv6 client, DHCPv6 relay, DHCPv6 server, DHCPv6 snooping
Access Control List (ACL)
Ja
IGMP snooping
Ja
BPDU filtering / bescherming
Ja
Authenticatie
Gast-VLAN, MAC-gebaseerde authenticatie

Multicast-functies

Multicast-ondersteuning
Ja
Aantal gefilterde multicast-groepen
4000

Protocollen

GARP VLAN Registratieprotocol (GVRP)
Ja
Routing protocols
OSPF, OSPFv3, RIP, RIP-1, RIP-2

Design

Rack-montage*
Ja
Stapelbaar*
Ja
Vormfactor
1U
Kleur van het product
Zwart
Luchtstroomrichting
Luchtstroom van voren naar achteren

Prestatie

Physical stacking (units)
8
Type processor
Ja
Frequentie van processor
800 MHz
Intern geheugen
1024 MB
Geluidsniveau
35 dB
Mean time between failures (MTBF)
690301 uur

Energie

Vermogenstoevoer inclusief*
Ja
Aantal voedingen
1
Vermogensverbruik (max)
610 W

Power over Ethernet (PoE)

Power over Ethernet (PoE)*
Ja
Aantal Power over Ethernet plus (PoE +)-poorten
16
Vermogen per poort Power over Ethernet (PoE)
30 W
Totaal Power over Ethernet (PoE)-budget
500 W

Eisen aan de omgeving

Warmtedissipatie
2081,64 BTU/h

Gewicht en omvang

Breedte
212 mm
Diepte
345 mm
Hoogte
44 mm
Gewicht
3,22 kg

Verpakking

Rekbevestigingspakket
Ja

Logistieke gegevens

Code geharmoniseerd systeem (HS)
85176990
