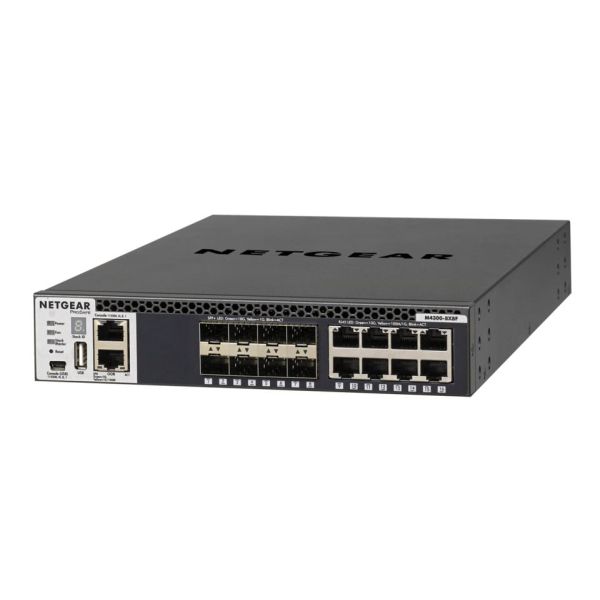

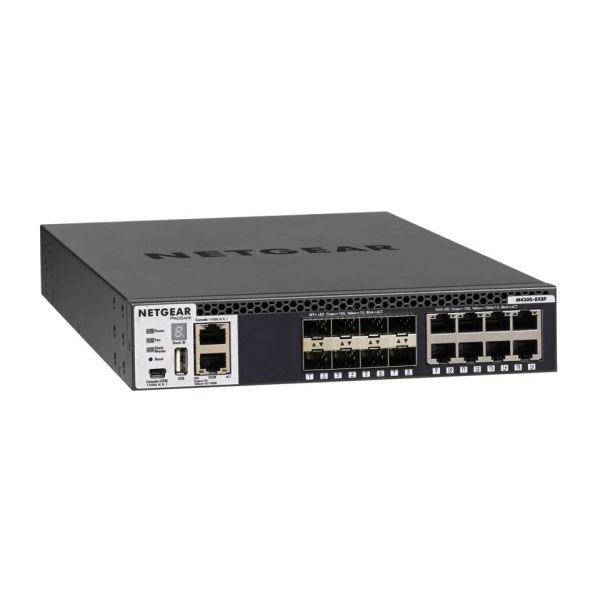

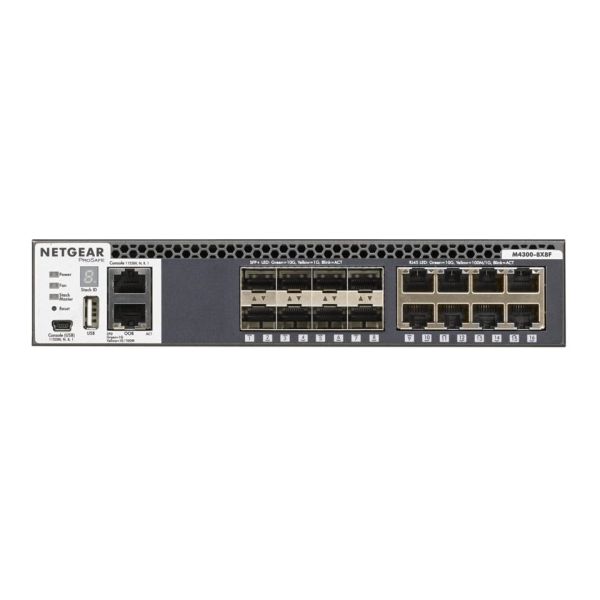

NETGEAR M4300-8X8F Managed L3 10G Ethernet (100/1000/10000) 1U Zwart

NETGEAR M4300-8X8F, Managed, L3, 10G Ethernet (100/1000/10000), Rack-montage, 1U

Ruim op voorraad

Fabrikant Netgear
MPN XSM4316S-100NES
EAN 0606449110005
€ 1.896,00 excl. BTW

NETGEAR M4300-8X8F Managed L3 10G Ethernet (100/1000/10000) 1U Zwart

The NETGEAR M4300 Stackable Switch Series delivers L2/L3/L4 and IPv4/IPv6 cost-effective services for mid-enterprise edge with full PoE+ and SMB core deployments with unrivalled ease of use: 10 Gigabit models can seamlessly stack with 1 Gigabit models within the series, enabling spine and leaf line-rate stacking topologies. Non-stop forwarding (NSF) virtual chassis architectures provide advanced High Availability (HA) with hitless failover across the stack. Dual redundant, modular power supplies equipping full width models contribute to business continuity management. Layer 3 feature set includes static, dynamic and policy-based routing – as standard. Perfect for wireless access, unified communications and IP video, the NETGEAR M4300 Switch Series is also ready for the future, with Software-defined Network (SDN) and OpenFlow 1.3 enabled for your network.

Best-in-class stacking

- M4300 is flexible enough for mixed stacking between 10 Gigabit and 1 Gigabit models, using any 10G port with any media type (RJ45, SFP+, DAC cables)
- High-availability is another key differentiator for stackable solutions: in case of a master switch failure, NSF and hitless failover ensure the standby switch takes over while forwarding plane continues to forward traffic on the operational stack members without any service interruption

Higher flexibility

- Two half-width M4300 switches can be paired in a single rack space for redundant Top of Rack installations with Auto-iSCSI prioritization
- 10 Gigabit ports are all independent and 1G backward compatible for progressive transition to 10G speeds

Lower complexity

- Entire feature set including L2 switching (multi-tiered access control) and L3 routing (static, RIP, OSPF, VRRP, PIM, PBR) is available without license
- DHCP/BootP innovative auto-installation including firmware and configuration file upload automation

Investment protection

- Line-rate spine and leaf stacking topologies offer multiple possibilities in server rooms, in branch collapsed cores or at the edge of growing networks
- Even if an organization is not ready for SDN, OpenFlow support offers future-ready design for maximum investment protection

Secure services

- With successive tiering, the Authentication Manager allows for authentication methods per port for a tiered authentication based on configured time-outs
- With BYOD, tiered Dot1x -> MAB -> Captive Portal authentication is powerful and simple to implement with strict policies

Industry standard management

- Industry standard command line interface (CLI), functional NETGEAR web interface (GUI), SNMP, sFlow and RSPAN
- Single-pane-of-glass NMS300 management platform with centralized firmware updates and mass-configuration support

Industry leading warranty

- NETGEAR M4300 series is covered under NETGEAR ProSafe Lifetime Hardware Warranty
- 90 days of Technical Support via phone and email, Lifetime Technical Support through online chat and Lifetime Next Business Day hardware replacement

Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.

Specificaties

Beheerfuncties

Switch type*
Managed
Switch-laag
L3
Quality of Service (QoS)
Ja
Web-gebaseerd management
Ja
ARP-inspectie
Ja

Poorten & interfaces

Aantal basis-switching RJ-45 Ethernet-poorten*
8
Type basis-switching RJ-45 Ethernet-poorten*
10G Ethernet (100/1000/10000)
Aantal moduleslots SPF+
8
Vezel-optische connector
SFP+
Console port
RJ-45/Mini-USB
Aantal USB 2.0-poorten
1

Netwerk

Netwerkstandaard*
IEEE 802.11ad, IEEE 802.11az, IEEE 802.3ad, IEEE 802.3az
10G support*
Ja
Ondersteundende kabel types
Cat5, Cat5e, Cat6, Cat7
Port mirroring
Ja
IP routing
Ja
Datastroombeheer
Ja
Verbindingsaggregatie
Ja
Rate limiting
Ja
Auto MDI/MDI-X
Ja
Spanning tree protocol
Ja
Auto-sensing
Ja
Auto-negotiation
Ja
VLAN=ondersteuning
Ja
Virtuele LAN-functies
Private VLAN

Optische vezel

Fiber ethernet cabling technologie
10GBASE-LR, 10GBASE-LRM, 10GBASE-SR

Data-uitwisseling

Switchingcapaciteit*
320 Gbit/s
Verzending snelheid
357 Mpps
MAC-adrestabel*
16000 entries
Store-and-forward
Ja
Aantal statische routes
64
Jumbo Frames ondersteuning
Ja
Jumbo frames
9000

Beveiliging

DHCP-functies
DHCP server, DHCP client
Access Control List (ACL)
Ja
Ondersteunde beveiligingsalgoritmen
HTTPS, SNMP, SSH
SSH/SSL support
Ja
BPDU filtering / bescherming
Ja

Multicast-functies

Multicast-ondersteuning
Ja

Multicast-functies

Aantal gefilterde multicast-groepen
4000

Design

Rack-montage*
Ja
Stapelbaar*
Ja
Vormfactor
1U
Kleur van het product
Zwart
LED-indicatoren
Activiteit, Stroom, Snelheid
Veiligheid
CSA 22.2 #950, UL 1950)/cUL IEC 950/EN 60950
Elektromagnetische compatibiliteit
CE, FCC 15 A, VCCI A, A EN 55022, (CISPR 22) A, EN 50082-1, EN 55024

Prestatie

Type processor
Ja
Frequentie van processor
800 MHz
Intern geheugen
1024 MB
Flash memory
256 MB
Geluidsniveau
36,9 dB
Mean time between failures (MTBF)
196120 uur

Energie

Vermogenstoevoer inclusief*
Ja
Aantal voedingen
1
AC-ingangsspanning
120 - 230 V
Vermogensverbruik (max)
49 W

Power over Ethernet (PoE)

Power over Ethernet (PoE)*
Nee

Eisen aan de omgeving

Bedrijfstemperatuur (T-T)
0 - 50 °C
Temperatuur bij opslag
-20 - 70 °C
Relatieve vochtigheid in bedrijf (V-V)
0 - 90 procent
Luchtvochtigheid bij opslag
0 - 95 procent
Hoogte, in bedrijf
0 - 3000 m
Hoogte bij opslag
0 - 3000 m
Warmtedissipatie
18577 BTU/h

Gewicht en omvang

Breedte
212 mm
Diepte
345 mm
Hoogte
44 mm
Gewicht
3,32 kg

Verpakking

Meegeleverde kabels
AC, LAN (RJ-45), Mini-USB
Gebruiksaanwijzing
Ja
Rekbevestigingspakket
Ja
Rubberen voetjes
Ja
Ondersteunings-cd
Ja

Logistieke gegevens

Code geharmoniseerd systeem (HS)
85176990
