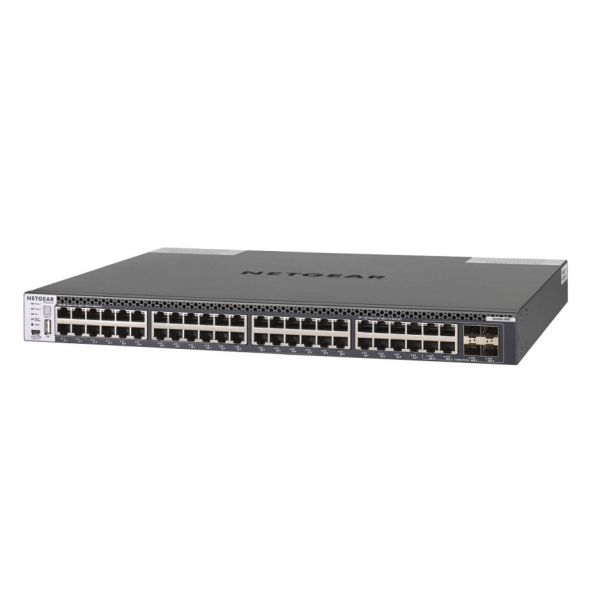

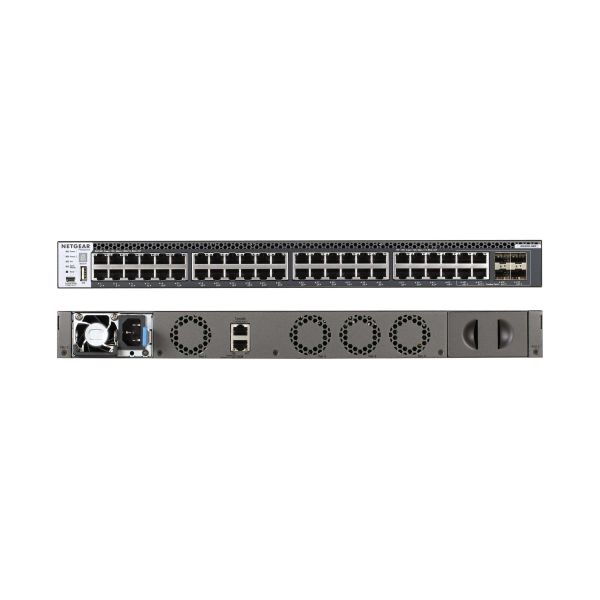

Netgear M4300-48X Managed L3 10G Ethernet (100/1000/10000) Zwart 1U (XSM4348CS-100NES)

Schrijf de eerste review over dit product en win een coupon van € 100,-!

€ 4.106,00
excl. BTW € 4.968,26 incl. BTW
Partnummer:

XSM4348CS-100NES

EAN: 0606449114607 Beschikbaarheid: Niet op voorraad
Omschrijving

M4300-48X 48 Port 10G Managed Switch

Bestel Nu >>
Toon in vergelijking
Toevoegen aan favorieten

Liever leasen? Dit kan al vanaf € 85,56 per maand.

Kies uw leasetermijn: maanden

Productinformatie

Netgear M4300-48X. Switch type: Managed, Switch-laag: L3. Type basis-switching RJ-45 Ethernet-poorten: 10G Ethernet (100/1000/10000), Aantal basis-switching RJ-45 Ethernet-poorten: 48, Aantal USB 2.0-poorten: 2, Console port: RJ-45. MAC-adrestabel: 128000 entries, Switchingcapaciteit: 960 Gbit/s. Netwerkstandaard: IEEE 802.1AX,IEEE 802.3ad,IEEE 802.3aq,IEEE 802.3az. Netstekker: DC-in ingang. Rack-montage, Vormfactor: 1U

ProSAFE M4300 Intelligent Edge Series

Stackable Switches with Full PoE+ Provisioning
The world’s first 1G and 10G virtual chassis platform with 10G stacking designed for mid-enterprise edge and SMB core deployments. The M4300 series scales from 24x1G to 48x10G to deliver resilient, spine and leaf, edge to core connectivity for unified wired and wireless networks.

Introducing the NETGEAR ProSAFE M4300 Intelligent Edge Series
Managed Switches with 10 Gigabit models and 1 Gigabit models all stacking together.

The NETGEAR ProSAFE M4300 Intelligent Edge Series applications
Cost effective edge, HA top-of-rack, and spine and leaf collapsed cores.

What sets M4300 Intelligent Edge Series apart?
Mixed stacking, hybrid 10G, full power PoE+, nonstop forwarding (NSF) and hitless failover.

The NETGEAR M4300 Stackable Switch Series delivers L2/L3/L4 and IPv4/IPv6 cost-effective services for mid-enterprise edge with full PoE+ and SMB core deployments with unrivalled ease of use: 10 Gigabit models can seamlessly stack with 1 Gigabit models within the series, enabling spine and leaf line-rate stacking topologies. Non-stop forwarding (NSF) virtual chassis architectures provide advanced High Availability (HA) with hitless failover across the stack. Dual redundant, modular power supplies equipping full width models contribute to business continuity management. Layer 3 feature set includes static, dynamic and policy-based routing – as standard. Perfect for wireless access, unified communications and IP video, the NETGEAR M4300 Switch Series is also ready for the future, with Software-defined Network (SDN) and OpenFlow 1.3 enabled for your network.

Best-in-class stacking
- M4300 is flexible enough for mixed stacking between 10 Gigabit and 1 Gigabit models, using any 10G port with any media type (RJ45, SFP+, DAC cables)
- High-availability is another key differentiator for stackable solutions: in case of a master switch failure, NSF and hitless failover ensure the standby switch takes over while forwarding plane continues to forward traffic on the operational stack members without any service interruption

Higher flexibility
- Two half-width M4300 switches can be paired in a single rack space for redundant Top of Rack installations with Auto-iSCSI prioritization
- 10 Gigabit ports are all independent and 1G backward compatible for progressive transition to 10G speeds

Lower complexity
- Entire feature set including L2 switching (multi-tiered access control) and L3 routing (static, RIP, OSPF, VRRP, PIM, PBR) is available without license
- DHCP/BootP innovative auto-installation including firmware and configuration file upload automation

Investment protection
- Line-rate spine and leaf stacking topologies offer multiple possibilities in server rooms, in branch collapsed cores or at the edge of growing networks
- Even if an organization is not ready for SDN, OpenFlow support offers future-ready design for maximum investment protection

Secure services
- With successive tiering, the Authentication Manager allows for authentication methods per port for a tiered authentication based on configured time-outs
- With BYOD, tiered Dot1x -> MAB -> Captive Portal authentication is powerful and simple to implement with strict policies

Industry standard management
- Industry standard command line interface (CLI), functional NETGEAR web interface (GUI), SNMP, sFlow and RSPAN
- Single-pane-of-glass NMS300 management platform with centralized firmware updates and mass-configuration support

Industry leading warranty
- NETGEAR M4300 series is covered under NETGEAR ProSafe Lifetime Hardware Warranty
- 90 days of Technical Support via phone and email, Lifetime Technical Support through online chat and Lifetime Next Business Day hardware replacement

Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.

Specificaties

Ontwerp

Rack-montage Ja
Kleur van het product Zwart
Formaat 1U
LED-indicatoren Ja
Kleur van het product Zwart

Beheerfuncties

Switch type Managed
System event log Ja
Multicast-ondersteuning Ja
Quality of Service (QoS) Ja
Reset button Ja
Switch-laag L3
ARP-inspectie Ja

Poorten & interfaces

Aantal basis-switching RJ-45 Ethernet-poorten 48
Type basis-switching RJ-45 Ethernet-poorten 10G Ethernet (100/1000/10000)
Console port RJ-45
Aantal USB 2.0-poorten 2
Aantal moduleslots SPF+ 4

Netwerk

Netwerkstandaard IEEE 802.1AX,IEEE 802.3ad,IEEE 802.3aq,IEEE 802.3az
10G support Ja
VLAN=ondersteuning Ja
DHCP server Ja
Verbindingsaggregatie Ja
Spanning tree protocol Ja
Private VLAN Ja

Data-uitwisseling

MAC-adrestabel 128000 entries
Switchingcapaciteit 960 Gbit/s
Throughput 714 Mpps
Aantal VLANs 4000

Protocollen

Beheerprotocollen Web GUI, HTTPs, CLI, Telnet, SSH, SNMP, MIBs RSPAN, Radius Users, TACACS+

data storage devices

Type processor Ja
Packet buffergeheugen 56 MB
Geluidsniveau 40,3 dB
Flash memory 256 MB
Intern geheugen 1024 MB
Frequentie van processor 800 MHz

Energie

AC invoer voltage 110-220 V
Stroomverbruik 250 W
Netstekker DC-in ingang

data storage devices

Power over Ethernet (PoE) Nee
