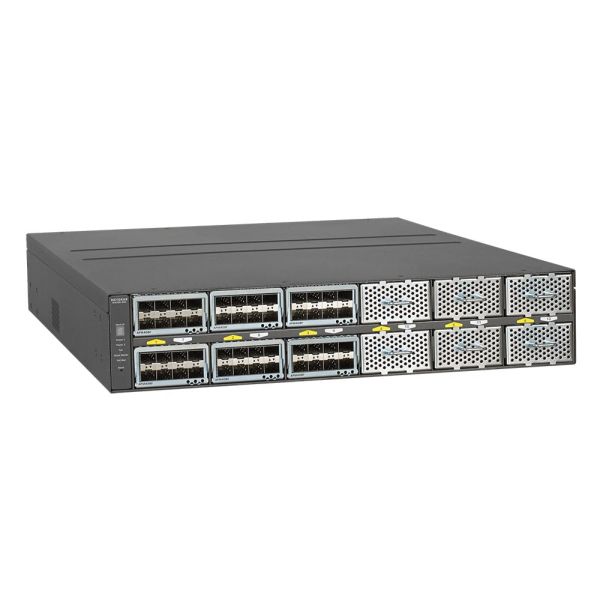

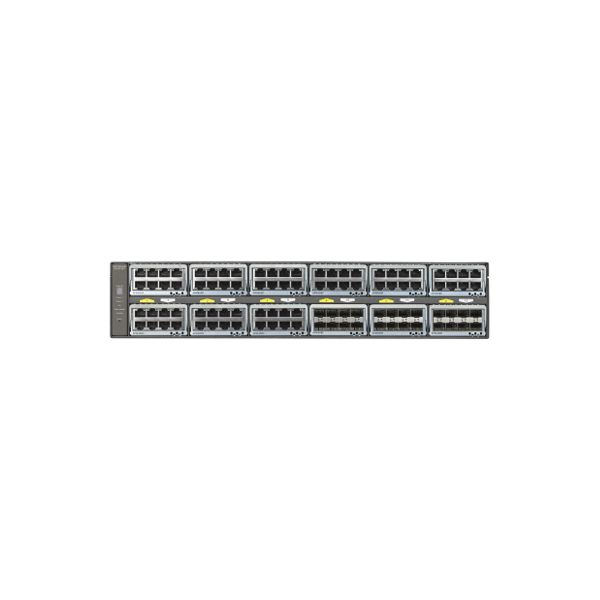

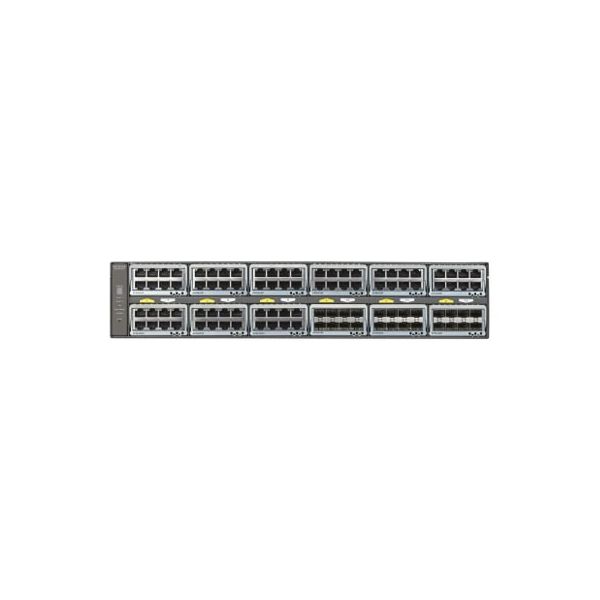

NETGEAR M4300-96X Managed L3 Geen 2U Zwart
The NETGEAR M4300 Stackable Switch Series delivers L2/L3/L4 and IPv4/IPv6 cost-effective services for mid-enterprise edge with full PoE+ and SMB core deployments with unrivalled ease of use: 10 Gigabit models can seamlessly stack with 1 Gigabit models within the series, enabling spine and leaf line-rate stacking topologies. Non-stop forwarding (NSF) virtual chassis architectures provide advanced High Availability (HA) with hitless failover across the stack. Dual redundant, modular power supplies equipping full width models contribute to business continuity management. Layer 3 feature set includes static, dynamic and policy-based routing – as standard. Perfect for wireless access, unified communications and IP video, the NETGEAR M4300 Switch Series is also ready for the future, with Software-defined Network (SDN) and OpenFlow 1.3 enabled for your network.
- Cost effective 1G access layer in campus LAN networks, and high performance 10G distribution layer for midsize organizations networks
- Zero Touch AV-over-IP with pre-configured L2 Multicast on all 1G models (1G AV encoders and decoders) and 10G models (SDVoE-ready)
- Advanced Layer 2, Layer 3 and Layer 4 feature set - no license required - including Policy Based Routing, RIP, VRRP, OSPF and PIM
- Innovative mixed "Spine and Leaf", 1G and 10G stacking with nonstop forwarding and hitless failover redundancy
- Low acoustics, half-width 16-port and 24-port 10G models can be paired in a single rack space for redundant Top of Rack
- Up to 384 (Gigabit) ports, 768 (10 Gigabit) ports, 192 (40 Gigabit) ports or a combination in a stack seen as one “logical” switch
- PoE+ (30 watts per port) with hot swap, redundant power supplies and full provisioning
- 48- and 96-port 10G models’ ultra-low latency and scalable table size with 128K MAC, 8K ARP/NDP, 4K VLANs, 12K routes
- Mixed Stack of 1G and 10G models provides 16K MAC, 2K ARP/NDP, 4K VLANs and 512 routes
- SDN-Ready OpenFlow 1.3 support for maximum investment protection
Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.
Specificaties
Beheerfuncties
Switch type*
Managed
Switch-laag
L3
Poorten & interfaces
Type basis-switching RJ-45 Ethernet-poorten*
Geen
Aantal moduleslots SPF+
48
Netwerk
10G support*
Ja
Auto-sensing
Ja
Address Resolution Protocol (ARP) vermeldingen (max)
8000
VLAN=ondersteuning
Ja
Aantal VLANs
4000
Data-uitwisseling
Switchingcapaciteit*
1920 Gbit/s
Verzending snelheid
2857 Mpps
MAC-adrestabel*
256000 entries
Aantal statische routes
64
Jumbo Frames ondersteuning
Ja
Packet buffergeheugen
96 MB
Beveiliging
DHCP-functies
DHCP server
Multicast-functies
Multicast-ondersteuning
Ja
Multicast-functies
IPv4-multicast-vermeldingen
2048
IPv6-multicast-vermeldingen
1024
Aantal gefilterde multicast-groepen
4000
Design
Rack-montage*
Ja
Vormfactor
2U
Kleur van het product
Zwart
Prestatie
Type processor
Ja
Frequentie van processor
1400 MHz
Intern geheugen
2048 MB
Flash memory
256 MB
sFlow
Ja
Energie
Vermogenstoevoer inclusief*
Ja
Aantal voedingen
1
Gewicht en omvang
Gewicht
16,3 kg
Logistieke gegevens
Code geharmoniseerd systeem (HS)
85176990
