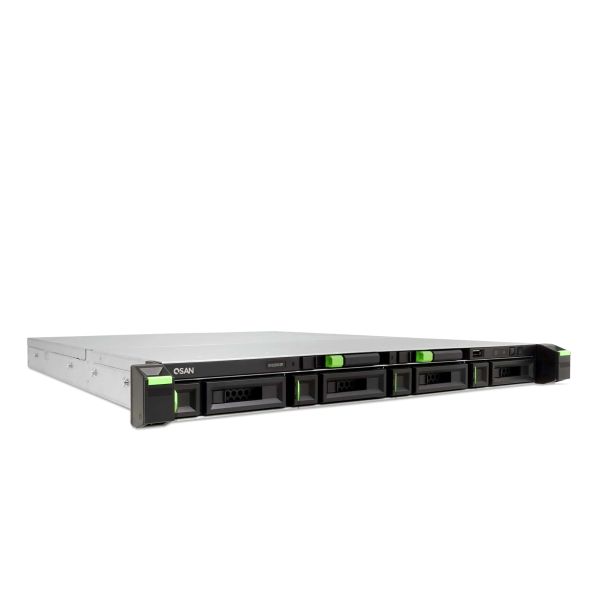

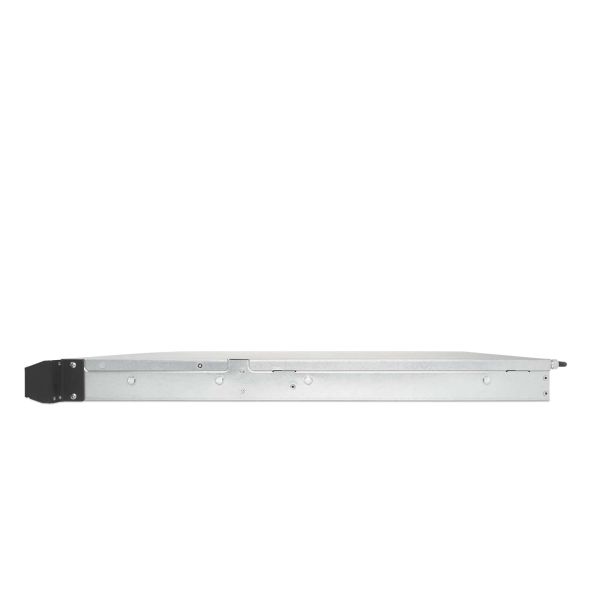

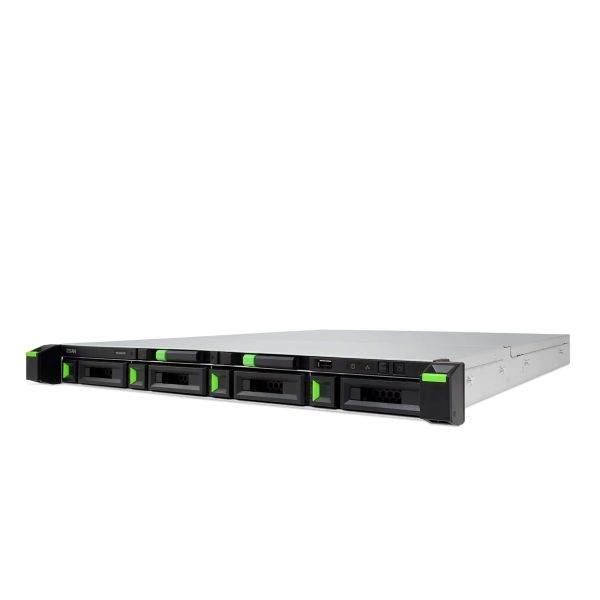

QSAN XCubeNAS XN5004R/8TB NAS Rack (1U) Ethernet LAN Zwart, Metallic G3930

QSAN XCubeNAS XN5004R/8TB, NAS, Rack (1U), Intel® Celeron®, G3930, 8 TB, Zwart, Metallic

Niet op voorraad

Fabrikant Origin Storage
MPN XN5004R/8TB
EAN 5059902030191
€ 2.832,00 excl. BTW

QSAN XCubeNAS XN5004R/8TB NAS Rack (1U) Ethernet LAN Zwart, Metallic G3930

The XCubeNAS series is a next generation, high performance, efficiency and security NAS system which is designed for SMB and enterprise applications. The XCubeNAS operating system is the brand new, and entirely reimagined QSM 3 brings the enterprise level features into the Workgroup and SMB storage. QSM 3 supports comprehensive enterprise-level storage features including SSD caching, thin provisioning, auto-tiering, data deduplication and data compression that transforms the efficiency of every resource to bring you commercial value.
  • Innovative hybrid hardware architecture
  • Standard LFF(Large Form Factor) bays plus exclusive SFF (Small Form Factor) bays
  • Brand new enterprise level QSM 3 with all new interface and enterprise features
  • Unified storage architecture with full virtualization support
  • Completed backup plan for unexpected hardware failure, natural disasters, or simple accidental deletion.
  • Optimized storage features : Auto Tiering, Thin Provision, Data deduplication and SSD cache.
  • Security enhancement : Pool and disk encryption, WORM technology, Antivirus, VPN service and IP connection filter

Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.

Specificaties

Opslagmedia

Capaciteit opslag-drive*
2 GB
Opslag schijf-interface*
SATA III
Ondersteunde opslagstationinterfaces
SATA III
Opslag schijfgrootte
2.5/3.5"
Opslagschijf afmetingen ondersteund
2.5,3.5"
Maximaal ondersteunde opslagcapaciteit
64 TB
RAID support*
Ja
Soorten RAID
0, 1, 5, 6, 10, 60, JBOD
Hot-swap drive bays
Ja
Opslagdrives geïnstalleerd*
Ja
Totale geïnstalleerde opslagcapaciteit*
8 TB
Aantal storage drives geïnstalleerd*
4
Aantal storage drives ondersteund*
4
Geïnstalleerde opslag-drive*
HDD
Ondersteunde types opslag-drives*
HDD & SSD

Processor

Processorfabrikant*
Intel
Processorfamilie*
Intel® Celeron®
Processormodel*
G3930
Frequentie van processor*
2,9 GHz
Aantal processorkernen
2
Bus type
DMI3
CPU configuratie (max)
1
Conflictvrije processor
Ja

Geheugen

Intern geheugentype
DDR4
Ondersteund maximum RAM
64 GB
Geheugenslots
4
Intern geheugen*
8 GB
Geheugen form factor
UDIMM
Flash memory
8000 MB

Netwerk

Ethernet LAN*
Ja
Ethernet LAN, data-overdrachtsnelheden
1000 Mbit/s
Wifi
Nee
Jumbo Frames ondersteuning
Ja
iSCSI support
Ja
Wake-on-LAN
Ja
Verbindingsaggregatie
Ja
Dynamic DNS (DDNS)
Ja

Poorten & interfaces

USB-poort*
Ja
Aantal USB 2.0-poorten
1
Aantal poorten USB 3.2 Gen 1 (3.1 Gen 1) Type A
4
Aantal HDMI-poorten
1
Aantal Ethernet LAN (RJ-45)-poorten*
4

Design

Type behuizing*
Rack (1U)
Type koeling*
Actief
Kleur van het product
Zwart, Metallic
Land van herkomst
Taiwan

Prestatie

Soort*
NAS
Apparaatklasse*
Kleine & middelgrote bedrijven
Backup-functie*
Ja
Back-up-eigenschappen
Cloud, iSCSI LUN

Prestatie

Ondersteunt meerdere talen
Ja
Web-gebaseerd management
Ja
Ondersteunde beveiligingsalgoritmen
256-bit AES, FIPS 140-2
Access Control List (ACL)
Ja
Ingebouwde ftp-server
Ja
Netwerktijdprotocol (NTP) klant
Ja
Systeemlog
Ja
Hot-spare
Ja
S.M.A.R.T. support
Ja

Software

Inclusief besturingssysteem*
QNAP Storage Manager
Operating systeem versie
3
Ondersteunt Windows
Ja
Ondersteunt Linux
Ja
Ondersteunt Mac-besturingssysteem
Ja

Energie

Vermogenstoevoer locatie
Ingebouwd
Capaciteit voedingsunit (PSU)
250 W
Aantal voedingen
2
Redundante voeding
Ja
AC-ingangsspanning
100 - 240 V
AC-ingangsfrequentie
50 - 60 Hz

Gewicht en omvang

Breedte*
438 mm
Diepte*
510 mm
Hoogte*
44 mm
Gewicht
15,5 kg

Processor speciale functies

Ingebouwde opties beschikbaar
Nee
Enhanced Intel SpeedStep Technology
Ja
Execute Disable Bit
Ja
Idle States
Ja
Intel® 64
Ja
Intel® Clear Video-technologie
Ja
Intel® Enhanced Halt State
Ja
Versie Intel® Identity Protection Technology
1,00
Versie Intel® Secure Key Technology
1,00
Intel® Stable Image Platform Program (SIPP)
Nee
Versie Intel® Stable Image Platform Program (SIPP)
0,00
Intel® Trusted Execution Technology
Nee
Intel® TSX-NI
Nee
Versie Intel® TSX-NI
0,00
Intel® Virtualization Technology (VT-x)
Ja
Intel® Virtualization Technology for Directed I/O (VT-d)
Ja
Intel® VT-x with Extended Page Tables (EPT)
Ja

Eisen aan de omgeving

Bedrijfstemperatuur (T-T)
0 - 40 °C
Relatieve vochtigheid in bedrijf (V-V)
20 - 80 procent
Temperatuur bij opslag
-10 - 50 °C
Luchtvochtigheid bij opslag
10 - 90 procent

Certificaten

Certificering
CE, FCC, BSMI, VCCI, RCM, KCC, SASO, EAC

Logistieke gegevens

Code geharmoniseerd systeem (HS)
84714100
