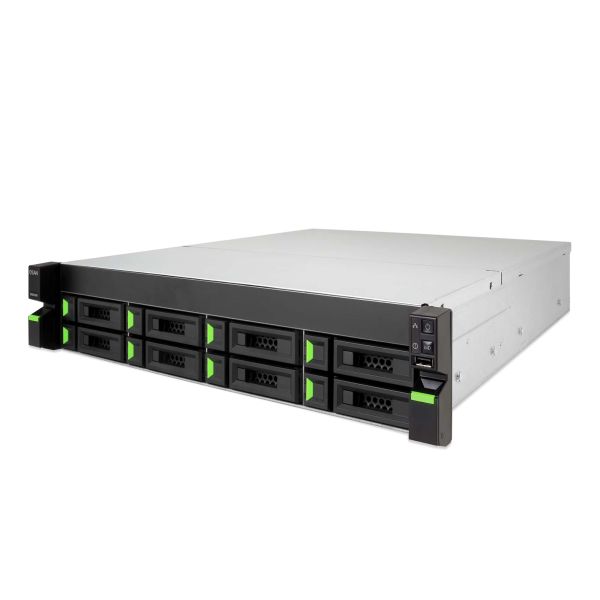

Qsan Technology XCubeNAS XN7008RE, NAS, Rack (2U), Intel® Core™ i3, i3-3220, Zwart, Metallic

Niet op voorraad

Fabrikant Origin Storage
MPN XN7008RE
EAN 5056006169499

Qsan Technology XCubeNAS XN7008RE NAS Rack (2U) Ethernet LAN Zwart, Metallic i3-3220

The XCubeNAS series is a next generation, high performance, efficiency and security NAS system which is designed for SMB and enterprise applications. The XCubeNAS operating system is the brand new, and entirely reimagined QSM 3 brings the enterprise level features into the Workgroup and SMB storage. QSM 3 supports comprehensive enterprise-level storage features including SSD caching, thin provisioning, auto-tiering, data deduplication and data compression that transforms the efficiency of every resource to bring you commercial value.
  • Innovative hybrid hardware architecture
  • Standard LFF(Large Form Factor) bays plus exclusive SFF (Small Form Factor) bays
  • Brand new enterprise level QSM 3 with all new interface and enterprise features
  • Unified storage architecture with full virtualization support
  • Completed backup plan for unexpected hardware failure, natural disasters, or simple accidental deletion.
  • Optimized storage features : Auto Tiering, Thin Provision, Data deduplication and SSD cache.
  • Security enhancement : Pool and disk encryption, WORM technology, Antivirus, VPN service and IP connection filter

Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.

Specificaties

Opslagmedia

Opslag schijf-interface*
SATA III
Ondersteunde opslagstationinterfaces
SATA, SATA II, SATA III
Opslag schijfgrootte
2.5/3.5"
Opslagschijf afmetingen ondersteund
2.5,3.5"
Maximaal ondersteunde opslagcapaciteit
128 TB
RAID support*
Ja
Soorten RAID
0, 1, 5, 6, 10, 60, JBOD
Hot-swap drive bays
Ja
Opslagdrives geïnstalleerd*
Nee
Aantal storage drives ondersteund*
8
Geïnstalleerde opslag-drive*
Nee
Ondersteunde types opslag-drives*
HDD & SSD

Processor

Processorfabrikant*
Intel
Processorfamilie*
Intel® Core™ i3
Processormodel*
i3-3220
Frequentie van processor*
3,9 GHz
Aantal processorkernen
2
Bus type
DMI
CPU configuratie (max)
1
CPU multiplier (bus/core ratio)
33
Conflictvrije processor
Ja

Geheugen

Intern geheugentype
DDR4
Ondersteund maximum RAM
64 GB
Geheugenslots
4
Intern geheugen*
8 GB
Geheugen form factor
UDIMM
Flash memory
8000 MB

Netwerk

Ethernet LAN*
Ja
Ethernet LAN, data-overdrachtsnelheden
10,100,1000 Mbit/s
Ondersteunde datasnelheid Ethernet LAN (max)
10000 Mbit/s
Wake-on-LAN
Ja

Poorten & interfaces

USB-poort*
Ja
Aantal USB 2.0-poorten
1
Aantal poorten USB 3.2 Gen 1 (3.1 Gen 1) Type A
4
Aantal HDMI-poorten
1
Aantal Ethernet LAN (RJ-45)-poorten*
4
PCI Express x4 (Gen 3.x) slots
1
PCI Express x8 (Gen 3.x) slots
1

Design

Type behuizing*
Rack (2U)
Type koeling*
Actief
Kleur van het product
Zwart, Metallic
Aantal ventilatoren
3 ventilator(en)
Ventilator diameter
6 cm
Ventilator 2 diameter
6 cm
LED-indicatoren
Access, Netwerk, Stroom, Status, Systeem
Land van herkomst
Taiwan

Prestatie

Soort*
NAS
Apparaatklasse*
Kleine & middelgrote bedrijven

Prestatie

Backup-functie*
Ja
Waarschuwingssignaal
Ja
Snap shot
Ja
Reset button
Ja
Aan/uitschakelaar
Ja
Hot-spare
Ja
Schijf-scan
Ja

Software

Inclusief besturingssysteem*
QNAP Storage Manager
Operating systeem versie
3

Energie

Vermogenstoevoer locatie
Ingebouwd
Capaciteit voedingsunit (PSU)
250 W
Aantal voedingen
2
Redundante voeding
Ja
Stroomverbruik (typisch)
231 W
Vermogensverbruik (max)
231 W
Elektriciteitsverbruik (HDD-stand-by)
111 W
AC-ingangsspanning
100 - 240 V
AC-ingangsfrequentie
50 - 60 Hz

Gewicht en omvang

Breedte*
438 mm
Diepte*
510 mm
Hoogte*
88,5 mm
Gewicht
12,7 kg

Inhoud van de verpakking

Rekbevestigingspakket
Ja

Processor speciale functies

Ingebouwde opties beschikbaar
Ja
Enhanced Intel SpeedStep Technology
Ja
Execute Disable Bit
Ja
Idle States
Ja
Intel® 64
Ja
Intel® Enhanced Halt State
Ja
Intel® Fast Memory Access
Ja
Intel® FDI Technology
Ja
Intel® Flex Memory Access
Ja
Versie Intel® Identity Protection Technology
1,00
Versie Intel® Secure Key Technology
0,00
Intel® Trusted Execution Technology
Nee
Intel® Virtualization Technology (VT-x)
Ja
Intel® Virtualization Technology for Directed I/O (VT-d)
Nee
Intel® VT-x with Extended Page Tables (EPT)
Ja

Eisen aan de omgeving

Bedrijfstemperatuur (T-T)
0 - 40 °C
Relatieve vochtigheid in bedrijf (V-V)
20 - 80 procent
Temperatuur bij opslag
-10 - 50 °C
Luchtvochtigheid bij opslag
10 - 90 procent

Certificaten

Certificering
CE, FCC, BSMI, VCCI, RCM, SASO, EAC

Logistieke gegevens

Code geharmoniseerd systeem (HS)
84714100
