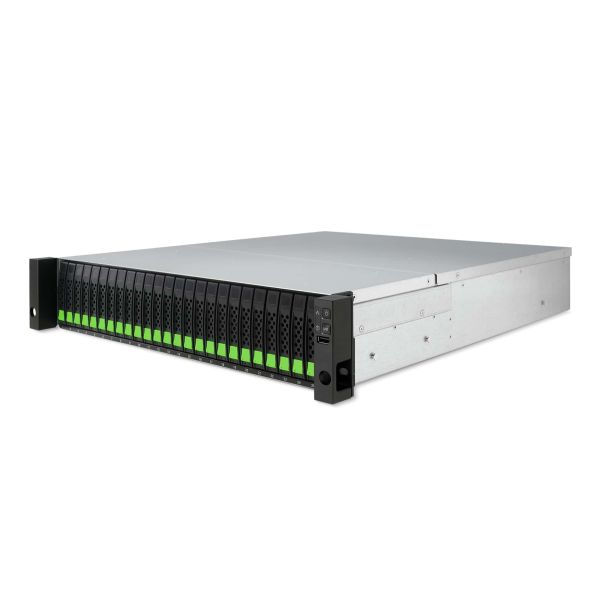

Qsan Technology XCubeSAN XS1226D, SAN, Rack (2U), Intel® Pentium®, D1508, Zwart, Metallic

Niet op voorraad

Fabrikant Origin Storage
MPN XS1226D
EAN 5056006155539

Qsan Technology XCubeSAN XS1226D SAN Rack (2U) Ethernet LAN Zwart, Metallic D1508

QSAN XS1200 Series is the most cost-effective SAN storage system for the SMB market. It is a perfect solution to the applications of surveillance, backup and for disaster recovery in SMB which can reduce capital expenditure and achieve maximum efficiency at the same time.
  • High Performance SAN storage system with Dual-Active (Active/Active) controller
  • High availability design with no single point of failure
  • 5th generation Intel® processor, up to 128GB RAM per controller
  • Latest 12Gb SAS 3.0 technology
  • Built-in 10GbE iSCSI
  • Scale up solution supports over 8.7PB of raw storage capacity
  • QSAN SANOS (SAN Operating System) 4.0
  • Advanced Storage Management
  • - Thin Provisioning
  • - SSD Cache (read and write cache)
  • - Auto Tiering
  • - Snapshot
  • Flexible I/O host cards for iSCSI SAN or Fibre Channel SAN
  • Local clone and remote replication for disaster recovery
  • Virtualization support for VMware VAAI, Microsoft Hyper-V ODX, and Citrix
  • Cache-to-Flash memory protection technology

Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.

Specificaties

Opslagmedia

Opslag schijf-interface*
SATA III, Serial Attached SCSI (SAS), Near Line SAS (NL-SAS)
Opslag schijfgrootte
2.5/3.5"
Maximaal ondersteunde opslagcapaciteit
400 TB
RAID support*
Ja
Soorten RAID
0, 1, 5, 6, 10, 60, JBOD
Hot-swap drive bays
Ja
Opslagdrives geïnstalleerd*
Nee
Aantal storage drives ondersteund*
26
Geïnstalleerde opslag-drive*
Nee
Ondersteunde types opslag-drives*
SSD

Processor

Processorfabrikant*
Intel
Processorfamilie*
Intel® Pentium®
Processormodel*
D1508
Frequentie van processor*
2,9 GHz
Aantal processorkernen
2
CPU configuratie (max)
1
Conflictvrije processor
Ja

Geheugen

Intern geheugentype
DDR4
Ondersteund maximum RAM
32 GB
Geheugenslots
2
Intern geheugen*
4 GB
Geheugen form factor
RDIMM

Netwerk

Ethernet LAN*
Ja

Poorten & interfaces

USB-poort*
Ja
Aantal USB 2.0-poorten
1
Aantal Ethernet LAN (RJ-45)-poorten*
3

Design

Type behuizing*
Rack (2U)
Type koeling*
Actief
Kleur van het product
Zwart, Metallic
Land van herkomst
Taiwan

Prestatie

Soort*
SAN
Apparaatklasse*
Kleine & middelgrote bedrijven
Backup-functie*
Ja

Software

Inclusief besturingssysteem*
QNAP Storage Manager
Operating systeem versie
3

Energie

Vermogenstoevoer locatie
Ingebouwd
Capaciteit voedingsunit (PSU)
850 W
Aantal voedingen
2
Redundante voeding
Ja
AC-ingangsspanning
100 - 240 V
AC-ingangsfrequentie
50 - 60 Hz

Gewicht en omvang

Breedte*
438 mm
Diepte*
491 mm
Hoogte*
88 mm
Gewicht
16,3 kg

Processor speciale functies

Ingebouwde opties beschikbaar
Ja
Enhanced Intel SpeedStep Technology
Ja
Execute Disable Bit
Ja
Idle States
Ja
Intel® 64
Ja
Intel® Enhanced Halt State
Ja
Versie Intel® Identity Protection Technology
1,00
Versie Intel® Secure Key Technology
1,00
Intel® Trusted Execution Technology
Ja
Intel® TSX-NI
Ja
Versie Intel® TSX-NI
1,00
Intel® Virtualization Technology (VT-x)
Ja
Intel® Virtualization Technology for Directed I/O (VT-d)
Ja
Intel® VT-x with Extended Page Tables (EPT)
Ja

Eisen aan de omgeving

Bedrijfstemperatuur (T-T)
0 - 40 °C
Relatieve vochtigheid in bedrijf (V-V)
20 - 80 procent
Temperatuur bij opslag
-10 - 50 °C
Luchtvochtigheid bij opslag
10 - 90 procent

Certificaten

Certificering
CE, FCC, BSMI, VCCI, KCC

Logistieke gegevens

Code geharmoniseerd systeem (HS)
84714100
