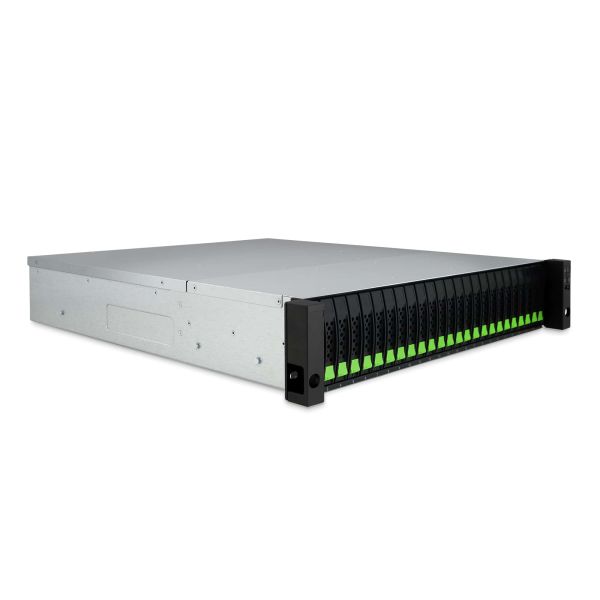

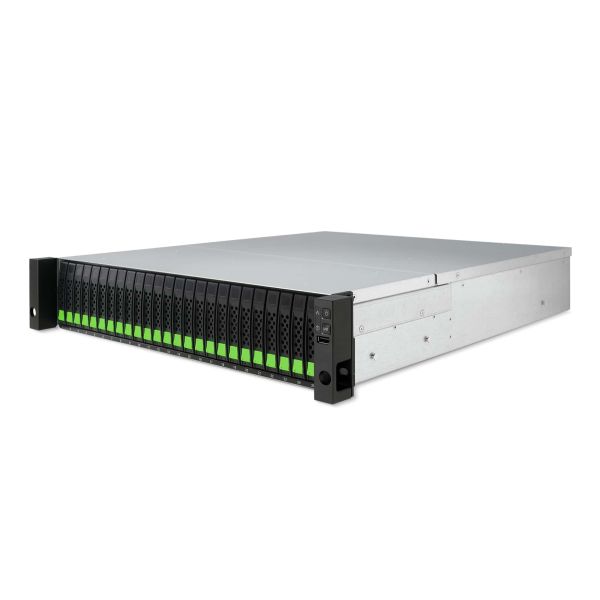

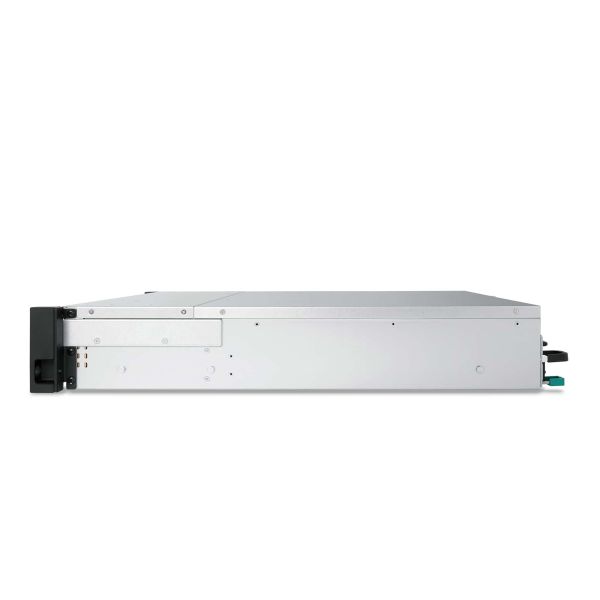

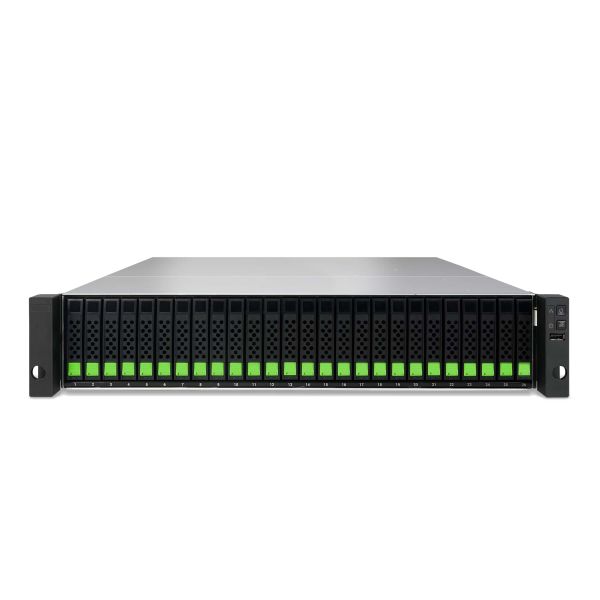

Qsan Technology XCubeSAN XS3226S, SAN, Rack (2U), Intel® Xeon®, D1517, Zwart, Metallic

Niet op voorraad

Fabrikant Origin Storage
MPN XS3226S
EAN 5056006155461

Qsan Technology XCubeSAN XS3226S SAN Rack (2U) Ethernet LAN Zwart, Metallic D1517

QSAN XS3200 Series is the high performance, simple, secure, scalable and affordable SAN storage systems for enterprise and SMB. It is an ideal solution to the applications of virtualization integration, media, and entertainment, or large scale surveillance; and also backup and disaster recovery in the enterprise, SMB or ROBO (Remote Office/Branch Office) deployments.
  • High Performance SAN storage system with Dual-Active (Active/Active) controller
  • High availability design with no single point of failure
  • 5th generation Intel® processor, up to 128GB RAM per controller
  • Latest 12Gb SAS 3.0 technology
  • Built-in 10GbE iSCSI
  • Scale up solution supports over 8.7PB of raw storage capacity
  • QSAN SANOS (SAN Operating System) 4.0
  • Advanced Storage Management
  • - Thin Provisioning
  • - SSD Cache (read and write cache)
  • - Auto Tiering
  • - Snapshot
  • Flexible I/O host cards for iSCSI SAN or Fibre Channel SAN
  • Local clone and remote replication for disaster recovery
  • Virtualization support for VMware VAAI, Microsoft Hyper-V ODX, and Citrix
  • Cache-to-Flash memory protection technology

Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.

Specificaties

Opslagmedia

Opslag schijf-interface*
SATA III, Serial Attached SCSI (SAS), Near Line SAS (NL-SAS)
Opslag schijfgrootte
2.5/3.5"
Maximaal ondersteunde opslagcapaciteit
400 TB
RAID support*
Ja
Soorten RAID
0, 1, 5, 6, 10, 60, JBOD
Hot-swap drive bays
Ja
Opslagdrives geïnstalleerd*
Nee
Aantal storage drives ondersteund*
26
Geïnstalleerde opslag-drive*
Nee
Ondersteunde types opslag-drives*
SSD

Processor

Processorfabrikant*
Intel
Processorfamilie*
Intel® Xeon®
Processormodel*
D1517
Frequentie van processor*
2,2 GHz
Aantal processorkernen
4
CPU configuratie (max)
1
Conflictvrije processor
Ja

Geheugen

Intern geheugentype
DDR4
Ondersteund maximum RAM
128 GB
Geheugenslots
4
Intern geheugen*
4 GB
Geheugen form factor
RDIMM

Netwerk

Ethernet LAN*
Ja

Poorten & interfaces

USB-poort*
Ja
Aantal USB 2.0-poorten
1
Aantal Ethernet LAN (RJ-45)-poorten*
3

Design

Type behuizing*
Rack (2U)
Type koeling*
Actief
Kleur van het product
Zwart, Metallic
Land van herkomst
Taiwan

Prestatie

Soort*
SAN
Apparaatklasse*
Kleine & middelgrote bedrijven
Backup-functie*
Ja

Software

Inclusief besturingssysteem*
QNAP Storage Manager
Operating systeem versie
3

Energie

Vermogenstoevoer locatie
Ingebouwd
Capaciteit voedingsunit (PSU)
850 W
Aantal voedingen
2
Redundante voeding
Ja
AC-ingangsspanning
100 - 240 V
AC-ingangsfrequentie
50 - 60 Hz

Gewicht en omvang

Breedte*
438 mm
Diepte*
491 mm
Hoogte*
88 mm
Gewicht
16,3 kg

Processor speciale functies

Ingebouwde opties beschikbaar
Ja
Enhanced Intel SpeedStep Technology
Ja
Execute Disable Bit
Ja
Idle States
Ja
Intel® 64
Ja
Intel® Enhanced Halt State
Ja
Versie Intel® Identity Protection Technology
1,00
Versie Intel® Secure Key Technology
1,00
Intel® Trusted Execution Technology
Ja
Intel® TSX-NI
Ja
Versie Intel® TSX-NI
1,00
Intel® Virtualization Technology (VT-x)
Ja
Intel® Virtualization Technology for Directed I/O (VT-d)
Ja
Intel® VT-x with Extended Page Tables (EPT)
Ja

Eisen aan de omgeving

Bedrijfstemperatuur (T-T)
0 - 40 °C
Relatieve vochtigheid in bedrijf (V-V)
20 - 80 procent
Temperatuur bij opslag
-10 - 50 °C
Luchtvochtigheid bij opslag
10 - 90 procent

Certificaten

Certificering
CE, FCC, BSMI, VCCI, KCC

Logistieke gegevens

Code geharmoniseerd systeem (HS)
84714100
