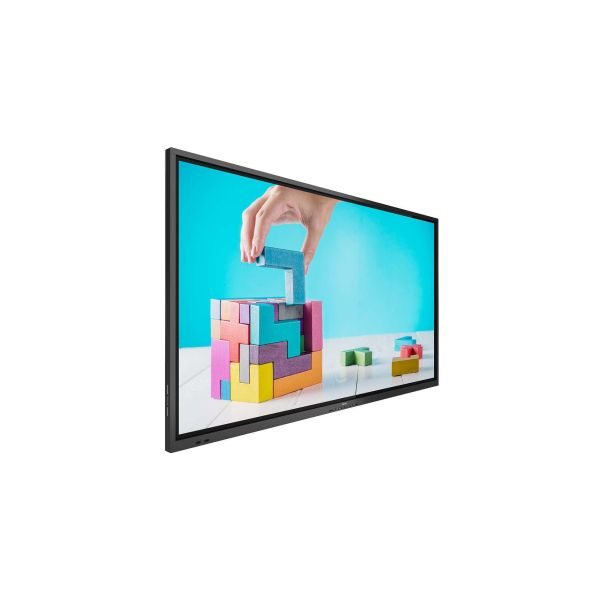

Philips Signage Solutions E-Line, Digitale signage flatscreen, 165,1 cm (65"), ADS, 3840 x 2160 Pixels

Ruim op voorraad

Fabrikant Philips
MPN 65BDL3052E/00
EAN 8712581785284

Philips Signage Solutions E-Line Digitale signage flatscreen 165,1 cm (65") ADS 350 cd/m² 4K Ultra HD Zwart Type processor Android 8.0

The Philips E-Line touch display maximises engagement and inspires collaboration with up to 20 touchpoints. Powered by Android and featuring a toughened anti-glare glass, it's made to withstand heavy daily usage in the classroom.

Operate, monitor and maintain with CMND and Control
Run your display network over a local (LAN) connection. CMND and Control allows you to perform vital functions like controlling inputs and monitoring display status. Whether you're in charge of one screen or 100.

OPS slot allows for PC embedding without cabling
Integrate a full-power PC or Android-powered CRD50 module directly into your Philips Professional Display. The OPS slot contains all the connections you need to run your slot-in solution, including a power supply.

Android: Run your own app or choose your favourite app to run
With Android OS integrated into the display, you can work with the most developed OS on the planet and save your own app directly into the display. Or, choose from the large library of Android apps and play content from there. With the built-in scheduler, you can daypart your apps and content based on your customer and time of day and with the auto-orientation feature, showing content in portrait or landscape is as simple as turning the display.

Multi-touch technology capable of 20 touchpoints
Create a memorable interactive experience with up to 20 touchpoints at the same time. Perfect for collaborative and competitive applications, this display connects your audience with any content - making it ideal for education, public venues, corporate, hospitality and retail settings. The touch panel is HID compliant, providing true plug-and-play operation.

Whiteboard mode built in
Inspire agile collaboration with whiteboard mode. Simply activate this feature to turn your display into a blank canvas that can be drawn on by multiple users by hand or with dedicated display markers. Everything on the screen can then be captured for easy printing or file sharing.

Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.

Specificaties

Beeldscherm

Soort paneel
ADS
Beeldschermdiagonaal*
165,1 cm (65")
Display technologie*
ADS
Resolutie*
3840 x 2160 Pixels
Helderheid*
350 cd/m²
HD type*
4K Ultra HD
Touchscreen*
Nee
Hoeveelheid simultane aanraakpunten
20
Multi-touch
Ja
Oorspronkelijke beeldverhouding
16:9
Responstijd
8 ms
Typische contrastverhouding
1200:1
Kijkhoek, horizontaal
178°
Kijkhoek, verticaal
178°
Beeldscherm, aantal kleuren
1,07 miljard kleuren
Pixel pitch
0,372 x 0,372 mm
Schermdiameter in centimeters
163,9 cm
Systeemeigen vernieuwingsfrequentie
60 Hz

Poorten & interfaces

Aantal HDMI-poorten*
3
HDMI versie
2.0
Aantal HDMI-invoerpoorten
3
DVI-poort*
Ja
DVI-D poorten
1
VGA (D-Sub) invoer ports
1
USB-poort*
Ja
Aantal USB-aansluitingen
8
USB-versie
2.0
USB-connectortype
USB Type-A, USB Type-B, USB Type-C
Ethernet LAN*
Ja
Aantal Ethernet LAN (RJ-45)-poorten
1
Wifi*
Nee
RS-232C
Ja
Geïntegreerde geheugenkaartlezer
Ja
Compatibele geheugenkaarten
MicroSD (TransFlash)

Audio

Ingebouwde luidsprekers*
Ja
Aantal ingebouwde luidsprekers
2
Gemiddeld vermogen
30 W

Design

Productontwerp*
Digitale signage flatscreen
Ondersteuning voor plaatsing*
Binnen
Model
Horizontaal/Verticaal
Kleur van het product*
Zwart
VESA-montage*
Ja
Paneelmontage-interface
100 x 100,400 x 400 mm
Antireflectiescherm
Ja

Prestatie

Bedoeld voor*
Universeel
On Screen Display (OSD)
Ja
Aantal On Screen Display-talen
18
On Screen Display (OSD)-talen
Arabisch, Vereenvoudigd Chinees, Traditioneel Chinees, Deens, Duits, Nederlands, Engels, Spaans, Frans, Italiaans, Japans, Noors, Pools, Portugees, Russisch, Zweeds, Turks
Open Pluggable Specification (OPS)
Ja
Mean time between failures (MTBF)
50000 uur

Energie

Stroomverbruik (typisch)*
155 W
Vermogensverbruik (max)
376 W
Stroomverbruik (in standby)*
0,5 W
AC-ingangsspanning
100 - 240 V
AC-ingangsfrequentie
50 - 60 Hz

Computersysteem

Computersysteem*
Nee
Type processor*
Ja
Processorfabrikant
ARM
Processor architectuur
ARM Cortex-A53+Cortex-A73
Intern geheugen
3 GB
On-board graphics adapter model
ARM Mali-G51
Interne opslagcapaciteit
16 GB
Inclusief besturingssysteem
Android 8.0
Ondersteunde videoformaten
H.263, H.264, H.265, MPEG1, MPEG2, MPEG4, VP9
Ondersteund audioformaat
AAC, AAC HE
Ondersteund beeldformaat
BMP, JPEG, PNG

Gewicht en omvang

Breedte
1494,3 mm
Diepte
99,5 mm
Hoogte
883,2 mm
Gewicht
43,1 kg

Verpakking

Gewicht verpakking
52,7 kg

Inhoud van de verpakking

Afstandsbediening inbegrepen
Ja
Batterijen inbegrepen
Ja
Meegeleverde kabels
AC, DVI, HDMI, IR-sensor, RS-232, USB Type-A naar USB Type-B

Eisen aan de omgeving

Bedrijfstemperatuur (T-T)
0 - 40 °C
Relatieve vochtigheid in bedrijf (V-V)
20 - 80 procent
Temperatuur bij opslag
-20 - 60 °C
Luchtvochtigheid bij opslag
5 - 95 procent
Hoogte, in bedrijf
0 - 3000 m

Certificaten

Certificering
FCC, Class A CB EAC EMF ETL

Kenmerken

Ophangsysteem voor aan de muur
Ja

Technische details

Bediening via toetsenbord:
Lockable
Doorlusbaar signaal:
RS232, IR Loop through
Randbreedte (L/T, R/B)
17.8 mm(T/R/L)/31.7 mm(B)
Gewicht van het product
43,2 kg (95.1 lbs)
Diepte van het apparaat (inch)
9,96 cm (3.92")
Hoogte van het apparaat (inch)
88,3 cm (34.8")
Breedte van het apparaat (inch)
149,4 cm (58.8")
Naleving van duurzaamheid
Ja
Duurzaamheidscertificaten
CE, RoHS
Garantieperiode
5 jaar

Overige specificaties

Snelstartgids
Ja
Bestuurbaar vanaf het netwerk
RS232/RJ-45
Glasbescherming
Ja
Batterijtype afstandsbediening
AAA
