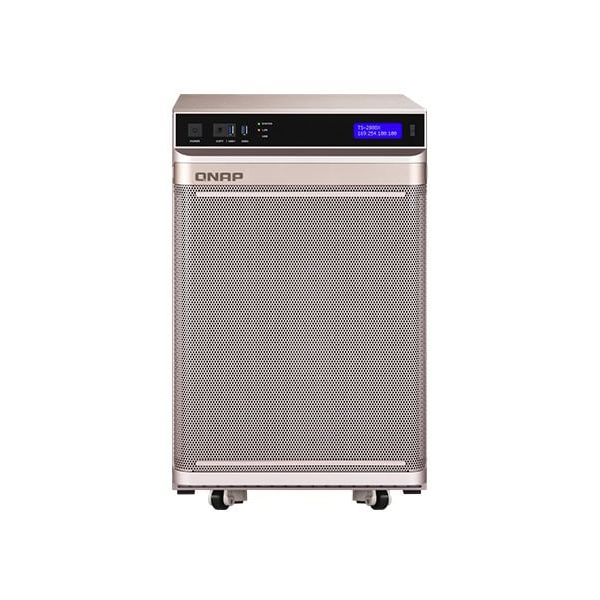

QNAP TS-2888X-W2133-64G, NAS, Tower, Intel® Xeon®, W-2133, Zilver

Niet op voorraad

Fabrikant QNAP
MPN TS-2888X-W2133-64G
EAN 4713213514979

QNAP TS-2888X-W2133-64G data-opslag-server NAS Tower Ethernet LAN Zilver W-2133

Built for AI. Ready for Intelligence

5 Reasons to Choose the TS-2888X

Affordable, Cost-effective

The TS-2888X is powerful yet affordable, making AI accessible to your business blueprint.

Secure & Private

Public cloud training is not suitable for confidential or sensitive data. Keep full control over all your data with the TS-2888X!

Ready-to-use AI Environment

QNAP’s exclusive QuAI computing platform simplifies implementing AI workflows.

Huge Storage Potential

Data is the key to AI, and the TS-2888X provides the potential for huge capacities to remove the storage bottleneck from AI development.

Comprehensive Backup Solution

Flexible backup tools and snapshot protection assure your data while also allowing efficient disaster recovery.

The Core. The Power. The Lead

Up to 18 cores with 36 threads and up to 4.5 GHz with Intel® Turbo Boost Technology 2.0, combined with up to 512 GB DDR4 ECC RDIMM 2666 MHz memory to deliver rapid workload loading and processing.

All-in-One AI Solution: The Combination of System and Software

The TS-2888X AI-Ready NAS is designed to optimize AI workflows, providing a hands-on, ready-to-use software environment to reduce time and complexity for implementation and management. Besides the exclusive QuAI – an AI developer package to quickly build, train and optimize AI models running on the NAS – QNAP's Container Station enables a range of open-source tools and frameworks for the AI workflows readily available to you. Being an all-in-one AI solution, the TS-2888X greatly simplifies the implementation of AI alongside providing greater cost-efficiency.

High-Performance Computing with Hybrid-Architecture Storage

The TS-2888X utilizes a hybrid architecture with high-capacity HDDs and high-performance SSDs to meet your simultaneous needs for scale and performance. It supports up to 4 graphics cards to deliver tremendous computing power for accelerating AI machine learning. By integrating ready-to-use AI software with GPU-powered storage, the TS-2888X provides low latency, performs high-speed data transfer, and effectively reduces performance bottlenecks.
  • Een NAS op instapniveau waarmee u bestanden en gegevens kan beschermen tegen onbedoelde verwijdering en malware-aanvallen
  • Sla persoonlijke foto's of familiefoto's, muziek en video's centraal op, bekijk, orden en deel eenvoudig multimediabestanden en geniet van videostreaming voor beter amusement
  • Dankzij H.264-hardwaredecodering en transcodering in realtime profiteert u van een vlekkeloze audiovisuele ervaring
  • Met myQNAPcloud kunt u eenvoudig bestanden op de NAS openen, beheren en delen via internet
  • Gebruik HBS om reservekopieën van bestanden op de NAS te maken of om deze bestanden te synchroniseren met externe opslagruimte of opslagruimte in de cloud, zodat u beschikt over een betrouwbare oplossing voor het maken en herstellen van reservekopieën van gegevens
  • Fungeert als uw veilige particuliere cloud en ondersteunt bescherming door middel van gebruikersaccounts, blokkering van IP-adressen, verificatie in twee stappen, toegang met versleuteling en meer

Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.

Specificaties

Opslagmedia

Ondersteunde opslagstationinterfaces
SATA III
Opslagschijf afmetingen ondersteund
2.5,3.5"
Opslagdrives geïnstalleerd*
Nee
Aantal storage drives ondersteund*
28
Geïnstalleerde opslag-drive*
Nee
Ondersteunde types opslag-drives*
HDD & SSD

Processor

Processorfabrikant*
Intel
Processorfamilie*
Intel® Xeon®
Processormodel*
W-2133
Frequentie van processor*
3,6 GHz
Maximale turbofrequentie van processor
3,9 GHz
Aantal processorkernen
6
Processor aantal threads
12
Processor cache
8,25 MB
Bus type
QPI
CPU configuratie (max)
1
ECC ondersteund door processor
Ja
PCI Express configuraties
1x16, 1x4, 1x8
PCI Express slots versie
3.0
Physical Address Extension (PAE)
46 Bit
Processorcode
SR3LL
Codenaam processor
Skylake
Processor lithografie
14 nm
Processor operating modes
64-bit
Verpakkingsgrootte processor
45 x 52.5 mm
Processor socket
LGA 2066 (Socket R4)
Schaalbaarheid
1S
Stepping
U0
Tcase
65 °C
Thermal Design Power (TDP)
140 W
Maximaal intern geheugen ondersteund door processor
512 GB
Geheugenbandbreedte ondersteund door de processor ( max)
85,3 GB/s
Conflictvrije processor
Ja

Geheugen

Intern geheugentype
DDR4
Kloksnelheid geheugen
2666 MHz
Ondersteund maximum RAM
512 GB
Geheugenslots
8 x DDR4-2666 ECC RDIMM
Intern geheugen*
64 GB

Netwerk

Ethernet LAN*
Ja
Ethernet LAN, data-overdrachtsnelheden
10,100,1000,10000 Mbit/s
Ondersteunde datasnelheid Ethernet LAN (max)
10000 Mbit/s
Koperen ethernetbekabelingstechnologie
10BASE-T, 10GBASE-T, 100BASE-TX, 1000BASE-T

Poorten & interfaces

USB-poort*
Ja
Aantal USB 2.0-poorten
4
Aantal poorten USB 3.2 Gen 1 (3.1 Gen 1) Type A
6
Aantal Ethernet LAN (RJ-45)-poorten*
6

Design

Type behuizing*
Tower
Type koeling*
Actief
Kleur van het product
Zilver

Design

LED-indicatoren
Ja
Ingebouwd display
Ja
Type beeldscherm
LCM

Prestatie

Soort*
NAS
Apparaatklasse*
Kleine & middelgrote bedrijven
Backup-functie*
Ja
Back-up-eigenschappen
Cloud, iSCSI LUN
Ingebouwde optical-drive
Nee
Geïntegreerde geheugenkaartlezer
Nee
Snap shot
Ja
Aan/uitschakelaar
Ja
Backup-knop
Ja
USB-kopieerfunctie
Ja

Software

Inclusief besturingssysteem*
QNAP Turbo System

Energie

Vermogenstoevoer locatie
Ingebouwd
Capaciteit voedingsunit (PSU)
2000 W
Aantal voedingen
1
Redundante voeding
Nee

Processor speciale functies

Ingebouwde opties beschikbaar
Nee
Enhanced Intel SpeedStep Technology
Ja
Execute Disable Bit
Ja
Idle States
Ja
Intel® 64
Ja
Intel® Demand Based Switching
Ja
Intel® Enhanced Halt State
Ja
Intel® Flex Memory Access
Nee
Versie Intel® Identity Protection Technology
1,00
Versie Intel® Secure Key Technology
1,00
Intel® Trusted Execution Technology
Ja
Intel® TSX-NI
Ja
Versie Intel® TSX-NI
1,00
Intel® Virtualization Technology (VT-x)
Ja
Intel® Virtualization Technology for Directed I/O (VT-d)
Ja
Intel® VT-x with Extended Page Tables (EPT)
Ja
Intel® AES New Instructions (Intel® AES-NI)
Ja
Intel® Hyper Threading Technology (Intel® HT Technology)
Ja
Intel® Identity Protection Technology (Intel® IPT)
Ja
Intel® OS Guard
Ja
Intel® Secure Key
Ja
Intel® Turbo Boost Technology
2.0
Maximaal aantal PCI Express-lijnen
48
Physical Address Extension (PAE)
Ja
Thermal Monitoring Technologies
Ja
Geheugenkanalen ondersteund door processor
Quad
Geheugentypen ondersteund door processor
DDR4-SDRAM

Logistieke gegevens

Code geharmoniseerd systeem (HS)
84714100

Overige specificaties

ARK ID processor
125040
