Specificaties
Ontwerp
Type behuizing | Rack (4U) |
---|---|
Type koeling | Actief |
Aantal ventilatoren | 4 ventilator(en) |
Ventilator diameter | 9,2 cm |
LED-indicatoren | HDD, LAN, Status |
Bevestigingsmogelijkheid voor kabelslot | Ja |
Kabelslot sleuf type | Kensington |
Kleur van het product | Zwart |
Opslagmedia
Opslagdrives geïnstalleerd | Nee |
---|---|
Geïnstalleerde opslag-drive | Nee |
Ondersteunde types opslag-drives | HDD & SSD |
Aantal storage drives ondersteund | 24 |
RAID support | Ja |
Soorten RAID | 0, 1, 5, 6, 10, 50, 60, JBOD |
Hot-swap drive bays | Ja |
Ondersteunde bestandsystemen | FAT32, NTFS, exFAT, ext3, ext4 |
Online RAID-migratie | Ja |
Online RAID-uitbreiding | Ja |
Scannen op beschadigd blokken | Ja |
Ondersteunde opslagstationinterfaces | SATA III |
Opslagschijf afmetingen ondersteund | 2.5,3.5" |
Schijfroaming | Ja |
Herbouwen RAID | Ja |
Technische details
Code geharmoniseerd systeem (HS) | 84714100 |
---|
Processor
Processorfamilie | Intel® Core? i5 |
---|---|
Processormodel | i5-8500 |
Aantal processorkernen | 6 |
Frequentie van processor | 3 GHz |
Systeembus | 8 GT/s |
ECC ondersteund door processor | Nee |
Tjunction | 100 °C |
Processor aantal threads | 6 |
Processor operating modes | 64-bit |
Processor lithografie | 14 nm |
Processor cache type | Smart Cache |
Schaalbaarheid | 1S |
Thermal Design Power (TDP) | 65 W |
PCI Express configuraties | 1x16, 1x8+2x4, 2x8 |
Verpakkingsgrootte processor | 37.5 x 37.5 mm |
Processor cache | 9 MB |
Bus type | DMI3 |
CPU configuratie (max) | 1 |
PCI Express slots versie | 3.0 |
Maximale turbofrequentie van processor | 4,1 GHz |
Codenaam processor | Coffee Lake |
Processor socket | LGA 1151 (Socket H4) |
Maximaal intern geheugen ondersteund door processor | 64 GB |
Geheugenbandbreedte ondersteund door de processor ( max) | 41,6 GB/s |
Conflictvrije processor | Ja |
ARK ID processor | 129939 |
Frequentie van processor | 3 GHz |
Conflictvrije processor | Ja |
Processorfabrikant | Intel |
Processorgeneratie | Intel® 8de generatie Core? i5 |
On-board graphics adapter model | Intel® UHD Graphics 630 |
Geheugen
Intern geheugen | 8 GB |
---|---|
Intern geheugentype | DDR4 |
Ondersteund maximum RAM | 64 GB |
Geheugenslots | 4 x DIMM |
Flash memory | 4000 MB |
Netwerk
Ethernet LAN, data-overdrachtsnelheden | 10,100,1000 Mbit/s |
---|---|
Ethernet LAN | Ja |
Wi-Fi | Nee |
DHCP client | Ja |
DHCP server | Ja |
Jumbo Frames ondersteuning | Ja |
iSCSI support | Ja |
Wake-on-LAN | Ja |
Ondersteunde netwerkprotocollen | TCP/IP, IPv4, IPv6 |
Verbindingsaggregatie | Ja |
Onbalanscontrolesysteem | Ja |
Dynamic DNS (DDNS) | Ja |
WLAN-adapter ondersteund | Ja |
Fouttolerantie | Ja |

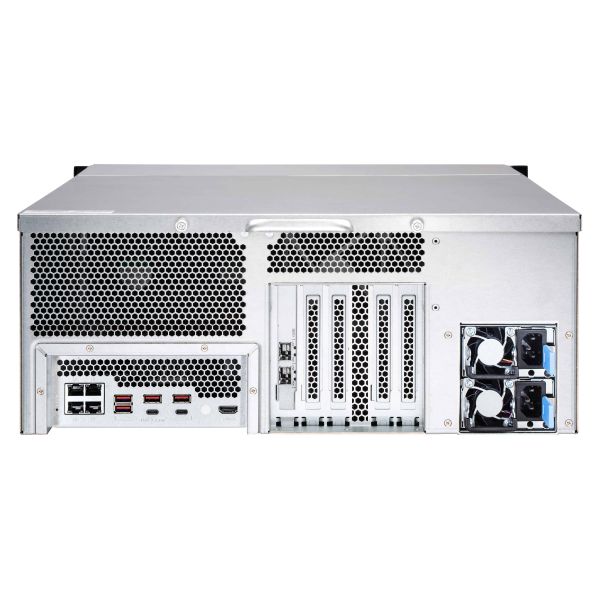

Poorten & interfaces
Aantal Ethernet LAN (RJ-45)-poorten | 4 |
---|---|
Fibre channel-poorten | 2 |
Vezel-optische connector | SFP+ |
Aantal HDMI-poorten | 1 |
HDMI versie | 2.0 |
USB-poort | Ja |
Aantal poorten USB 3.1 (3.1 Gen 2) Type A | 4 |
Aantal poorten USB 3.1 (3.1 Gen 2) Type C | 2 |
Aantal poorten USB 3.2 Gen 2 (3.1 Gen 2) Type A | 4 |
Aantal poorten USB 3.2 Gen 2 (3.1 Gen 2) Type C | 2 |
USB-poort | Ja |
Processor speciale functies
Thermal Monitoring Technologies | Ja |
---|---|
Intel® InTru™ 3D Technology | Ja |
Intel® Clear Video-technologie | Ja |
Enhanced Intel SpeedStep Technology | Ja |
Intel® Stable Image Platform Program (SIPP) | Ja |
Maximaal aantal PCI Express-lijnen | 16 |
Idle States | Ja |
Intel® Secure Key | Ja |
Execute Disable Bit | Ja |
Ingebouwde opties beschikbaar | Ja |
Intel® Quick Sync Video Technology | Ja |
Versie Intel® TSX-NI | 1,00 |
Intel® Virtualization Technology for Directed I/O (VT-d) | Ja |
Intel® AES New Instructions (Intel® AES-NI) | Ja |
Versie Intel® Secure Key Technology | 1,00 |
Intel® Turbo Boost Technology | 2.0 |
Intel® Clear Video Technology for Mobile Internet Devices (Intel® CVT for MID) | Ja |
Versie Intel® Identity Protection Technology | 1,00 |
Intel® Hyper Threading Technology (Intel® HT Technology) | Nee |
Intel® Virtualization Technology (VT-x) | Ja |
Intel® TSX-NI | Ja |
Versie Intel® Stable Image Platform Program (SIPP) | 1,00 |
Intel® OS Guard | Ja |
Intel® Enhanced Halt State | Ja |
Intel® Trusted Execution Technology | Ja |
Intel® VT-x with Extended Page Tables (EPT) | Ja |
Thermal solution specificatie | PCG 2015C |
Intel® 64 | Ja |
Intel® Identity Protection Technology (Intel® IPT) | Ja |
Intel® Clear Video HD Technology (Intel® CVT HD) | Ja |
Geheugenkanalen ondersteund door processor | Dual |
Geheugentypen ondersteund door processor | DDR4-SDRAM |
Intel® InTru? 3D Technology | Ja |
Inhoud van de verpakking
Snelle installatiehandleiding | Ja |
---|---|
Meegeleverde kabels | AC, LAN (RJ-45) |
Aantal schroeven | 192 |
Grafisch
On-board graphics adapter model | Intel® UHD Graphics 630 |
---|---|
On-board grafische adapter ID | 0x3E92 |
On-board grafische adapter OpenGL versie | 4.5 |
On-board grafische adapter DirectX-versie | 12.0 |
Graphics on-board -adapter dynamische frequentie (max) | 1100 MHz |
On-board graphics card base frequency | 350 MHz |
Maximaal geheugen ingebouwde grafische adapter | 64 GB |
Aantal displays ondersteund door on-board grafische adapter | 3 |
Prestatie
Soort | NAS |
---|---|
Backup-functie | Ja |
Back-up-eigenschappen | iSCSI LUN |
Ondersteunt meerdere talen | Ja |
Geluidsniveau | 36,3 dB |
Inclusief besturingssysteem | QNAP Turbo System |
Aan/uitschakelaar | Ja |
Access Control List (ACL) | Ja |
Beheerprotocollen | SNMP 2/3 |
Reset button | Ja |
Ondersteunde beveiligingsalgoritmen | 256-bit AES, FIPS 140-2, HTTPS, SSH, SSL/TLS |
Web-gebaseerd management | Ja |
Ondersteunt Windows | Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterpr |
Ondersteunt Linux | Ja |
Ondersteunt Mac-besturingssysteem | Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks |
Ondersteunde server operating systems | Windows Server 2003, Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016 |
S.M.A.R.T. support | Ja |
Ondersteunde browser | Apple Safari 7, Google Chrome, Microsoft Internet Explorer 10, Mozilla Firefox |
Ingebouwde ftp-server | Ja |
Ingebouwde iTunes-server | Ja |
Gedeelde map | CIFS/SMB |
Hot-spare | Ja |
Systeemlog | Ja |
Toegangsrechtenbeheer voor gedeelde mappen | Ja |
Universal Plug and Play ( UPnP ) | Ja |
Snap shot | Ja |
Energie
Capaciteit voedingsunit (PSU) | 800 W |
---|---|
Aantal voedingen | 2 |
Redundante voeding | Ja |
Stroomverbruik | 171,29 W |
AC invoer voltage | 100 - 240 V |
Fan voltage | 12 V |
Gewicht en omvang
Breedte | 481 mm |
---|---|
Diepte | 672 mm |
Hoogte | 176,2 mm |
Gewicht | 20,7 kg |
Gewicht pakket | 28,6 kg |
Eisen aan de omgeving
Temperatuur, in bedrijf | 0 - 40 °C |
---|---|
Relatieve luchtvochtigheid, in bedrijf | 5 - 95 procent |
Certificaten
DLNA-gecertificeerd | Ja |
---|
Overige specificaties
Digital Living Network Alliance (DLNA) gecertifieerd | Ja |
---|
