ICY BOX IB-1817M-C31 SDD-behuizing Grijs M.2
Keep it cool
The patented cooling plate transfers the resulting heat from the SSD to the housing and cools the SSD optimally. This prevents the early reduction of the transfer rate to protect from overheating. With the IB-1817M-C31, data can be sent permanently from A to B at a maximum transfer rate of up to 10 Gbit/s.
Time is valuable
The IB-1817M-C31 is compatible with M.2 cards of 30, 42, 60 and 80 mm length, operating system-independent and suitable for a variety of applications such as high-speed storage, cloning a drive or running a mobile operating system. All this happens with a data transfer rate with up to 1000 Mb per second. Compared to data transfer with a SATA drive, a data volume of 50 gigabytes is now transferred in 50 seconds instead of 1:36 minutes.
Click - Safe
With the IB-1817M-C31, sensitive data on the installed M.2 SSD can be protected from changes by a simple switch. The write protection switch can be moved to the desired position using the supplied mini tool and a small hand movement. Click - safe.
The patented cooling plate transfers the resulting heat from the SSD to the housing and cools the SSD optimally. This prevents the early reduction of the transfer rate to protect from overheating. With the IB-1817M-C31, data can be sent permanently from A to B at a maximum transfer rate of up to 10 Gbit/s.
Time is valuable
The IB-1817M-C31 is compatible with M.2 cards of 30, 42, 60 and 80 mm length, operating system-independent and suitable for a variety of applications such as high-speed storage, cloning a drive or running a mobile operating system. All this happens with a data transfer rate with up to 1000 Mb per second. Compared to data transfer with a SATA drive, a data volume of 50 gigabytes is now transferred in 50 seconds instead of 1:36 minutes.
Click - Safe
With the IB-1817M-C31, sensitive data on the installed M.2 SSD can be protected from changes by a simple switch. The write protection switch can be moved to the desired position using the supplied mini tool and a small hand movement. Click - safe.
- ROBUST: A special aluminium alloy makes this enclosure very stable and protects it from external damage. Excellent heat dissipation is achieved through an elegant cooling fin design
- VERSATILE: All common lengths of NVMe SSDs are supported by the enclosure (22x30/42/60/80). So you don't have to rely on just one length, but can decide variably
- VERY FAST: USB 3.1 (Gen 2) enables transfer rates of up to 10 Gbit/s. Your data is transferred super fast. So your data is transferred super fast. This case can also be used for a mobile operating system
- COOLING: The heat inside the heat sink is ideally conducted to the outside of the enclosure via the heat sink and the silicone heat pad. This keeps the NVMe SSD cool even under full load

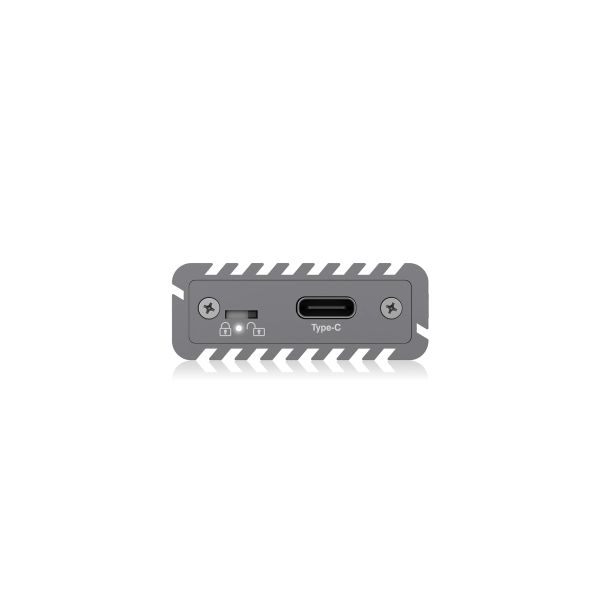

- SAFE: The enclosure has a write protection switch on the front. This ensures that data can be read, but it is not possible to change it
Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.
Specificaties
Opslagmedia
Aantal storage drives ondersteund*
1
Opslag schijfgrootte*
M.2
Ondersteunde opslagstationinterfaces*
PCI Express 3.0
Ondersteunde storage drive hoogten
22 mm
Ondersteunde lengtes van opslagschijven
30,42,60,80 mm
NVMe
Ja
Poorten & interfaces
USB-aansluiting*
Ja
USB-versie
3.2 Gen 2 (3.1 Gen 2)
USB-connectortype
USB Type-C
Geslacht USB-connector
Vrouwelijk
Aantal USB-aansluitingen
1
Design
Type product*
SDD-behuizing
Kleur van het product*
Grijs
Materiaal
Aluminium
LED-indicatoren
Ja
Prestatie
Overdrachtssnelheid
10 Gbit/s
Chipset
JMS583
Plug and play
Ja
Land van herkomst
China
Energie
Type stroombron
USB
Minimale systeemeisen
Ondersteunt Windows
Ja
Mac-compatibiliteit
Ja
Ondersteunt Mac-besturingssysteem
Ja
Gewicht en omvang
Breedte
40 mm
Diepte
105 mm
Hoogte
15 mm
Gewicht
100 g
Snoerlengte
0,2 m
Breedte verpakking
100 mm
Diepte verpakking
25 mm
Hoogte verpakking
200 mm
Gewicht verpakking
205 g
Inhoud van de verpakking
Meegeleverde kabels
USB Type-a naar USB Type-C, USB Type-C naar USB Type-C
Inclusief schroeven
Ja
Inclusief schroevendraaier
Ja
Snelle installatiehandleiding
Ja
Logistieke gegevens
Code geharmoniseerd systeem (HS)
84733080
