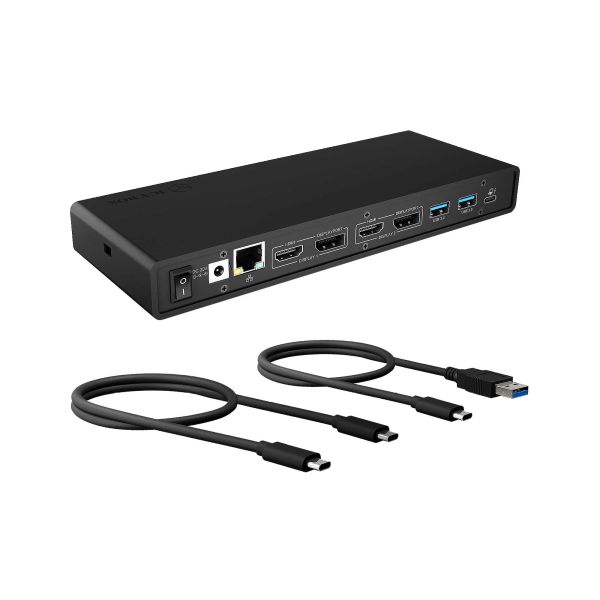

ICY BOX IB-DK2245AC Bedraad USB 3.2 Gen 1 (3.1 Gen 1) Type-C Zwart
ICY BOX IB-DK2245AC, Bedraad, USB 3.2 Gen 1 (3.1 Gen 1) Type-C, 65 W, 3,5 mm, 10,100,1000 Mbit/s, Zwart
Ruim op voorraad
Fabrikant
RaidSonic
MPN
IB-DK2245AC
EAN
4250078170006
€ 239,00
excl. BTW
(€ 289,19 incl. BTW)
ICY BOX IB-DK2245AC Bedraad USB 3.2 Gen 1 (3.1 Gen 1) Type-C Zwart
High resolution
The IB-DK2245AC is equipped with four display video outputs. With triple Ultra HD displays simultaneously, the DockingStation allows you to split up the content to three display devices when the system supports the function, to mirror your primary screen, or extend the computer's desktop allowing visibility of more applications at the same time. It supports a resolution of up to 4096x2160@60 Hz for two monitors or one single 5K@60 Hz display with two cables connected via DisplayPort™ and fulfills your high resolution desires.
Big flexibility
This high-performance DockingStation can be used with both current Windows® and macOS® operating systems. Thus, the IB-DK2245AC is the perfect companion for eager travelers, business, and multimedia enthusiasts who want to be prepared for all environments.
One port
Notebooks and other mobile computers are becoming thinner and smaller. This is usually at the expense of connectivity - even the widely used RJ45 LAN port or multiple USB ports are often omitted, as are video connections, which are required by many display devices. The IB-DK2245AC offers a large selection of ports and can eliminate this lack permanently.
The IB-DK2245AC is equipped with four display video outputs. With triple Ultra HD displays simultaneously, the DockingStation allows you to split up the content to three display devices when the system supports the function, to mirror your primary screen, or extend the computer's desktop allowing visibility of more applications at the same time. It supports a resolution of up to 4096x2160@60 Hz for two monitors or one single 5K@60 Hz display with two cables connected via DisplayPort™ and fulfills your high resolution desires.
Big flexibility
This high-performance DockingStation can be used with both current Windows® and macOS® operating systems. Thus, the IB-DK2245AC is the perfect companion for eager travelers, business, and multimedia enthusiasts who want to be prepared for all environments.
One port
Notebooks and other mobile computers are becoming thinner and smaller. This is usually at the expense of connectivity - even the widely used RJ45 LAN port or multiple USB ports are often omitted, as are video connections, which are required by many display devices. The IB-DK2245AC offers a large selection of ports and can eliminate this lack permanently.
- ATTENTION: DisplayLink driver must be installed before use. Display and connection expansion is provided by DisplayLink video compression technology
- POWER DELIVERY: It is possible to charge the host computer on the move thanks to Power Delivery (65 W), as long as the external power supply is connected to the docking station. This saves space, as only one power supply unit needs to be taken along

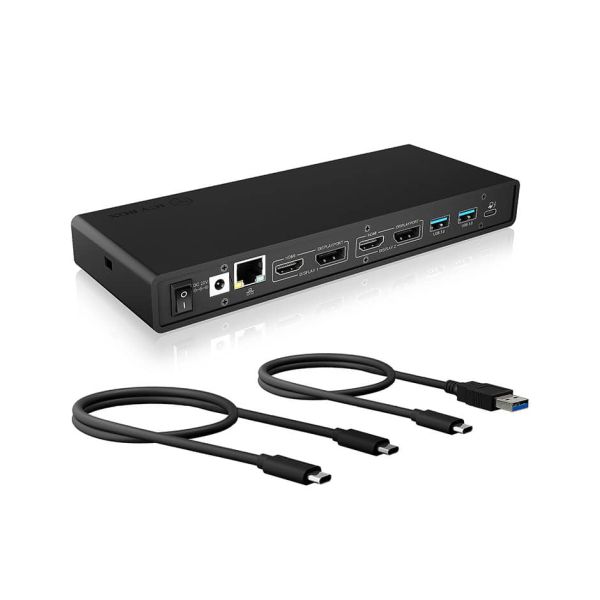

- ADAPTER: The docking station comes with two different USB cables. The user can then decide whether a USB Type-C cable is used or a USB Type-A cable (power delivery only via the Type-C interface)
- VIDEO RESOLUTION: It is possible to use two monitors with a resolution of up to 4096x2160@60 Hz. If you only want to use one monitor, you get a resolution of up to 5120x2880@60 Hz (when using two DP 1.2 cables)
- USB: The docking station has two USB Type-A and Type-C ports on the front, with which a transfer rate of up to 5 Gbit/s is possible. Two more Type-A ports are available at the rear
Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.
Specificaties
Poorten & interfaces
Connectiviteitstechnologie*
Bedraad
Hostinterface*
USB 3.2 Gen 1 (3.1 Gen 1) Type-C
Aantal poorten USB 3.2 Gen 1 (3.1 Gen 1) Type A*
4
Aantal poortenUSB 3.2 Gen 1 (3.1 Gen 1) Type C
2
USB Power Delivery
Ja
USB Power Delivery tot max.
65 W
Aantal HDMI-poorten*
2
Aantal DisplayPorts
2
DisplayPort versie
1.2
Microfoon, line-in ingang*
Ja
Combo koptelefoon/microfoon port
Nee
Hoofdtelefoonuitgangen*
1
Type aansluitplug
3,5 mm
Lijningang
Ja
Lijnuitgang
Ja
Aansluiting voor netstroomadapter
Ja
Netwerk
Ethernet LAN*
Ja
Aantal Ethernet LAN (RJ-45)-poorten
1
Ethernet LAN, data-overdrachtsnelheden
10,100,1000 Mbit/s
Wake-on-LAN
Ja
Prestatie
Geïntegreerde geheugenkaartlezer*
Nee
Overdrachtssnelheid
5 Gbit/s
HD type
5K Ultra HD
Resolutie (maximum digitaal)
5120 x 2880 Pixels
Maximale refresh snelheid
60 Hz
Bevestigingsmogelijkheid voor kabelslot
Ja
Kabelslot sleuf type
Kensington
Kleur van het product*
Zwart
Aan/uitschakelaar
Ja
Materiaal behuizing
Acrylonitrielbutadieenstyreen (ABS), Polycarbonaat (PC)
Land van herkomst
China
Energie
Type stroombron
DC
AC-ingangsspanning
100 - 240 V
AC-ingangsfrequentie
50 - 60 Hz
Stroom
2 A
Netvoeding
100 W
Spanning
20 V
Output current
5 A
Software
Ondersteunt Windows
Ja
Ondersteunt Mac-besturingssysteem
Ja
Gewicht en omvang
Breedte
83 mm
Diepte
224 mm
Hoogte
26 mm
Gewicht
342 g
Verpakking
Breedte verpakking
100 mm
Diepte verpakking
270 mm
Hoogte verpakking
135 mm
Gewicht verpakking
1,28 kg
Inhoud van de verpakking
Meegeleverde kabels
AC, USB Type-a naar USB Type-C, USB Type-C naar USB Type-C
Inclusief AC-adapter
Ja
Gebruikershandleiding
Ja
Logistieke gegevens
Hoeveelheid per (buitenste) hoofdverpakking
10 stuk(s)
(Buitenste) hoofdverpakking breedte
285 mm
(Buitenste) hoofdverpakking lengte
520 mm
(Buitenste) hoofdverpakking hoogte
300 mm
(Buitenste) hoofdverpakking brutogewicht
13,6 kg
