ICY BOX IB-DK2262AC Bedraad USB 3.2 Gen 1 (3.1 Gen 1) Type-C Antraciet

ICY BOX IB-DK2262AC, Bedraad, USB 3.2 Gen 1 (3.1 Gen 1) Type-C, 55 W, 10,100,1000 Mbit/s, Antraciet, MicroSD (TransFlash), SD

Ruim op voorraad

Fabrikant RaidSonic
MPN IB-DK2262AC
EAN 4250078171911
€ 197,00 excl. BTW

ICY BOX IB-DK2262AC Bedraad USB 3.2 Gen 1 (3.1 Gen 1) Type-C Antraciet

Rugged aluminium design
The IB-DK2262AC's solid housing is made of strong aluminium alloy, which makes this housing more durable than ordinary aluminium or plastic products, effectively protecting the DockingStation and equipping it for a wide range of use conditions. The aluminium material and the heat sink design with cooling fins support heat dissipation for an excellent passive cooling effect and protect the unit from overheating even under heavy use.

Triple video output
The IB-DK2262AC provides up to three video interfaces of different resolutions with two HDMI® and one VGA connection, enabling the simultaneous connection of HDMI® and VGA display devices in expansion mode. This is achieved by combining state-of-the-art technologies such as DisplayLink® and DisplayPort™ Alt Mode.

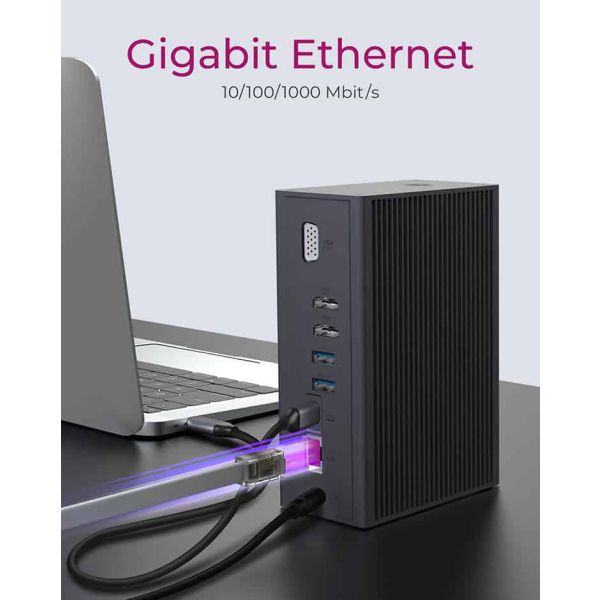

LAN port – fast and safe
Wireless devices are certainly more convenient and good to use in many situations, and yet there are better options if you need high data transfer rates, for example. In addition, wired connections are more secure than wireless connections. Especially if you don‘t want to or can‘t fully exploit the security measures available via WLAN, LAN connections offer less risk. Then an Ethernet interface is the best way to transfer files between devices with high security and maximum transfer rate.
  • ATTENTION: DisplayLink driver must be installed before use. Display and connection expansion is provided by DisplayLink video compression technology
  • CONNECTIVITY: The USB-C docking station combines 16 ports in one connector, including 1 x USB-C 3.0 (5 Gbps ), 1 x USB-C 3.0 (5 Gbps data and charging only) and 6 x USB-A
  • TRIPLE DISPLAY: Triple video output is supported and is done through Displaylink and DisplayPort Alt Mode technologies. The resolutions 2x 2K@60 Hz and 1x 4K@60 Hz are supported
  • COMPATIBILITY: The new Displaylink driver must be installed before use. The 4K@60 HDMI 2 port and VGA port are compatible with the USB 3.0 Type C port
  • POWER DELIVERY: The PD charging function allows you to charge your laptop or Macbook via the USB-C port up to 55W. You can also connect your mouse and keyboard to the USB 2.0 ports

Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.

Specificaties

Poorten & interfaces

Connectiviteitstechnologie*
Bedraad
Hostinterface*
USB 3.2 Gen 1 (3.1 Gen 1) Type-C
Aantal USB 2.0-poorten*
3
Aantal poorten USB 3.2 Gen 1 (3.1 Gen 1) Type A*
3
Aantal poortenUSB 3.2 Gen 1 (3.1 Gen 1) Type C
2
USB Power Delivery
Ja
USB Power Delivery tot max.
55 W
Aantal HDMI-poorten*
1
VGA (D-Sub)poort(en)
1
Microfoon, line-in ingang*
Nee
Combo koptelefoon/microfoon port
Ja
Hoofdtelefoonuitgangen*
1
Aansluiting voor netstroomadapter
Ja

Netwerk

Ethernet LAN*
Ja
Aantal Ethernet LAN (RJ-45)-poorten
1
Ethernet LAN, data-overdrachtsnelheden
10,100,1000 Mbit/s

Prestatie

Geïntegreerde geheugenkaartlezer*
Ja
Compatibele geheugenkaarten
MicroSD (TransFlash), SD
HD type
4K Ultra HD
Resolutie (maximum digitaal)
3840 x 2160 Pixels
Resolutie (maximum analoog)
1920 x 1080 Pixels
Aantal displays ondersteund
3
Maximale refresh snelheid
60 Hz
Kleur van het product*
Antraciet
LED-indicatoren
Stroom
Materiaal behuizing
Aluminium
Land van herkomst
China

Energie

Type stroombron
AC
AC-ingangsspanning
100-240 V
AC-ingangsfrequentie
50 - 60 Hz
Netvoeding
65 W
Spanning
20 V
Output current
3,25 A

Software

Ondersteunt Windows
Windows 10, Windows 11, Windows 8
Ondersteunt Mac-besturingssysteem
Ja
Andere ondersteundende systemen
ChromeOS

Gewicht en omvang

Breedte
50 mm
Diepte
140 mm
Hoogte
103 mm
Gewicht
480 g

Verpakking

Aantal per verpakking
1 stuk(s)
Gewicht verpakking
1,19 kg

Inhoud van de verpakking

Meegeleverde kabels
AC, USB Type-C naar USB Type-C
Inclusief AC-adapter
Ja
Gebruikershandleiding
Ja

Logistieke gegevens

Hoeveelheid per (buitenste) hoofdverpakking
12 stuk(s)
(Buitenste) hoofdverpakking breedte
210 mm
(Buitenste) hoofdverpakking lengte
350 mm
(Buitenste) hoofdverpakking hoogte
455 mm
(Buitenste) hoofdverpakking brutogewicht
14,3 kg
Code geharmoniseerd systeem (HS)
84733020
