ICY BOX IB-RD3621U3 HDD-/SSD-behuizing Zwart 3.5

ICY BOX IB-RD3621U3, HDD-/SSD-behuizing, 3.5", SATA, SATA II, SATA III, 5 Gbit/s, Hot-swap, Zwart

Ruim op voorraad

Fabrikant RaidSonic
MPN IB-RD3621U3
EAN 4250078163862
€ 83,00 excl. BTW

ICY BOX IB-RD3621U3 HDD-/SSD-behuizing Zwart 3.5

A RAID for any case

The use of two hard as a RAID array is popular and well spread thanks to many advantages. But whoever wants to take this advantage, often can not do it due to the fact that not every motherboard is equipped with a RAID controller and laptops usually fall per-se outside the scope of possibilities. That is where the ICY BOX IB-RD3621U3 comes to help and converts two 3.5" SATA hard disks effectively to a high-performance RAID array. The exchange of HDDs is made easy thanks to EasySwap.

The given choices are Single, RAID 0, LARGE and RAID 1. So either higher speed data transmission, data mirroring for more reliability, a detection of the HDDs as individual drives or both HDDs are displayed as one huge drive. RAID 0 is particularly interesting, fueled by the modern USB 3.0 port - here the transfer rates reach up to 5 Gb per second. The hard disks are honored with a longer life span due to the lower operating temperatures because a 6 cm fan is actively assuring enough cool air.

Have the pleasure - twice!

Two hard disks in the form factor 3.5" fit into this RAID enclosure. Available RAID modes are single, RAID 0, 1 and LARGE. So that this candidate is beautifully versatile and is prepared for any situation.

Name is program

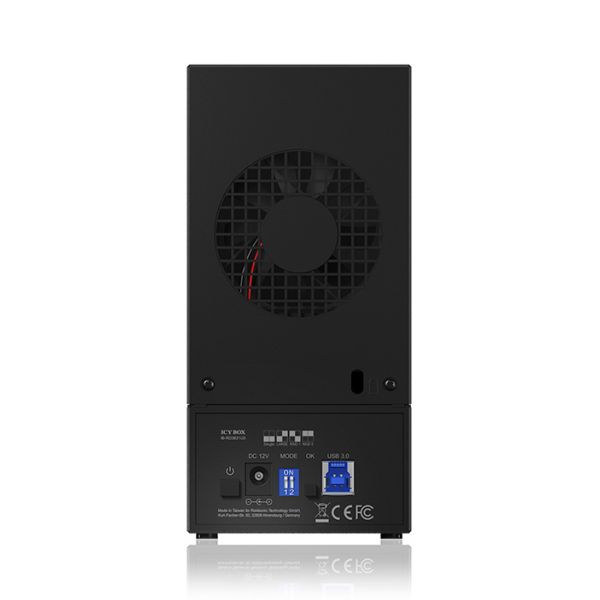

The IB-RD3621U3 is made of light plastic. Since raiding is very heavy on the HDDs a lot of heat is produces, the fan on the back of the enclosure is capable of cooling the HDDs very well.

Energy effecient

Thanks to the On/Off switch, the IB-RD3621U3 is a true energy saver. What is likewise well controlled are rapid data transfer via USB 3.0 connection. If desired, the hard disks are very easy to replace thanks to HotSwap and plug & play.

Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.

Specificaties

Opslagmedia

Aantal storage drives ondersteund*
2
Opslag schijfgrootte*
3.5"
Ondersteunde opslagstationinterfaces*
SATA, SATA II, SATA III
Soorten RAID
0, 1
Hot-swap
Ja

Poorten & interfaces

USB-aansluiting*
Ja
USB-versie
3.2 Gen 1 (3.1 Gen 1)
USB-connectortype
USB Type-B
Geslacht USB-connector
Vrouwelijk
Aantal USB-aansluitingen
1
Aansluiting voor netstroomadapter
Ja

Design

Type product*
HDD-/SSD-behuizing
Kleur van het product*
Zwart
Materiaal
Kunststof
LED-indicatoren
HDD, Stroom
Aantal ventilatoren
1 ventilator(en)
Ventilator diameter
6 cm

Prestatie

Overdrachtssnelheid
5 Gbit/s
Chipset
JMS562
UASP-ondersteuning
Ja
Plug and play
Ja
Land van herkomst
Taiwan

Energie

Type stroombron
DC
Externe adapter
Ja
AC-adapter ingangsspanning
100 - 240 V

Energie

Ingangsstroom AC-adapter
1,2 A
AC-adapter, uitgangsspanning
12 V
AC-adapter, uitgangsstroom
3 A

Minimale systeemeisen

Ondersteunt Windows
Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 Pro, Windows 10 Pro x64, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64
Ondersteunt Mac-besturingssysteem
Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.5 Leopard, Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks

Gewicht en omvang

Breedte
145 mm
Diepte
82 mm
Hoogte
173 mm
Gewicht
684 g
Breedte verpakking
100 mm
Diepte verpakking
248 mm
Hoogte verpakking
248 mm
Gewicht verpakking
1,06 kg

Inhoud van de verpakking

Inclusief AC-adapter
Ja
Meegeleverde kabels
USB
Inclusief schroeven
Ja
Gebruikershandleiding
Ja

Logistieke gegevens

Code geharmoniseerd systeem (HS)
84733080
(Buitenste) hoofdverpakking breedte
520 mm
(Buitenste) hoofdverpakking lengte
520 mm
(Buitenste) hoofdverpakking hoogte
270 mm
(Buitenste) hoofdverpakking brutogewicht
1,06 kg
Hoeveelheid per (buitenste) hoofdverpakking
10 stuk(s)
